Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset GX, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale 700 Alloy Custom Butted Superlight Tubing / Tapered HT BB92 / 3.0" Tire clearance / Full Internal Cable Routing IDS SL dropouts for 12x148mm Boost
Suspension Fork
FOX 32 Float Rhythm Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer Reb. Adj. / Lockout / 120mm travel
Drivetrain
Rear Derailleur
SRAM GX / Eagle 12 Speed
Shift Levers
SRAM GX Trigger
Cassette
SRAM GX / XG1275 / 10-50 T
Crank
SRAM X1 1000 Eagle GXP Boost PF QF 168 / 32T
Bottom Bracket
SRAM GXP PF integrated / shell 41x89.5mm
Chain
SRAM CN GX Eagle
Wheels
Front Hub
Formula CL811 / 15x110mm
Rear Hub
Formula CL14811 / Boost 12x148mm / XD
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Maxxis Rekon / 2.80x27.5 / 60TPI Kevlar Bead TR Tubeless ready
Brakes
Brakes
Shimano Deore M6000 Disc 180/F and 160/R mm SM-RT64 CL Rotor
Cockpit
Stem
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
Handlebar
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 740mm Syncros Pro lock-on grips
Headset
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros XM2.0 / CROM rails
Seatpost
Syncros Dropper 2.0 Remote 31.6mm / 120mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.48 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 675 mm | 700 | 726 mm | 752 mm |
| Rake | 40 mm | 40 mm | 39 mm | 39 mm |
| Trail | 111 mm | 111 mm | 112 mm | 112 mm |
| Stack | 614 mm | 619 mm | 628 mm | 638 mm |
| Reach | 396 mm | 419 mm | 442 mm | 464 mm |
| Top Tube Length | 584 mm | 609 mm | 634 mm | 659 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1115 mm | 1140 mm | 1166 mm | 1192 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 787 mm | 813 mm | 836 mm | 864 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

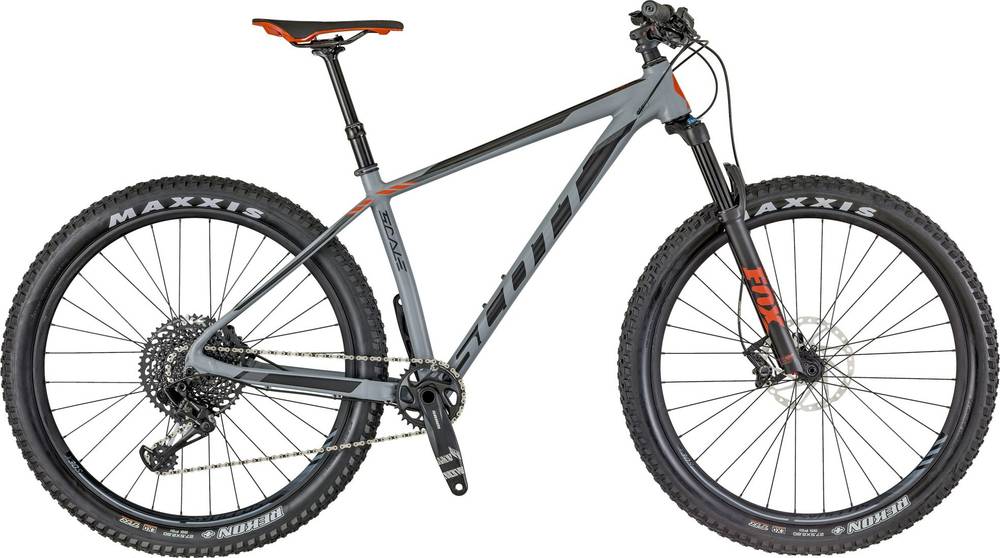

Scale 710 completes the Scott Scale model. Scott launched 183 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Scale 710 weighs 12.2 kg (26.9 lbs) and is a bit lighter than the average. In conclusion, the average Trail bike weighs 6.39% more than Scale 710.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Scale 710 components
Fork
The Scale 710 comes factory-installed with the Fox Rhythm Float 32 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Scott Scale 710 2018, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Scale 710 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Scale 710 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Scale 710. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
