Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset NX, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale 3 Carbon / IMP technology / HMF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
Suspension Fork
RockShox Judy Silver TK Solo Air 15x110mm QR axle / Tapered Steerer / Reb. Adj. Lockout / 100mm travel
Drivetrain
Rear Derailleur
SRAM NX / Eagle 12 Speed
Shift Levers
SRAM NX Eagle Trigger
Cassette
SRAM NX / XG1230 / 11-50 T
Crank
SRAM NX Eagle DUB Boost 32T
Bottom Bracket
SRAM DUB PF integrated / shell 41x92mm
Chain
SRAM CN NX Eagle
Wheels
Front Hub
Shimano HB-MT400-B CL / 15x110mm
Rear Hub
Shimano FH-MT400-B CL / Boost 12x148mm
Rims
Syncros X-25 / 32H / 25mm Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Maxxis Rekon Race / 2.25" / 60TPI
Brakes
Brakes
Shimano MT200 Disc 180/F and 160/R mm SM-RT54 CL Rotor
Cockpit
Stem
Syncros 6061 Alloy oversized 31.8mm / 1 1/8" / 6° angle
Handlebar
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 720mm Syncros Pro lock-on grips
Headset
Syncros Pro Drop in / Tapered 1.5"-1 1/8" bearing diameter size 42mm and 52mm
Seat
Saddle
Syncros XR2.5
Seatpost
Syncros / 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.42 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 658 mm | 683 mm | 709 mm | 735 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 83.9 mm | 83.9 mm | 83.9 mm | 83.9 mm |
| Stack | 606 mm | 610.6 mm | 624.7 mm | 634.1 mm |
| Reach | 405.7 mm | 429.3 mm | 450.2 mm | 472.5 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1083 mm | 1108 mm | 1134 mm | 1160 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 750 mm | 781 mm | 807 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

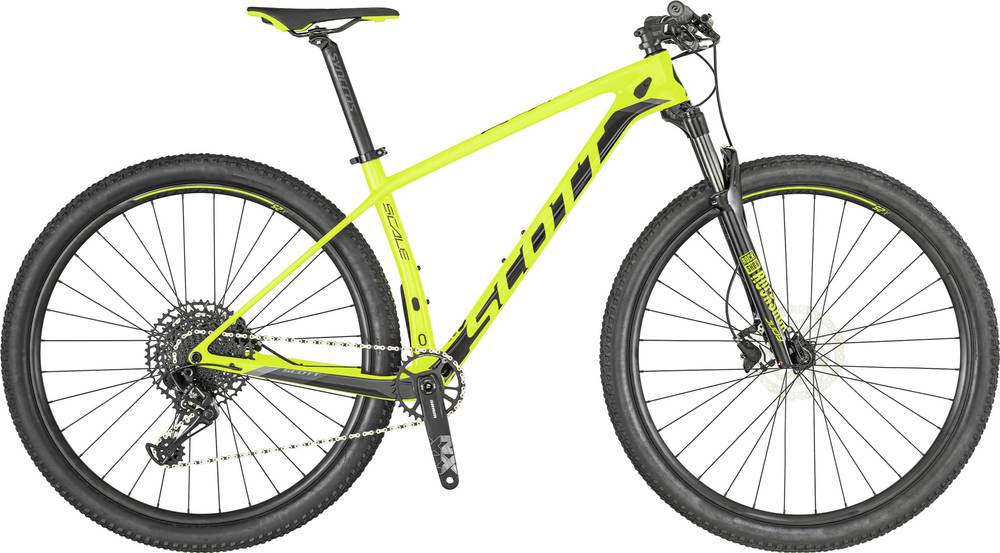

Model Overview
Scale 940 is a Scott Scale model. There are 183 bikes that carry this model name. You can easily view all of the Scott Scale bikes models from 2019, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Scott Scale 940 it’s weighing 12.1 kg (26.68 lbs). At this weight, is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 2.48% more than Scale 940.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Scale 940 components
Fork
The Scale 940 comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Scale 940 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Scale 940 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
