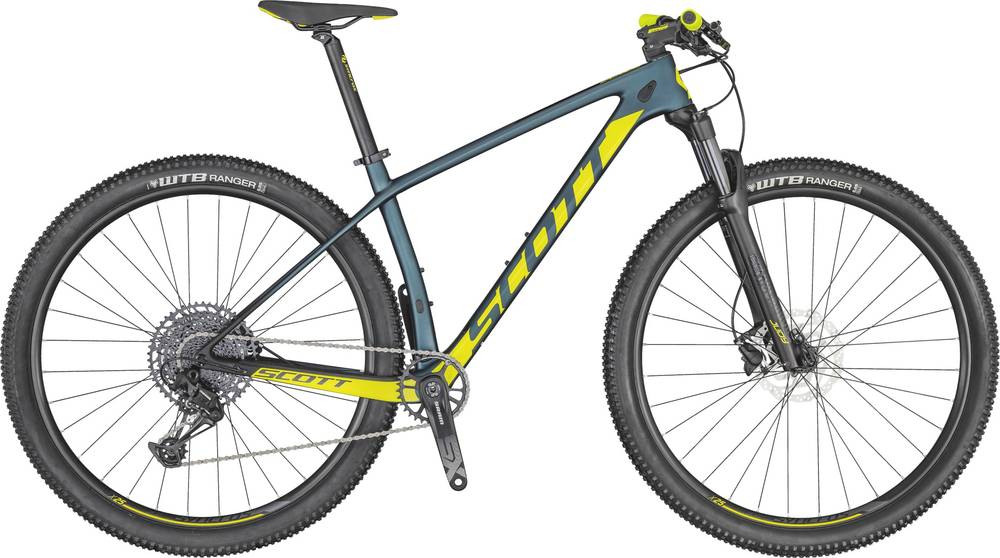

Scott Scale 940 2020
2020 Mountain
Estimate price |
1,599$
Weight | 12.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale 3 Carbon / IMP technology / HMF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
Suspension Fork
RockShox Judy Silver TK Solo Air 15x110mm QR axle / Tapered Steerer / Reb. Adj. Lockout / 100mm travel
Drivetrain
Rear Derailleur
SRAM SX / Eagle 12 Speed
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM SX-PG1210 / 11-50 T
Crank
SRAM SX Eagle DUB Boost 32T
Bottom Bracket
SRAM DUB PF integrated / shell 41x92mm
Chain
SRAM CN SX Eagle
Wheels
Front Hub
Shimano HB-MT400-B CL / 15x110mm
Rear Hub
Shimano FH-MT400-B CL / Boost 12x148mm
Rims
Syncros X-25 / 32H / 25mm
Spokes
Stainless Black 15G / 1.8mm
Tires
WTB Ranger / 2.25" / 27TPI
Brakes
Brakes
Shimano MT200 Disc 180/F and 160/R SM-RT10 CL rotor
Cockpit
Stem
Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle
Handlebar
Syncros Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Headset
Syncros Pro Drop in / Tapered 1.5"-1 1/8" Bearing diameter size 42mm and 52mm
Seat
Saddle
Syncros Belcarra Regular 2.5
Seatpost
Syncros / 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.42 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 658 mm | 683 mm | 709 mm | 735 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 83.9 mm | 83.9 mm | 83.9 mm | 83.9 mm |
| Stack | 606 mm | 610.6 mm | 624.7 mm | 634.1 mm |
| Reach | 405.7 mm | 429.3 mm | 450.2 mm | 472.5 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1083 mm | 1108 mm | 1134 mm | 1160 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 750 mm | 781 mm | 807 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Scale 940 completes the Scott Scale model. Scott launched 183 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Scott Scale 16 2020 is the most affordable bike of this model and has a price of 299$. On the other hand, Scott Scale RC 900 World Cup AXS 2020, is the most expensive and costs 6799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 1599$. Doing a quick comparison, we notice that Scale 940 price is 19.14% lower than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.3 kg (27.12 lbs), Scott bike is slightly lighter than average. To sum up, it’s 0.81% lighter than the average weight of Crosscountry bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the RockShox Judy Silver TK fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Scale 940 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Scale 940 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Scale 940 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
