Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale Alloy 6061 Custom Butted Tubing Tapered HT / BB92 / Bridgeless Seatstays Internal Cable Routing / replaceable hanger
Suspension Fork
Rock Shox 30 Silver TK Solo Air Tapered Steerer / Reb. Adj. Remote Lockout / 100mm travel
Drivetrain
Rear Derailleur
Shimano SLX RD-M7000-10 SGS Shadow Plus / 20 Speed
Front Derailleur
Shimano Deore FD-M6025-H / 34.9
Shift Levers
Shimano Deore SL-M6000 / Rapidfire plus 2 way release
Cassette
Shimano CS-HG50-10 / 11-36 T
Crank
Shimano FC-MT500-10 36x26 T
Bottom Bracket
Shimano BB-MT500-PA / shell 41x89.5mm
Chain
KMC X10
Pedals
Wellgo M-21
Wheels
Front Hub
Formula CL51
Rear Hub
Shimano FH-RM35 CL
Rims
Syncros X-20 / 32H
Spokes
Stainless Black 15G / 1.8mm
Tires
Maxxis Ikon / 2.2 / 60TPI
Brakes
Brakes
Shimano M365 Disc 180/F and 160/Rmm SM-RT10 CL Rotor
Cockpit
Stem
Syncros 6061 Alloy oversize 31.8mm / 1 1/8" / 6° angle
Handlebar
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 720mm
Headset
Syncros OE Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros XR2.5
Seatpost
Syncros / 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 315.5 mm | 315.5 mm | 315.5 mm | 315.5 mm | 315.5 mm |
| Front Center | 659 mm | 684 mm | 710 mm | 735 mm | 756 mm |
| Rake | 59 mm | 59 mm | 59 mm | 59 mm | 59 mm |
| Trail | 85.2 mm | 85.2 mm | 85.2 mm | 85.2 mm | 85.2 mm |
| Stack | 586 mm | 586 mm | 595.4 mm | 604.7 mm | 614.1 mm |
| Reach | 389.2 mm | 414.2 mm | 436.4 mm | 458.7 mm | 475.9 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 645 mm | 665 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1085 mm | 1110 mm | 1136 mm | 1162 mm | 1183 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 745 mm | 774 mm | 786 mm | 819 mm | 857 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

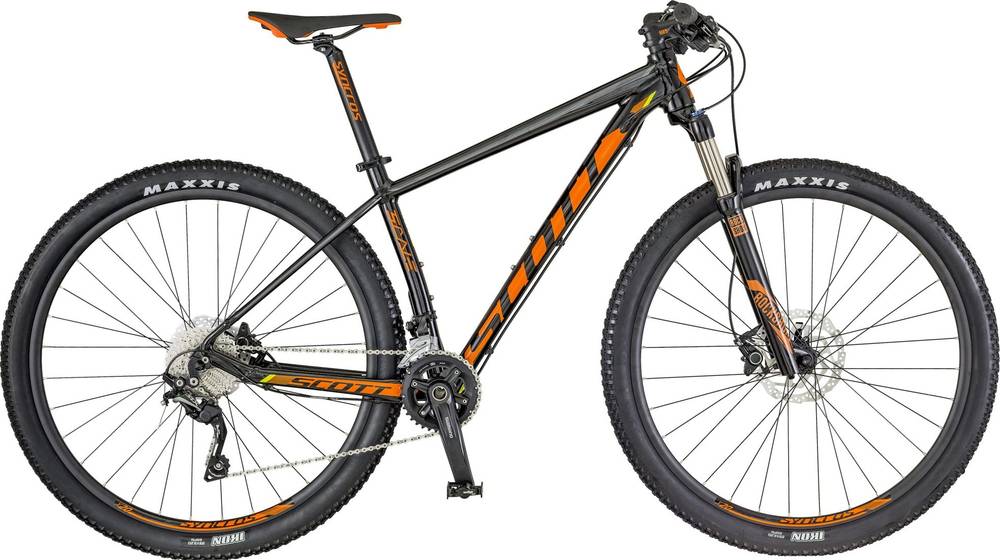

Scale 970 completes the Scott Scale model. 183 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Scale 970 weighs 12.9 kg (28.44 lbs) and is slightly heavier than the average. In conclusion, the average Crosscountry bike weighs 4.03% less than Scale 970.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Scale 970 components
Fork
Scott Scale 970 2018 bike is equipped with the RockShox 30 Silver TK fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Scale 970 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
