Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark 3 Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW DM dropouts for Boost 148x12mm TBC Trunnion box construction
Suspension Fork
FOX 34 Float Performance Elite Air FIT4 3-Modes with low speed adj. / 15x110mm QR axle tapered steerer / Reb. Adj. / Lockout / 120mm travel
Rear Shock
FOX NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout - Traction Control -Descend DPS / EVOL / Reb. Adj. Travel 120 - 85 - Lockout / 165X45mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 SGS DM / Shadow Plus / 22 Speed
Front Derailleur
Shimano XT FD-M8020-D / side swing
Shift Levers
Shimano XT SL-M8000-I / Rapidfire Plus 2 way release / Ispec 2 clamp
Cassette
Shimano XT CS-M8000 / 11-42 T
Crank
Shimano XT FC-M8000-B2 / Hollowtech 2 700 Series: 36x26 T / 900 Series: 34x24 T
Bottom Bracket
Shimano SM-BB71-41A / shell 41x92mm
Chain
Shimano CN-HG601
Wheels
Front Hub
Syncros XR2.0 CL / 15x110mm made by DT Swiss
Rear Hub
Syncros XR2.0 CL / Boost 148x12mm RWS axle / made by DT Swiss
Rims
Syncros XR2.0 / 28H / Tubeless ready
Spokes
DT Swiss Competition 2.0-1.8-2.0 Black
Tires
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx speed
Brakes
Brakes
Shimano XT M8000 Disc 180mm F & R / SM-RT64 CL Rotor
Cockpit
Stem
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
Handlebar
Syncros FL1.5 T-Bar / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Headset
Syncros FL2.0 Drop in / Tapered 1.5" - 1 1/8" bearing diameter size 42mm and 52mm
Seat
Saddle
Syncros XR1.5 / Titanium rails
Seatpost
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M, L & XL 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 325.5 mm | 325.5 mm | 325.5 mm |
| Front Center | 688 mm | 719 mm | 750 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 101.4 mm | 101.4 mm | 101.4 mm |
| Stack | 561.9 mm | 566.5 mm | 575.7 mm |
| Reach | 402.7 mm | 431.4 mm | 458.7 mm |
| Top Tube Length | 568 mm | 598 mm | 628 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1108 mm | 1138 mm | 1170 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm |
| Standover Height | 718 mm | 726 mm | 741 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

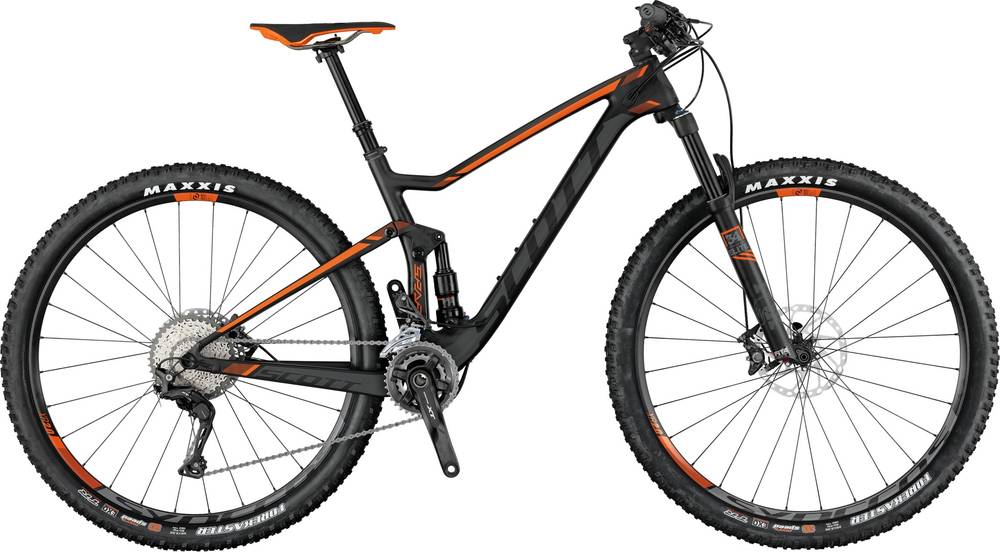

Spark 710 belongs to the Scott Spark model. There are 189 bikes that carry this model name. Take a sneak peek at all Scott Spark bikes models from 2017, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.2 kg (26.9 lbs), the Spark 710 model is a bit lighter than average. In other words, this model is 6.39% lighter than the average Trail bike.
Spark 710 components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX NUDE Trunnion SCOTT custom w. rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Spark 710 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Scott Spark 710 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
