Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark 3 Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 / DM hanger dropouts for 148x12mm
Suspension Fork
FOX 34 Float Performance Air Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer Reb. Adj. / Lockout / 120mm travel
Rear Shock
FOX NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout - Traction Control -Descend DPS / EVOL / Reb. Adj. Travel 120 - 85 - Lockout / 165X45mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 SGS DM / Shadow Plus / 22 Speed
Front Derailleur
Shimano XT FD-M8020-D / side swing
Shift Levers
Shimano XT SL-M8000-B-I / Rapidfire Plus 2 way releaseIspec 2 clamp
Cassette
Shimano SLX CS-M7000 / 11-42 T
Crank
Shimano XT FC-M8000-B2 / Hollowtech 2 700 Series: 36x26 T / 900 Series: 34x24 T
Bottom Bracket
Shimano BB-MT500-PA / shell 41x92mm
Chain
KMC X11L
Wheels
Front Hub
Shimano HB-M618-B CL / 15x110mm
Rear Hub
Shimano FH-M618-B CL / Boost 12x148mm RWS axle
Rims
Syncros X-23 / 32H / Tubeless ready
Spokes
DT Swiss Champion Black 1.8mm
Tires
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx speed
Brakes
Brakes
Shimano M615 Disc 180mm F & R / SM-RT64 CL Rotor
Cockpit
Stem
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
Handlebar
Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Headset
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros XR2.0 / CROM rails
Seatpost
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M, L & XL 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 325.5 mm | 325.5 mm | 325.5 mm |
| Front Center | 688 mm | 719 mm | 750 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 101.4 mm | 101.4 mm | 101.4 mm |
| Stack | 561.9 mm | 566.5 mm | 575.7 mm |
| Reach | 402.7 mm | 431.4 mm | 458.7 mm |
| Top Tube Length | 568 mm | 598 mm | 628 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1108 mm | 1138 mm | 1170 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm |
| Standover Height | 718 mm | 726 mm | 741 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

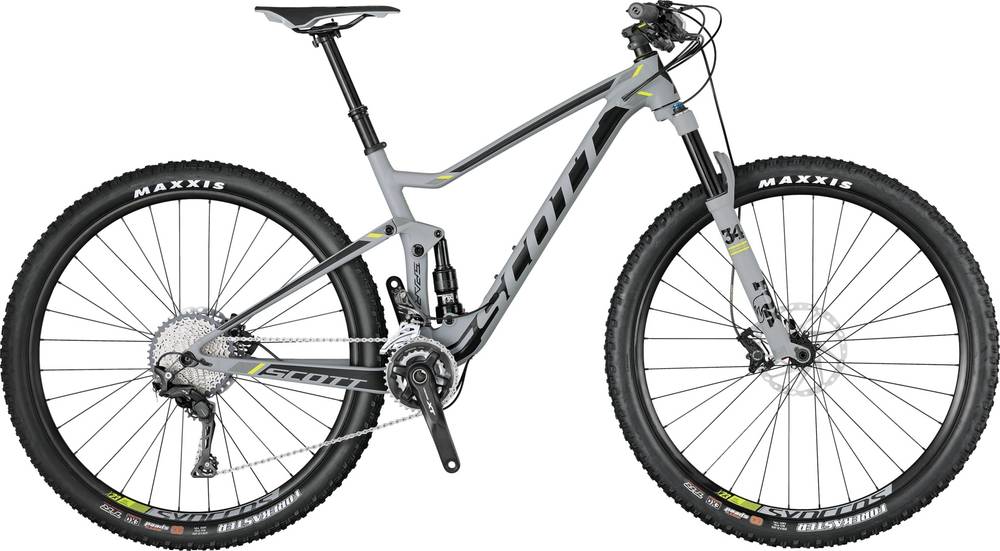

Spark 740 completes the Scott Spark model. Scott released 189 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13 kg (28.66 lbs), the Spark 740 model is slightly heavier than average. To sum up, it’s 0.15% heavier than the average weight of Trail bikes.
Spark 740 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX NUDE Trunnion SCOTT custom w., with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Spark 740 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Spark 740 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Scott model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
