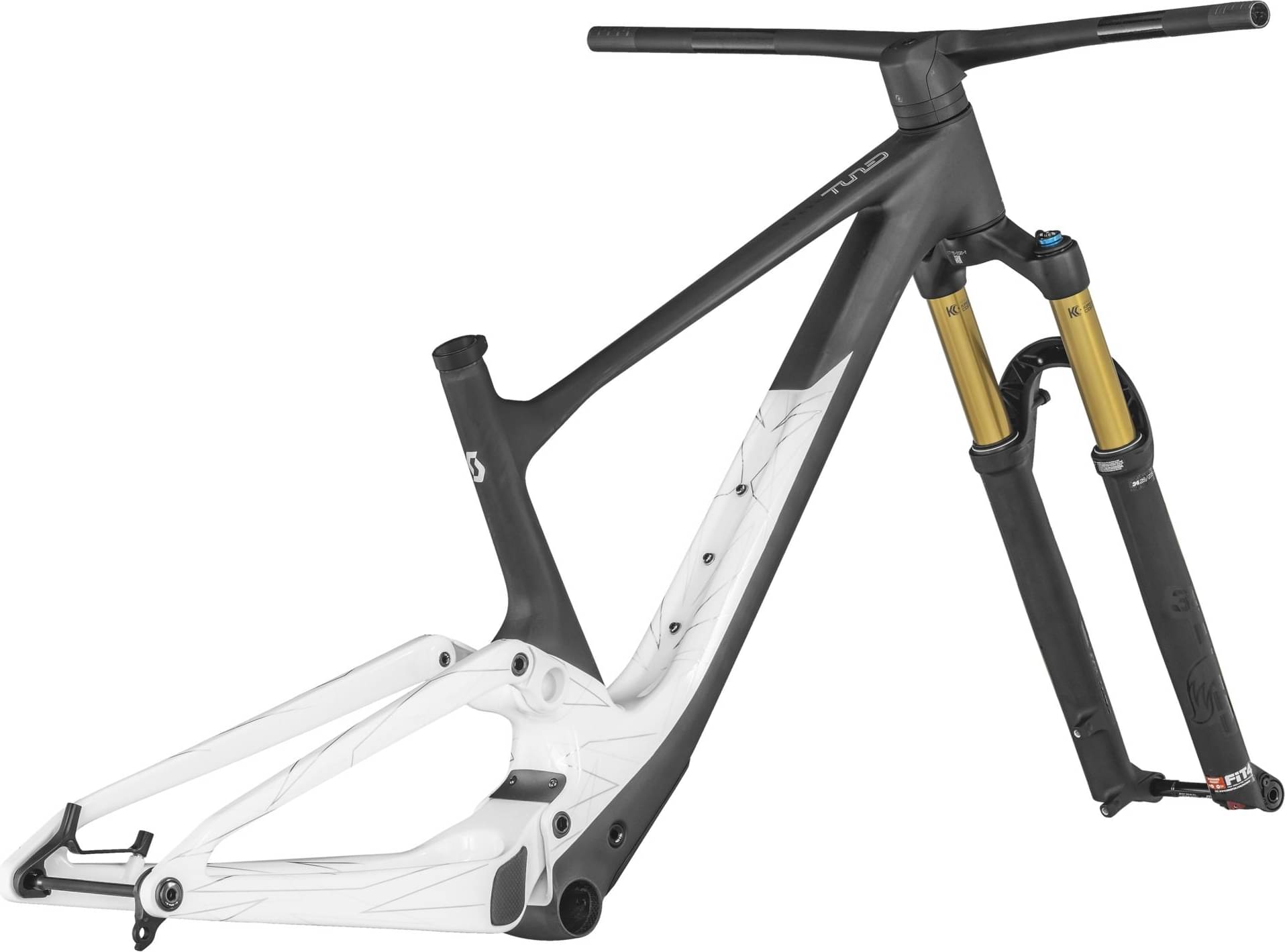

Scott Spark 900 Tuned HMX Frame+Fork 2022
2022 Mountain
Estimate price |
6,288$
Weight | 2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Fork Fox Factory Float 34 -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 34 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 130mm travel
Rear Shock
FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. T165X45mm
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.38 mm | 1.32 mm | 1.26 mm |
| Bottom Bracket Height | 331.5 mm | 331.5 mm | 331.5 mm | 331.5 mm |
| Front Center | 711 mm | 740 mm | 771 mm | 802 mm |
| Rake | 42 mm | 41 mm | 38 mm | 35 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 605.5 mm | 605.5 mm | 615.7 mm | 625 mm |
| Reach | 408 mm | 438 mm | 468 mm | 498 mm |
| Top Tube Length | 559 mm | 587 mm | 611 mm | 639 mm |
| Seat Tube Angle | 75.7 ° | 75.9 ° | 76.4 ° | 76.7 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1143 mm | 1172 mm | 1203 mm | 1234 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 757 mm | 765 mm | 776 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Spark 900 Tuned HMX Frame+Fork is a Scott Spark model. There are 189 frames that carry this model name. You can easily view all of the Scott Spark frames models from 2022, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 5716$. Doing a quick comparison, we notice that Spark 900 Tuned HMX Frame+Fork price is 238.43% higher than the average cost of a Crosscountry frame.
Crosscountry frames average weight
The average weight for Crosscountry frames is 2.04 kg (4.5 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Scott Spark 900 Tuned HMX Frame+Fork it’s weighing 2 kg (4.41 lbs). At this weight, is slightly lighter than average. In conclusion, the average Crosscountry frame weighs 2% more than Spark 900 Tuned HMX Frame+Fork.
Spark 900 Tuned HMX Frame+Fork components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
