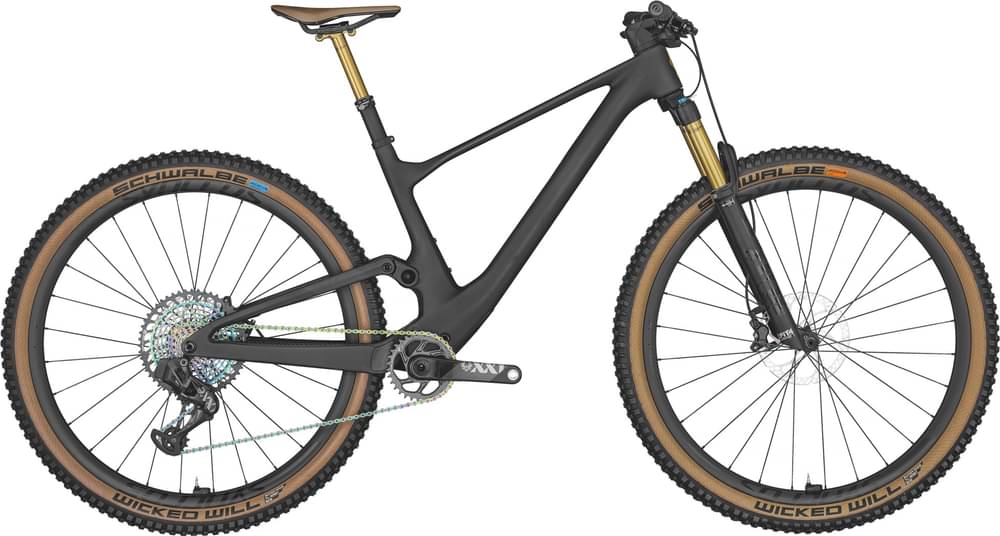

Scott Spark 900 Ultimate EVO AXS 2022
2022 Mountain
Estimate price |
13,999$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark Carbon HMX SL Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline Lightest 120mm frame 1870g (w/shock)
Suspension Fork
FOX 34 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 130mm travel
Rear Shock
FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS / 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM Eagle AXS Rocker Controller
Cassette
SRAM CS XX1 XG1299 / 10-52 T
Crank
SRAM XX1 Eagle Carbon crankarm DUB / 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN XX1 Eagle
Wheels
Rims
Syncros Silverton 1.0S-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires
Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Brakes
Brakes
Trickstuff Piccola HD Carbon 4 Piston Disc
Disk Rotors
Trickstuff Dächle Ultra-Light / F&R 180mm
Cockpit
Handlebar
Syncros Fraser iC SL DC Carbon 0° rise / back sweep 8° / mini Rise / 760mm Syncros Pro lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino Regular 1.0 Carbon rails
Seatpost
FOX Transfer Factory Dropper Post Kashima 31.6mm / S & M size 125mm / L & XL size 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.38 mm | 1.32 mm | 1.26 mm |
| Bottom Bracket Height | 331.5 mm | 331.5 mm | 331.5 mm | 331.5 mm |
| Front Center | 711 mm | 740 mm | 771 mm | 802 mm |
| Rake | 42 mm | 41 mm | 38 mm | 35 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 605.5 mm | 605.5 mm | 615.7 mm | 625 mm |
| Reach | 408 mm | 438 mm | 468 mm | 498 mm |
| Top Tube Length | 559 mm | 587 mm | 611 mm | 639 mm |
| Seat Tube Angle | 75.7 ° | 75.9 ° | 76.4 ° | 76.7 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1143 mm | 1172 mm | 1203 mm | 1234 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 757 mm | 765 mm | 776 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Spark 900 Ultimate EVO AXS is a Scott Spark model. There are 189 bikes that carry this model name. You can easily view all of the Scott Spark bikes models from 2022, here.
Model range prices
Scott Spark 970 2022 is the most affordable bike of this model and has a price of 2799$. On the other hand, Scott Spark RC SL 2022, is the most expensive and costs 14999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 13999$. Comparing the average cost of a Trail bike to this one, you will see that Spark 900 Ultimate EVO AXS price is 406.84% more expensive.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Scott Spark 900 Ultimate EVO AXS it’s weighing 10.8 kg (23.81 lbs). At this weight, is much lighter than average. In other words, this model is 20.19% lighter than the average Trail bike.
Spark 900 Ultimate EVO AXS components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX NUDE 5T Factory EVOL Trunnion rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Scott Spark 900 Ultimate EVO AXS 2022, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Spark 900 Ultimate EVO AXS has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Scott Spark 900 Ultimate EVO AXS comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
