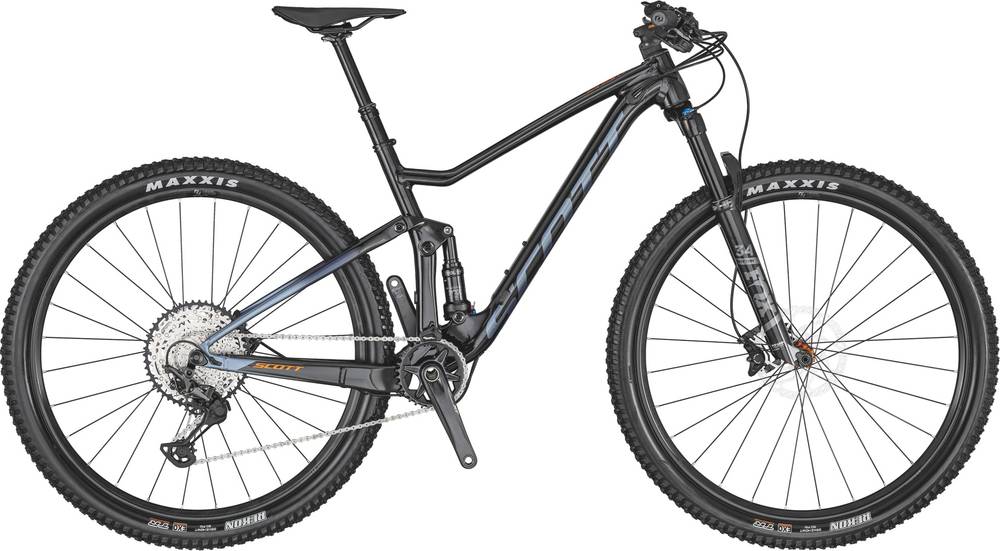

Scott Spark 940 2020
2020 Mountain
Estimate price |
3,399$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark 3 Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 / Boost 12x148mm 2.6 tire compatible
Suspension Fork
FOX 34 Float Rhythm Air Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 120mm travel
Rear Shock
FOX NUDE EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control -Descend DPS / Reb. Adj. / Travel 120-85-Lockout / 165X45mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed
Shift Levers
Shimano SLX SL-M7100-R / Rapidfire Plus
Cassette
Shimano SLX CS-M7100-12 / 10-51 T
Crank
Shimano XT FC-M8100-1 / Hollowtech 2 32T
Bottom Bracket
Shimano BB-MT500 / shell 41x92mm
Chain
Shimano SLX CN-M7100
Chain Guide
SCOTT custom
Wheels
Rims
Syncros Silverton 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / MS Driver Syncros Axle w/Removable Lever with Tool
Tires
Maxxis Rekon / 2.4" / 60TPI Kevlar Bead Tubeless Ready / EXO
Brakes
Brakes
Shimano SLX M7100 Disc 180mm F&R SM-RT66 rotor
Cockpit
Stem
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cap / 31.8mm / 1 1/8"
Handlebar
Syncros Fraser 2.0 / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Headset
Syncros Pro Press Fit / Tapered 1.5"-1 1/8" OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Belcarra Regular 2.0 CRMO rails
Seatpost
Syncros Duncan Dropper 2.0 Remote 31.6mm / S size 100mm / M, L & XL 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.38 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 687 mm | 717 mm | 748 mm | 769 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 100.2 mm | 100.2 mm | 100.2 mm | 100.2 mm |
| Stack | 586.1 mm | 586.1 mm | 595.4 mm | 604.6 mm |
| Reach | 395.7 mm | 425.7 mm | 453 mm | 470.3 mm |
| Top Tube Length | 568 mm | 598 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1114 mm | 1144 mm | 1175 mm | 1196 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 731 mm | 739 mm | 753 mm | 771 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spark 940 belongs to the Scott Spark model. Scott released 189 bikes variations of this model so far. You can easily view all of the Scott Spark bikes models from 2020, here.
Model range prices
Scott Spark 600 2020 is the most economical model, with a starting price of 1899$. Scott Spark RC 900 SL AXS 2020 on the other hand costs 11999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3399$. Doing a quick comparison, we notice that Spark 940 price is 23.06% higher than the average cost of a Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.7 kg (30.2 lbs), the Spark 940 model is a bit heavier than average. In short, the average Trail bike weight is 5.55% lower than this one.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX NUDE EVOL Trunnion SCOTT custom, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Spark 940 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Spark 940 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Spark 940 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Spark 940. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
