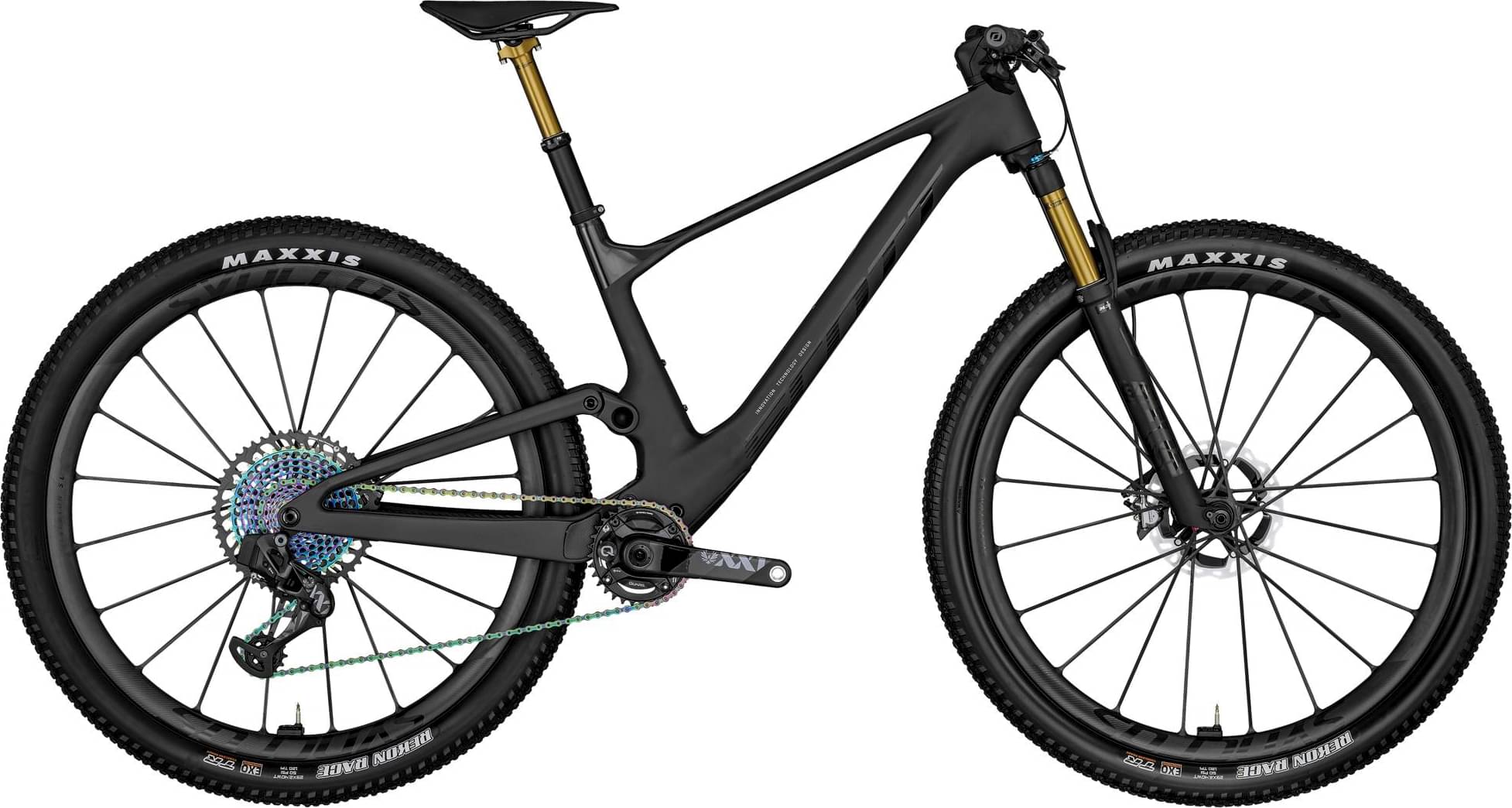

Scott Spark RC SL EVO AXS 2023
2023 Mountain
Estimate price |
13,999$
Weight | 10.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark RC Carbon HMX SL Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline Lightest 120mm frame 1870g (w/shock)
Suspension Fork
FOX 34 SC Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 120mm travel
Rear Shock
FOX NUDE 5 Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend DPS / Kashima / Reb. Adj. Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS / 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM Eagle AXS Rocker Controller
Cassette
SRAM XX1 XG1299 / 10-52 T
Crank
SRAM XX1 Eagle AXS Carbon crankarm / Power Meter DUB / 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN XX1 Eagle
Wheels
Rims
Syncros Silverton SL2-30 CL full Carbon F: 15x110mm, R: 12x148mm / 30mm Tubeless ready rim DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires
Front: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO, Rear: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
Brakes
Brakes
Shimano XTR M9100 Disc
Cockpit
Handlebar
Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm / Syncros Pro lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Belcarra SL Regular 1.0 Carbon rails
Seatpost
FOX Transfer SL Factory Dropper Post Kashima 31.6mm / 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 695 mm | 725 mm | 756 mm | 797 mm |
| Rake | 45 mm | 45 mm | 40 mm | 47 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 600.5 mm | 600.5 mm | 614 mm | 623 mm |
| Reach | 409 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 560 mm | 588 mm | 612 mm | 640 mm |
| Seat Tube Angle | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1127 mm | 1157 mm | 1188 mm | 1229 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 756 mm | 763 mm | 774 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spark RC SL EVO AXS is a Scott Spark model. 189 bikes variations carry this model name so far. Take a sneak peek at all Scott Spark bikes models from 2023, by clicking here.
Model range prices
Scott Spark 970 2023 is the cheapest bike model and costs 2599$. Scott Spark RC SL 2023 is the most expensive one and costs 14999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Scott Spark RC SL EVO AXS price was 13999$. Doing a quick comparison, we notice that Spark RC SL EVO AXS price is 406.84% higher than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Scott Spark RC SL EVO AXS it’s weighing 10.3 kg (22.71 lbs). At this weight, is much lighter than average. In short, the average Trail bike weight is 26.02% higher than this one.
Spark RC SL EVO AXS components
Fork
The Spark RC SL EVO AXS comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Scott Spark RC SL EVO AXS bike has the FOX NUDE 5 Factory EVOL Trunnion model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Spark RC SL EVO AXS are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Spark RC SL EVO AXS has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Scott Spark RC SL EVO AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
