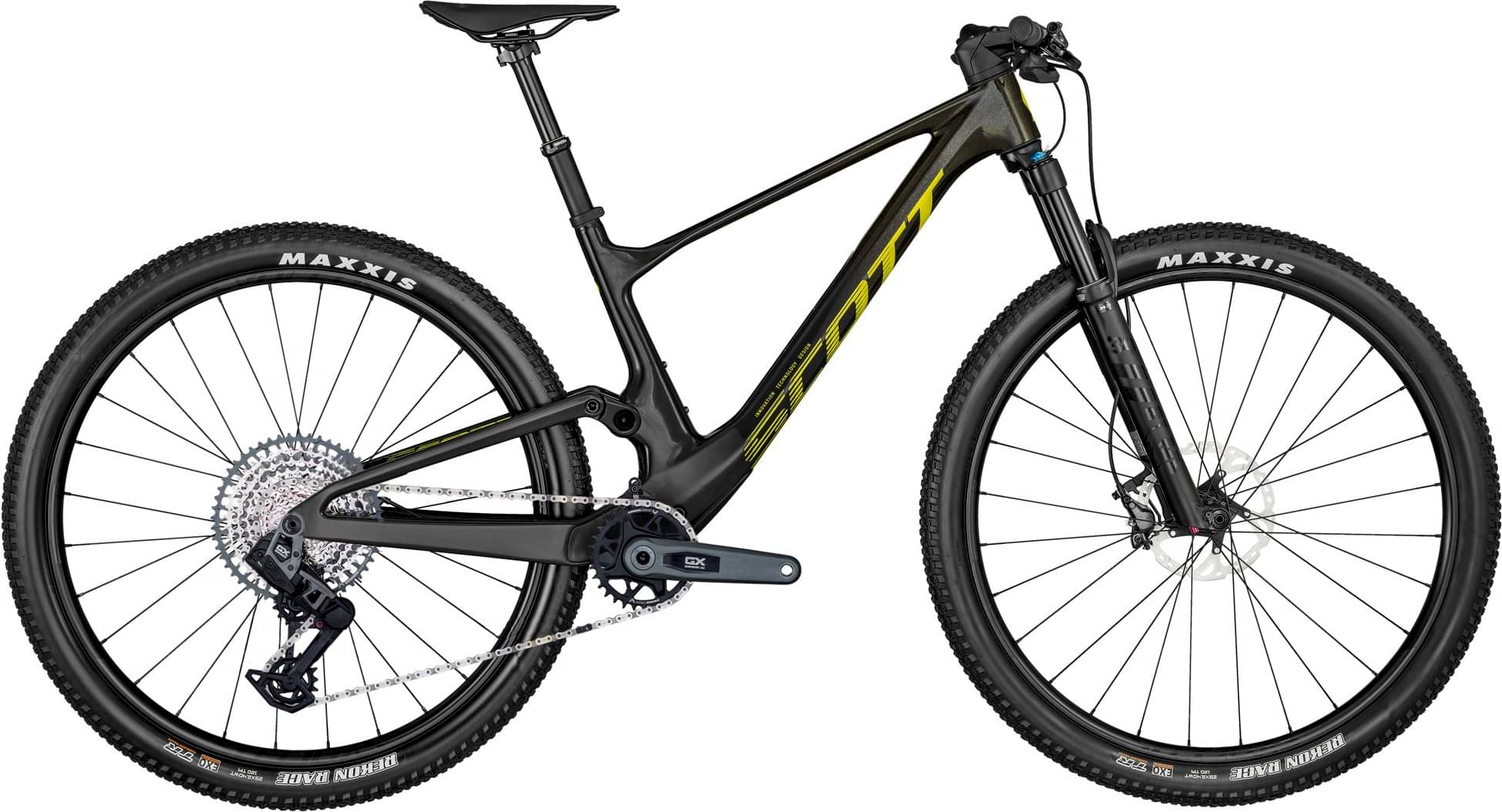

Scott Spark RC Team Issue TR 2023
2023 Mountain
Estimate price |
5,999$
Weight | 11.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle Transmission, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark RC Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 34 SC Float Performance Air Grip 3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer Reb. Adj. / Lockout / 120mm travel
Rear Shock
FOX NUDE 5 EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend DPS / Reb. Adj. / Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52
Crank
SRAM GX Eagle Transmission DUB / 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN GX Eagle Transmission
Wheels
Rims
Syncros Silverton 2.0-30 6 Bolt F: 15x110mm R: 12x148mm 30mm Tubeless ready rim / 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
Tires
Front: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO, Rear: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
Brakes
Brakes
Shimano XT M8100 Disc
Cockpit
Handlebar
Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Belcarra Regular 1.5 Titanium rails
Seatpost
FOX Transfer SL Performance Dropper Post 31.6mm / S size 75mm / M L & XL size 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 695 mm | 725 mm | 756 mm | 797 mm |
| Rake | 45 mm | 45 mm | 40 mm | 47 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 600.5 mm | 600.5 mm | 614 mm | 623 mm |
| Reach | 409 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 560 mm | 588 mm | 612 mm | 640 mm |
| Seat Tube Angle | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1127 mm | 1157 mm | 1188 mm | 1229 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 756 mm | 763 mm | 774 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spark RC Team Issue TR belongs to the Scott Spark model. There are 189 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Scott Spark 970 2023 is the most economical model, with a starting price of 2599$. Scott Spark RC SL 2023 on the other hand costs 14999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 5999$. Doing a quick comparison, we notice that Spark RC Team Issue TR price is 117.2% higher than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Scott Spark RC Team Issue TR it’s weighing 11.6 kg (25.57 lbs). At this weight, is considerably lighter than average. In short, the average Trail bike weight is 11.9% higher than this one.
Overview of components
Fork
The Spark RC Team Issue TR comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX NUDE 5 EVOL Trunnion SCOTT, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Spark RC Team Issue TR 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Spark RC Team Issue TR is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Spark RC Team Issue TR comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Spark RC Team Issue TR. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
