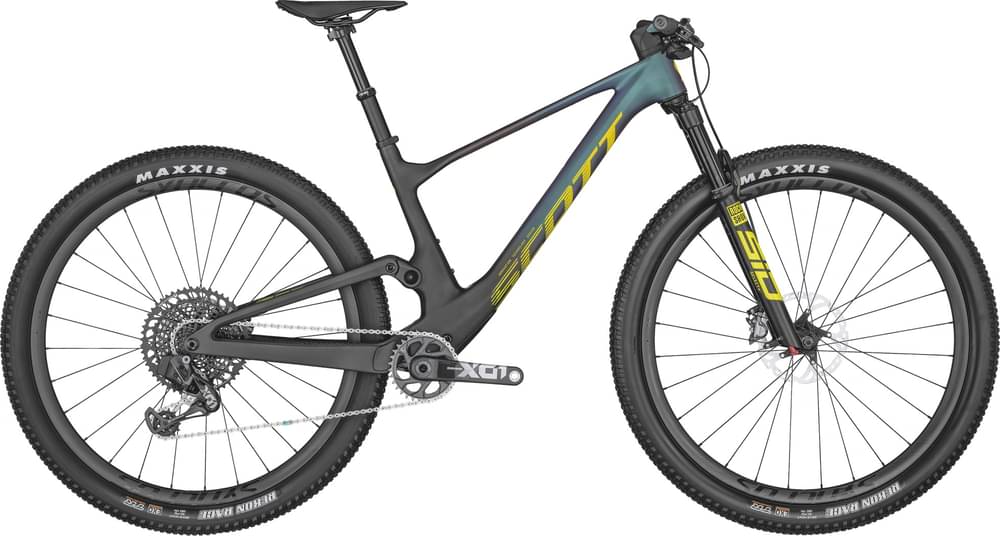

Scott Spark RC World Cup AXS 2022
2022 Mountain
Estimate price |
8,999$
Weight | 10.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Select
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark RC Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
RockShox SID Select+ RL3 Air Custom Charger 3-Mode Damper 15x110mm Maxle Stealth / 44mm offset / Tapered steerer Lockout / Reb. Adj. / 120mm travel
Rear Shock
RockShox NUDE 5 RL3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Debon Air / Reb. Adj./ Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM X01 XG1295 / 10-52 T
Crank
SRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN X01 Eagle
Wheels
Rims
Syncros Silverton 1.0-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss Ratchet Hubs / XD Driver SRAM TyreWiz ready / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires
Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
Brakes
Brakes
Shimano XTR M9100 Disc
Disk Rotors
Shimano SM-RT76 / 6 Bolt / 180/F and 160/R
Cockpit
Handlebar
Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm / Syncros Pro lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Belcarra Regular 1.5 Titanium rails
Seatpost
FOX Transfer SL Performance Elite Dropper Post 31.6mm / 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 695 mm | 725 mm | 756 mm | 797 mm |
| Rake | 45 mm | 45 mm | 40 mm | 47 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 600.5 mm | 600.5 mm | 614 mm | 623 mm |
| Reach | 409 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 560 mm | 588 mm | 612 mm | 640 mm |
| Seat Tube Angle | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1127 mm | 1157 mm | 1188 mm | 1229 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 756 mm | 763 mm | 774 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Spark RC World Cup AXS completes the Scott Spark model. 189 bikes variations carry this model name so far. Take a sneak peek at all Scott Spark bikes models from 2022, by clicking here.
Model range prices
Scott Spark 970 2022 is the most economical model, with a starting price of 2799$. Scott Spark RC SL 2022 on the other hand costs 14999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Scott released this model in 2022, its price was 8999$. Comparing this to the average Trail bike price, we see that the price is 225.81% higher.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 10.7 kg (23.59 lbs), the Spark RC World Cup AXS model is much lighter than average. In other words, this model is 21.31% lighter than the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox SID Select model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Scott Spark RC World Cup AXS bike has the RockShox NUDE 5 RL3 Trunnion SCOTT model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Spark RC World Cup AXS are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Scott Spark RC World Cup AXS includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
