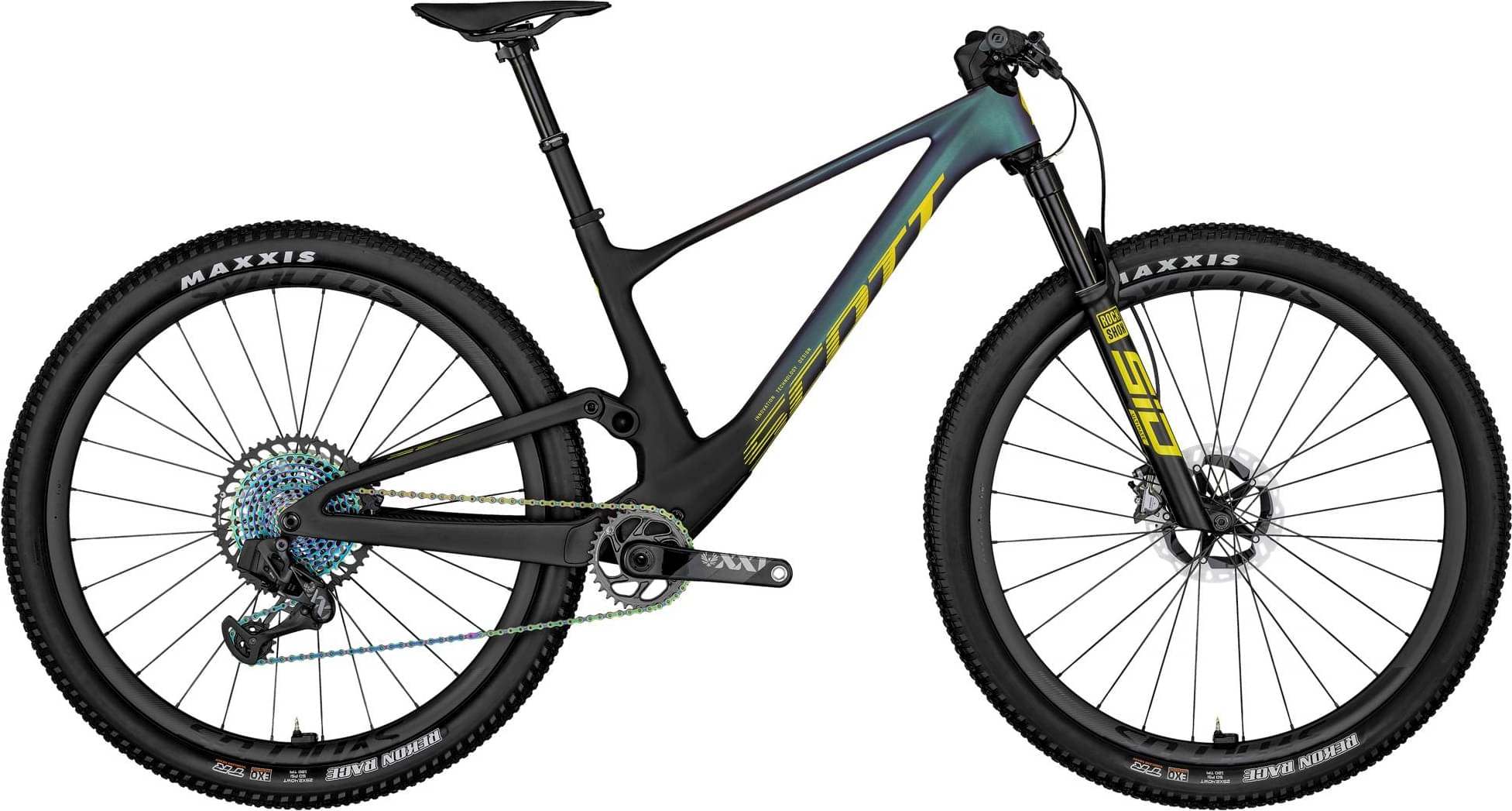

Scott Spark RC World Cup EVO AXS 2023
2023 Mountain
Estimate price |
10,499$
Weight | 10.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark RC Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
RockShox SID Ultimate RD3 Air Custom Race Day Charger 3-Mode Damper 15x110mm Maxle Stealth / 44mm offset /Tapered steerer Lockout / Reb. Adj. / 120mm travel
Rear Shock
RockShox NUDE 5 RLC3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Ad.j / Debon Air / Reb. Adj./ Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS / 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM Eagle AXS Rocker Controller
Cassette
SRAM XX1 XG1299 / 10-52 T
Crank
SRAM XX1 Eagle Carbon crankarm DUB / 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN XX1
Wheels
Rims
Syncros Silverton 1.0S-30 CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires
Front: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO, Rear: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
Brakes
Brakes
Shimano XTR M9100 Disc
Cockpit
Handlebar
Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm / Syncros Pro lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Belcarra 1.0 Regular 1.0 Carbon rails
Seatpost
FOX Transfer SL Performance Elite Dropper Post 31.6mm / 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 695 mm | 725 mm | 756 mm | 797 mm |
| Rake | 45 mm | 45 mm | 40 mm | 47 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 600.5 mm | 600.5 mm | 614 mm | 623 mm |
| Reach | 409 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 560 mm | 588 mm | 612 mm | 640 mm |
| Seat Tube Angle | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1127 mm | 1157 mm | 1188 mm | 1229 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 756 mm | 763 mm | 774 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spark RC World Cup EVO AXS is part of the Scott Spark model. Scott released 189 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Scott Spark 970 2023 has a starting price of 2599$. Scott Spark RC SL 2023 on the other hand is the most expensive at 14999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10499$. In conclusion, this bike price is 280.12% higher than the price of the average Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, Spark RC World Cup EVO AXS has a weight of 10.3 kg (22.71 lbs). In short, the average Trail bike weight is 26.02% higher than this one.
Spark RC World Cup EVO AXS components
Fork
Scott Spark RC World Cup EVO AXS 2023 bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox NUDE 5 RLC3 Trunnion SCOTT model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Spark RC World Cup EVO AXS 2023 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Spark RC World Cup EVO AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Scott Spark RC World Cup EVO AXS comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
