Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speedster / D.Butted 6061 Alloy Endurance geometry / Integrated Headtube, int. cable routing
Suspension Fork
Speedster Alloy 1 1/8" Alloy steerer
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-SS 16 Speed
Front Derailleur
Shimano Claris FD-R2000
Shift Levers
Shimano Claris ST-R2000 Dual control 16 Speed
Cassette
Shimano CS-HG50 8 Speed 11-32 T
Crank
Shimano Claris FC-RS200 50x34 T
Bottom Bracket
Shimano BB-UN26
Chain
KMC X8
Wheels
Front Hub
Formula Comp 24 H
Rear Hub
Formula Comp 28 H
Rims
Syncros Race 23 24 Front / 28 Rear
Spokes
SHA-DAR Black 2mm
Tires
Schwalbe Lugano 700x28C
Brakes
Brakes
Tektro BR-315 39-51mm
Cockpit
Stem
JD ST123A Alloy 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros RR2.0 Comfort 31.8mm
Headset
Integrated Steel Cup
Seat
Saddle
Syncros FL2.5
Seatpost
Syncros RR2.5 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 568 mm | 574 mm | 576 mm | 581 mm | 586 mm | 593 mm | 607 mm |
| Rake | 36 mm | 36 mm | 35 mm | 35 mm | 35 mm | 35 mm | 40 mm |
| Trail | 82 mm | 79 mm | 73 mm | 70 mm | 67 mm | 65 mm | 60 mm |
| Stack | 518.7 mm | 529.9 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 615.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 111 mm | 121 mm | 141 mm | 161 mm | 181 mm | 201 mm | 221 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 975 mm | 981 mm | 983 mm | 988 mm | 993 mm | 1001 mm | 1014 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 743 mm | 769 mm | 789 mm | 809 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |

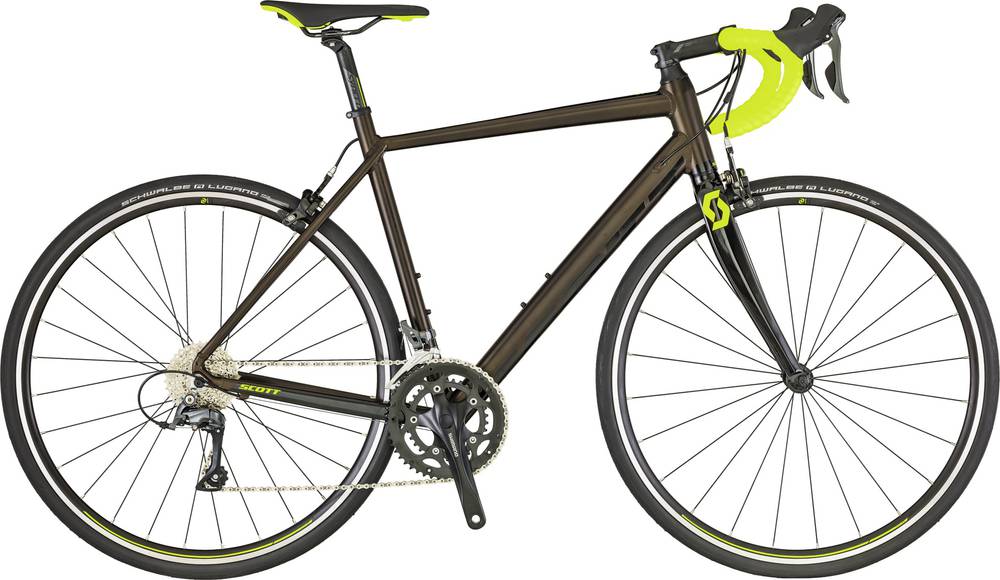

Model Overview
Speedster 40 belongs to the Scott Speedster model. Scott released 100 bikes variations of this model so far. You can easily view all of the Scott Speedster bikes models from 2019, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Endurance bikes
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Scott Speedster 40 it’s weighing 10.5 kg (23.15 lbs). At this weight, is much heavier than average. In short, the average Endurance bike weight is 28.05% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Speedster 40 components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Speedster 40 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speedster 40 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Scott Speedster 40 bike has 7 sizes, in the range of 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
