Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speedster Aero / D.Butted 6061 Alloy Road geometry / Integrated Headtube
Suspension Fork
Speedster Alloy 1 1/8" Alloy steerer
Drivetrain
Rear Derailleur
Shimano Claris RD-2400-SS 16 Speed
Front Derailleur
Shimano Claris FD-2400
Shift Levers
Shimano Claris ST-2400 Dual control 16 Speed
Cassette
Shimano CS-HG50 8 Speed 11-30 T
Crank
Shimano Claris FC-2450 Black 50x34 T
Bottom Bracket
Shimano Octalink BB-ES300A1
Chain
Shimano CN-HG40
Wheels
Front Hub
Formula Comp 24 H
Rear Hub
Formula Comp 28 H
Rims
Syncros Race 22 24 Front / 28 Rear
Spokes
HTI - Standard Black 2mm
Tires
Kenda Kontender 700x25C
Brakes
Brakes
Tektro Comp SCBR-312 39-51mm
Cockpit
Stem
JD ST92A Alloy 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros RR2.0 Ergonomic 31.8mm
Headset
Integrated Steel Cup
Seat
Saddle
Syncros FL2.5
Seatpost
Syncros RR2.5 31.6/300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 578 mm | 584 mm | 586 mm | 591 mm | 596 mm | 602 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm |
| Trail | 72 mm | 69 mm | 63 mm | 60 mm | 57 mm | 56 mm | 55 mm |
| Stack | 518.7 mm | 529.9 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 633.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 985 mm | 991 mm | 993 mm | 999 mm | 1003 mm | 1009 mm | 1024 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 743 mm | 769 mm | 789 mm | 809 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview

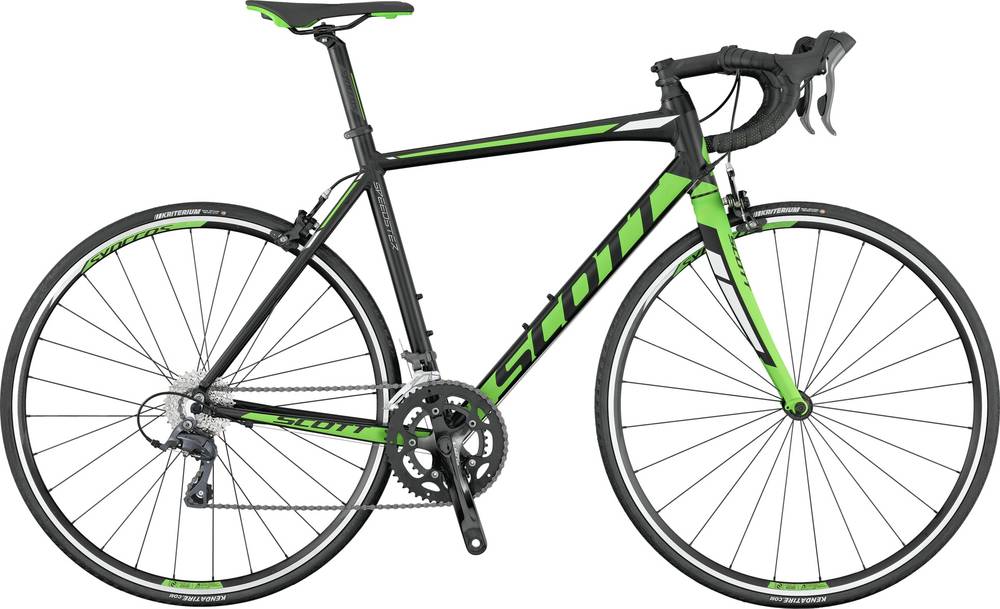

Speedster 40 (CD16) is part of the Scott Speedster model. Scott launched 100 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Scott Speedster 40 (CD16) it’s weighing 10.14 kg (22.35 lbs). At this weight, is much heavier than average. In conclusion, the average Endurance bike weighs 23.66% less than Speedster 40 (CD16).
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the Speedster 40 (CD16) bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speedster 40 (CD16) has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
