Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speedster Gravel Disc / D.Butted 6061 Alloy Endurance geometry / Integrated Headtube
Suspension Fork
Speedster Gravel Carbon Disc 1 1/8"-1 1/4" Carbon steerer
Drivetrain
Rear Derailleur
Shimano 105 Black RD-R7000-GS 22 Speed
Front Derailleur
Shimano 105 Black FD-R7000
Shift Levers
Shimano ST-R7020 Disc Dual control 22 Speed
Cassette
Shimano CS-HG700 11-34
Crank
Shimano FC-RS510 Black Hyperdrive 50x34 T
Bottom Bracket
Shimano BB-RS500
Chain
KMC X11
Wheels
Front Hub
Formula Team CL Disc 28 H
Rear Hub
Formula Team CL Disc 28 H
Rims
Syncros Race 24 Disc 28 Front / 28 Rear
Spokes
SHA-DAR Black 2mm
Tires
Schwalbe G-One Allround 700x35C
Brakes
Brakes
Shimano BR-R7070 Hyd Disc 160/F and 160/Rmm SM-RT70 CL Rotor
Cockpit
Stem
JD ST123A Alloy 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Creston 2.0 Flare Alloy 31.8mm
Headset
Integrated Steel Cup tapered
Seat
Saddle
Syncros FL2.5
Seatpost
Syncros RR2.5 27.2/300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 560 mm | 567 mm | 569 mm | 574 mm | 579 mm | 586 mm | 600 mm |
| Rake | 29 mm | 29 mm | 29 mm | 29 mm | 28 mm | 28 mm | 34 mm |
| Trail | 93 mm | 89 mm | 83 mm | 80 mm | 77 mm | 75 mm | 69 mm |
| Stack | 518.7 mm | 529.9 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 615.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 111 mm | 121 mm | 141 mm | 161 mm | 181 mm | 201 mm | 221 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 975 mm | 981 mm | 983 mm | 988 mm | 993 mm | 1001 mm | 1014 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 743 mm | 769 mm | 789 mm | 809 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview

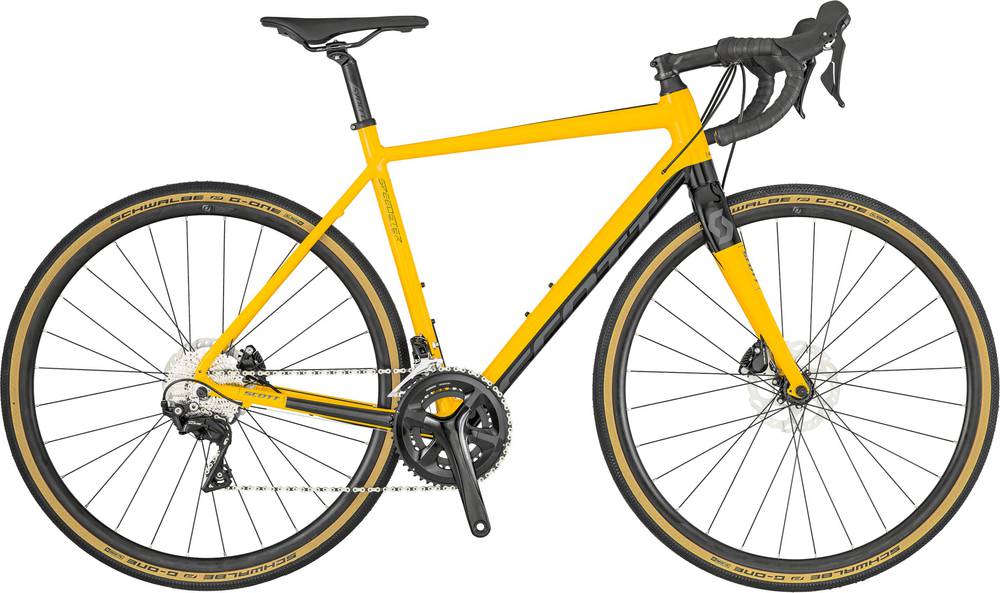

Speedster Gravel 20 is a Scott Speedster model. Scott released 100 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Scott Speedster Gravel 20 it’s weighing 10.04 kg (22.13 lbs). At this weight, is much heavier than average. In conclusion, the average Gravel bike weighs 23.49% less than Speedster Gravel 20.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Speedster Gravel 20 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Speedster Gravel 20 comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
