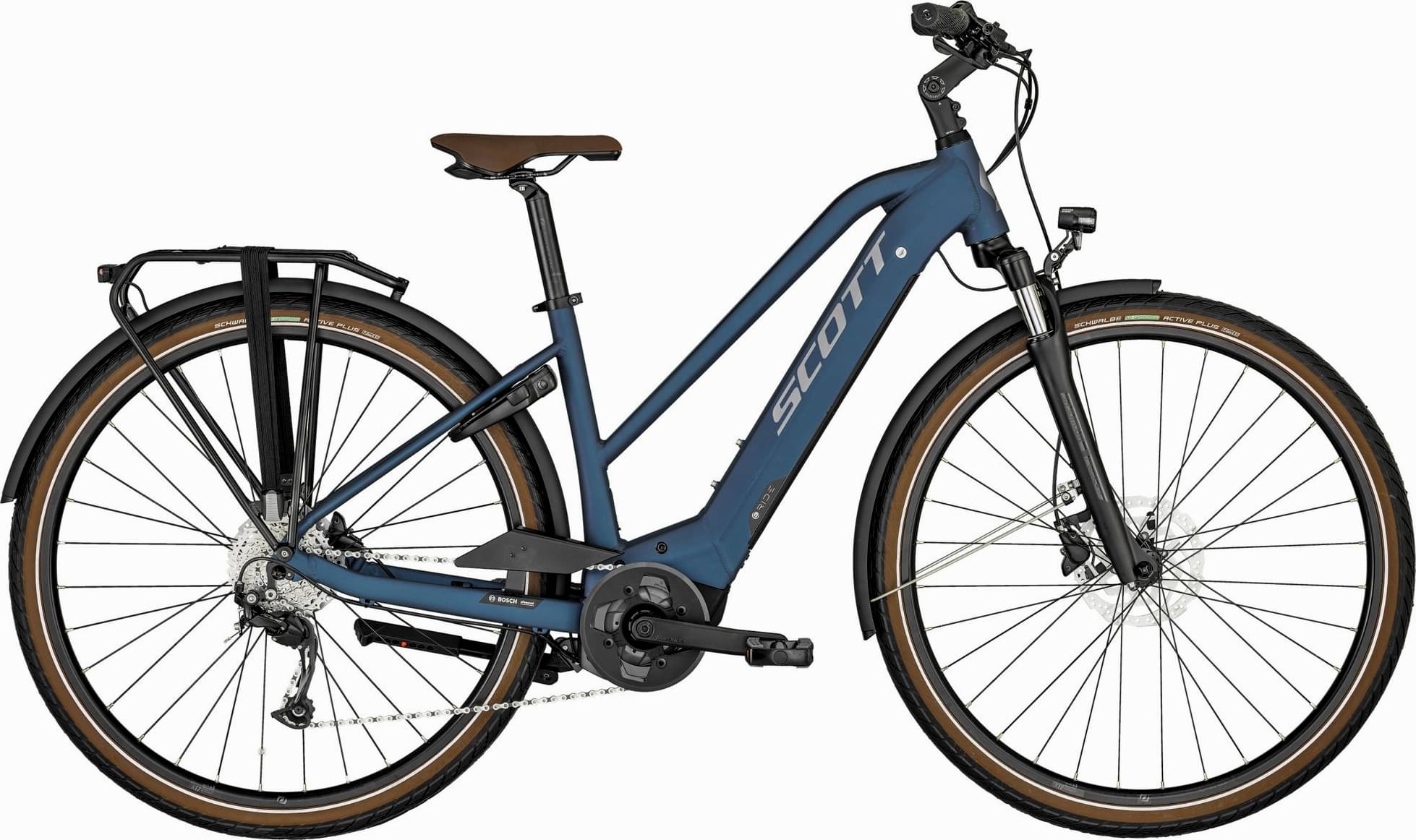

Scott Sub Active eRIDE 20 Lady 2023
2023 E-bike
Estimate price |
2,699$
Weight | 26.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery PowerTube 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NEX-E25 DS QR 700C TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio 3100 9 Speed
Shift Levers
Shimano Alivio 3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5mm
Chain
KMC E9s NPBK
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G / R: 13G
Tires
Front: Schwalbe Energizer Active Plus 700x50c, Rear: Schwalbe Energizer Active Plus 700x50c
Brakes
Brakes
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / Rise 12mm / backsweep 15°
Headset
GW semi integrated
Seat
Saddle
Syncros Capilano
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Active BES2 EU: 25kmh / US: 20mph
Battery
PowerTube 400Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 440.5 mm | 440.5 mm | 440.5 mm |
| Front Center | 672 mm | 679 mm | 695 mm |
| Rake | 52 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm |
| Stack | 636 mm | 647 mm | 668 mm |
| Reach | 411 mm | 428 mm | 442 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1148 mm | 1155 mm | 1171 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 688 mm | 692 mm | 698 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Sub Active eRIDE 20 Lady is a Scott E Sub model. 99 e-bikes variations carry this model name so far. You can easily view all of the Scott E Sub e-bikes models from 2023, here.
Model range prices
Scott Sub Cross eRIDE 30 Unisex 2023 is the most affordable e-bike of this model and has a price of 2699$. On the other hand, Scott Sub Sport eRIDE 10 Men 2023, is the most expensive and costs 5108$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 2699$. Comparing the average cost of a Commuter e-bike to this one, you will see that Sub Active eRIDE 20 Lady price is 5.06% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Scott Sub Active eRIDE 20 Lady it’s weighing 26.4 kg (58.2 lbs). At this weight, is slightly heavier than average. In conclusion, the average Commuter e-bike weighs 4.76% less than Sub Active eRIDE 20 Lady.
Sub Active eRIDE 20 Lady components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Scott Sub Active eRIDE 20 Lady 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sub Active eRIDE 20 Lady comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Scott Sub Active eRIDE 20 Lady e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
