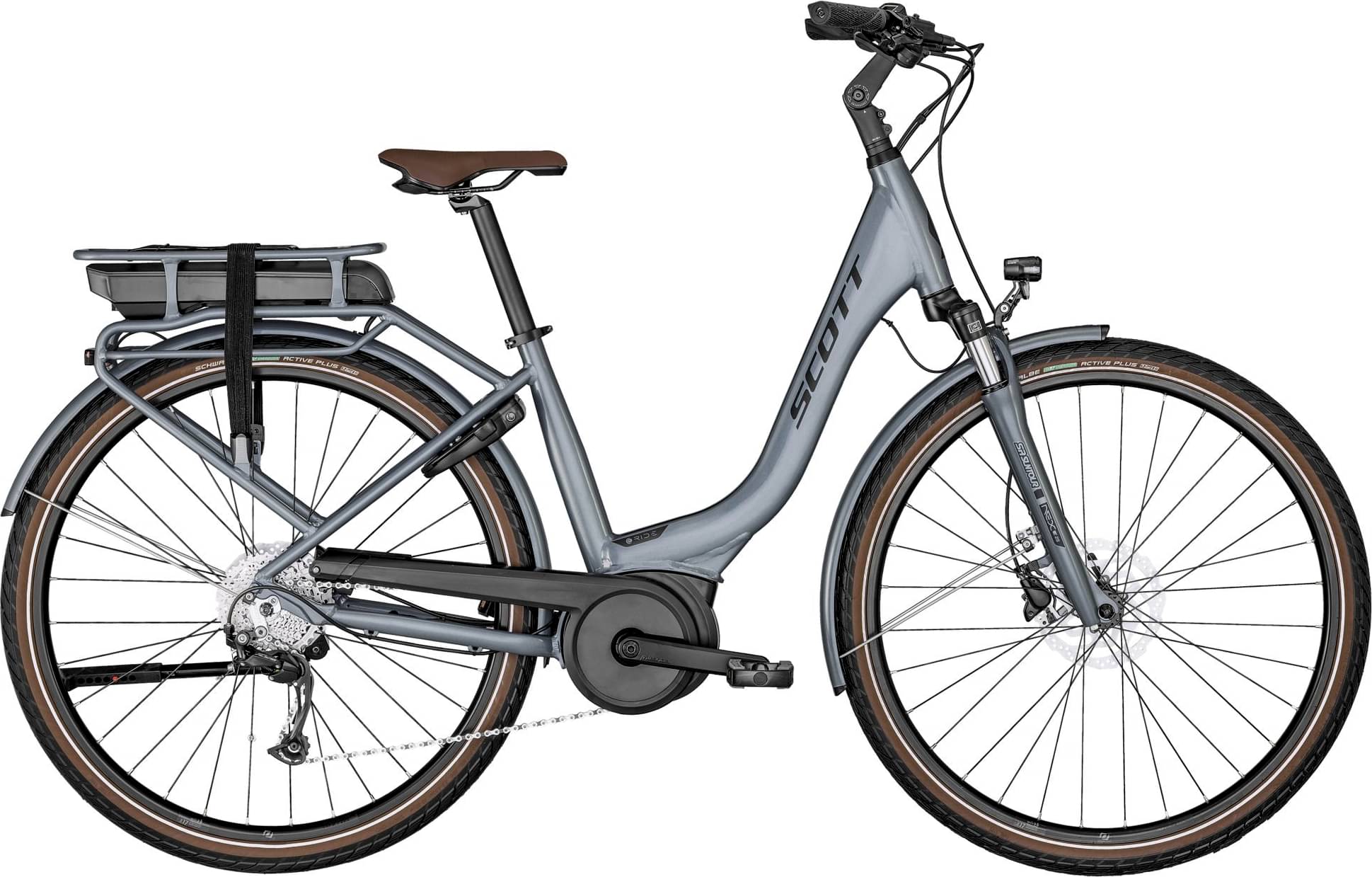

Scott Sub Active eRIDE 20 Unisex rack 2023
2023 E-bike
Estimate price |
3,210$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery PowerPack Battery 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NEX-E25 DS QR 700C / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio 3100 9 Speed
Shift Levers
Shimano Alivio 3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5mm
Chain
KMC E9s NPBK
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HB-TX50 CL
Rear Hub
Shimano FH-TX50 CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G / R: 13G
Tires
Front: Schwalbe Energizer Active Plus 700x50c, Rear: Schwalbe Energizer Active Plus 700x50c
Brakes
Brakes
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
HL NR-AL-16 W: 610mm Comfort
Headset
GW semi integrated
Seat
Saddle
Syncros Capilano
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Active Plus BES2
Battery
PowerPack Battery 400Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.76 mm | 1.69 mm | 1.58 mm |
| Bottom Bracket Height | 289.5 mm | 289.5 mm | 289.5 mm | mm |
| Front Center | 640 mm | 651 mm | 651 mm | 676 mm |
| Rake | 64 mm | 74 mm | 60 mm | 60 mm |
| Trail | 59 mm | 48 mm | 63 mm | 63 mm |
| Stack | 638.5 mm | 638.5 mm | 638.5 mm | 638.5 mm |
| Reach | 363.7 mm | 363.7 mm | 378.7 mm | 403.7 mm |
| Top Tube Length | 558 mm | 558 mm | 573 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 185 mm | 185 mm | 185 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1115 mm | 1126 mm | 1126 mm | 1151 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 449 mm | 449 mm | 453 mm | 459 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Sub Active eRIDE 20 Unisex rack is part of the Scott E Sub model. There are 99 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Scott Sub Cross eRIDE 30 Unisex 2023 has a starting price of 2699$. Scott Sub Sport eRIDE 10 Men 2023 on the other hand is the most expensive at 5108$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2918$. In conclusion, this e-bike price is 13.59% higher than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 26.8 kg (59.08 lbs), Scott e-bike is a bit heavier than average. In short, the average Commuter e-bike weight is 6.35% lower than this one.
Overview of components
Fork
Scott Sub Active eRIDE 20 Unisex rack 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Sub Active eRIDE 20 Unisex rack e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Sub Active eRIDE 20 Unisex rack is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Scott Sub Active eRIDE 20 Unisex rack e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
