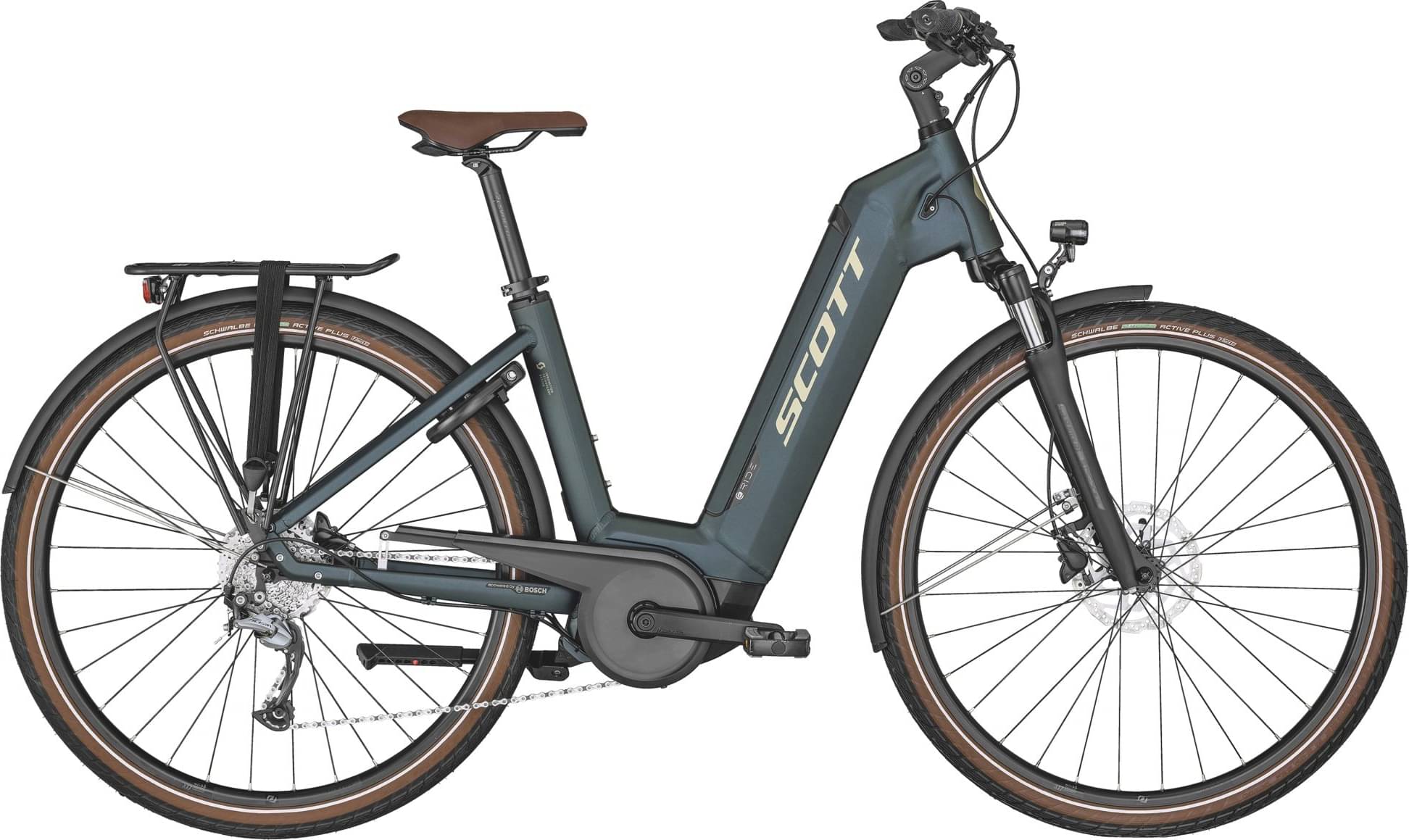

Scott Sub Active eRIDE USX 2022
2022 E-bike
Estimate price |
2,999$
Weight | 28.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery PowerTube 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NEX-E25 DS QR 700C STEEL TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio 3100 9 Speed
Shift Levers
Shimano Alivio 3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5MM
Chain
KMC E9s NPBK
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HB-TX50 CL
Rear Hub
Shimano FH-TX50 CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G/ R: 13G
Tires
Front: Schwalbe Energizer Active Plus 700x50c, Rear: Schwalbe Energizer Active Plus 700x50c
Brakes
Brakes
Shimano BR-M200 Disc
Brake Levers
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / Rise 12mm/ backsweep 15°
Headset
GW semi integrated
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Active EU: 25kmh / US: 20mph
Battery
PowerTube 400Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 86 mm | 79 mm | 86 mm | 86 mm |
| Stack | 649.6 mm | 649.6 mm | 649.6 mm | 649.6 mm |
| Reach | 398.1 mm | 403.1 mm | 408.1 mm | 413.1 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheels | 700 | 27" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Sub Active eRIDE USX is a Scott E Sub model. 99 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Scott Sub Cross eRIDE 30 Men 2022 is the most affordable e-bike of this model and has a price of 2857$. On the other hand, Scott Sub eRIDE EVO Lady 2022, is the most expensive and costs 4937$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. In conclusion, this e-bike price is 16.74% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Sub Active eRIDE USX weighs 28.4 kg (62.61 lbs) and is considerably heavier than the average. In other words, this model is 12.7% heavier than the average Commuter e-bike.
Overview of components
Fork
Scott Sub Active eRIDE USX 2022 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The Sub Active eRIDE USX 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Sub Active eRIDE USX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Scott Sub Active eRIDE USX e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
