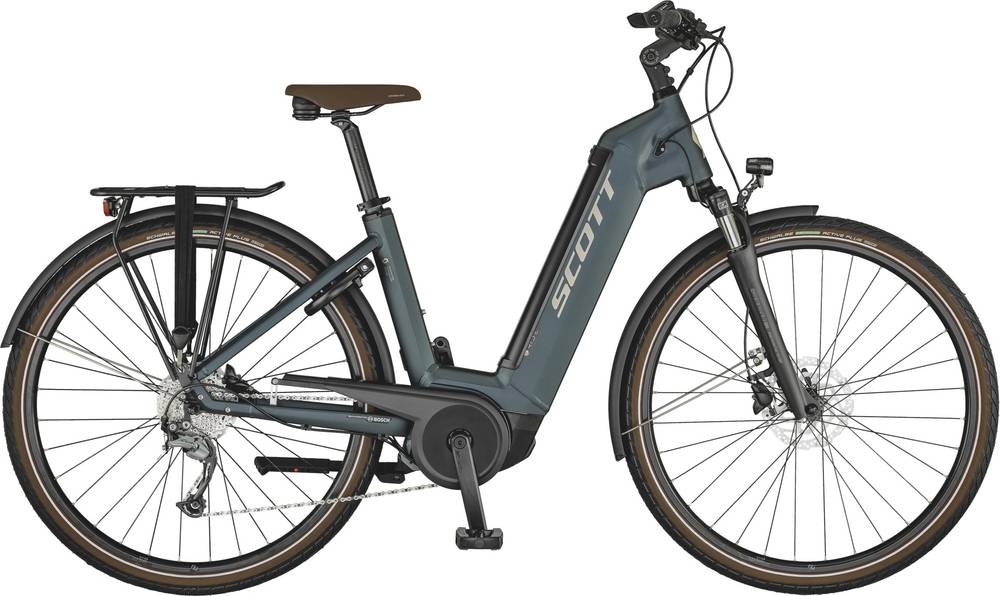

Scott Sub Active eRIDE USX US 2021
2021 E-bike
Estimate price |
2,399$
Weight | 28.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c / 650b / 29" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery PowerTube 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NEX-E25 DS QR 700C STEEL TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio 3100 9 Speed
Shift Levers
Shimano Alivio 3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5MM
Chain
KMC E9s NPBK
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HB-TX50 CL
Rear Hub
Shimano FH-TX50 CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G/ R: 13G
Tires
Schwalbe Energizer Active Plus 700x50c
Brakes
Brakes
Shimano BR-M200 Disc
Brake Levers
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / Rise 12mm/ backsweep 15°
Headset
GW semi integrated
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Active EU: 25kmh / US: 20mph
Battery
PowerTube 400Wh
Remote
Purion Display
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 86 mm | 79 mm | 86 mm | 86 mm |
| Stack | 649.6 mm | 649.6 mm | 649.6 mm | 649.6 mm |
| Reach | 398.1 mm | 403.1 mm | 408.1 mm | 413.1 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheels | 700 | 650 | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Sub Active eRIDE USX US is a Scott E Sub model. Scott released 99 e-bikes variations of this model so far. You can easily view all of the Scott E Sub e-bikes models from 2021, here.
Model range prices
Scott Sub Active eRIDE USX US 2021 is the cheapest e-bike model and costs 2399$. Scott Sub Active eRIDE Men US 2021 is the most expensive one and costs 2399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Scott Sub Active eRIDE USX US price was 2399$. Comparing this to the average General Urban e-bike price, we see that the price is 14.35% higher.
General Urban e-bikes average weight
If we make a quick analysis of the average weight of a General Urban e-bike, we get 24.08 kg (53.09 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Scott Sub Active eRIDE USX US it’s weighing 28.4 kg (62.61 lbs). At this weight, is much heavier than average. In other words, this model is 17.94% heavier than the average General Urban e-bike.
Overview of components
Fork
The Sub Active eRIDE USX US comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Sub Active eRIDE USX US has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the Sub Active eRIDE USX US model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Sub Active eRIDE USX US has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Sub Active eRIDE USX US comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
