Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SUB Cross Alloy 6061 / Sub Cross Men/Lady geometry / External cable routing / SCOTT urban kit ready
Suspension Fork
Suntour NEX HLO / Hyd. Lockout / 63mm travel
Drivetrain
Rear Derailleur
Shimano Alivio RD-M4000 / 27 Speed
Front Derailleur
Shimano FD-M370 / 34.9mm
Shift Levers
Shimano SL-M2000-9 / R-fire plus / w/gear indicator
Cassette
Shimano CS-HG200-9 11-34 T
Crank
Shimano FC-T4010 / 48x36x26 / w/CG
Bottom Bracket
Shimano BB-UN-26 / Cartridge Type
Chain
KMC X9
Pedals
VP VP-536
Wheels
Front Hub
Shimano HB-TX505
Rear Hub
Shimano FH-TX5058
Rims
Syncros X-20 Disc / 32H / black
Spokes
14 G / stainless / black
Tires
Impac SmartPac / 700x42C / 50 TPI
Brakes
Brakes
Shimano BR-M315 / Hydr. Disc / SM-RT10 CL Rotor / 160F/160R
Brake Levers
Shimano BL-M315
Cockpit
Stem
Syncros UC3.0 / 7° / Black
Handlebar
Syncros UC3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend
Headset
GW 1SI110 OE integ.
Seat
Saddle
Syncros UC3.0 / UC3.0W
Seatpost
Syncros UC3.0 / 31.6mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Front Center | 628 mm | 634 mm | 647 mm | 660 mm | 673 mm |
| Reach | 387.3 mm | 385.8 mm | 392.5 mm | 398.8 mm | 404.6 mm |
| Top Tube Length | 566 mm | 576 mm | 591 mm | 607 mm | 619 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.3 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1077 mm | 1083 mm | 1096 mm | 1109 mm | 1122 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 766 mm | 792 mm | 816 mm | 846 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

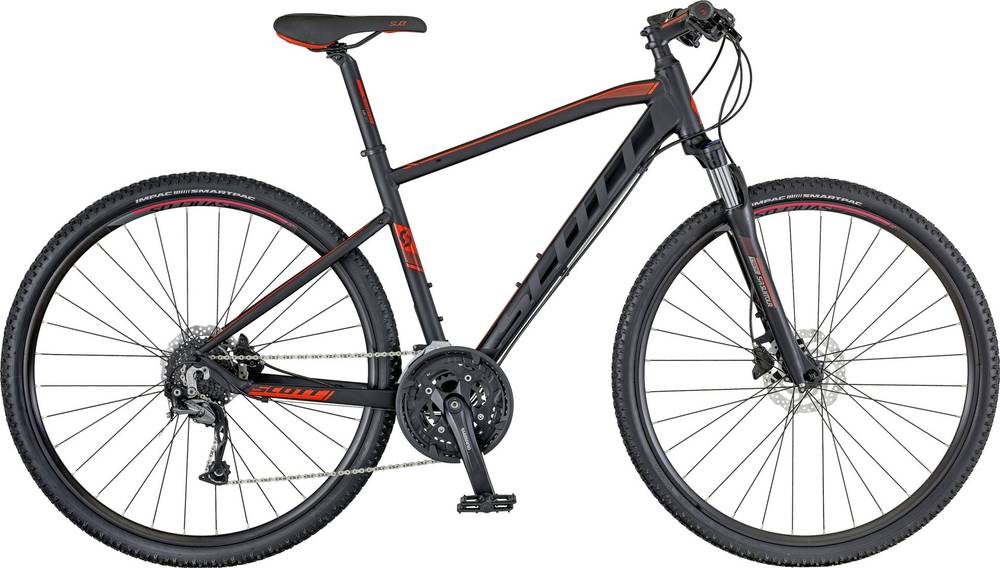

Sub Cross 30 Men’s belongs to the Scott Sub model. 106 bikes variations carry this model name so far. You can easily view all of the Scott Sub bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Sub Cross 30 Men’s has a weight of 13.94 kg (30.73 lbs). In other words, this model is 0.65% heavier than the average Hybrid bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Scott Sub Cross 30 Men’s 2018 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Sub Cross 30 Men’s 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
