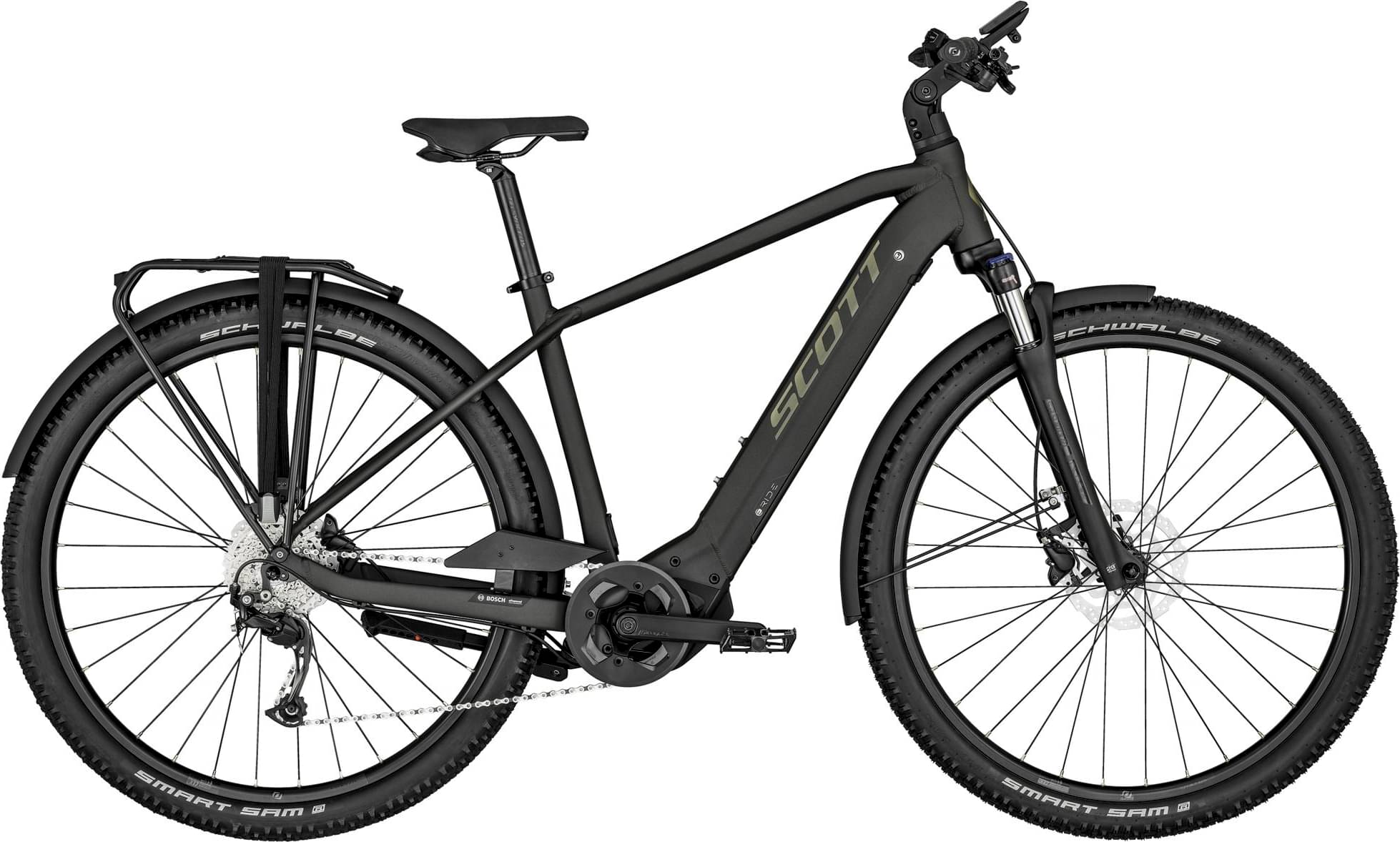

Scott Sub Cross eRIDE 20 Men EQ 2023
2023 E-bike
Estimate price |
3,399$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery 500Wh PowerTube Battery -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio RD M3100SGS 9 Speed
Shift Levers
Shimano Alivio SL-M3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5mm
Chain
KMC E9s NPBK
Pedals
VPE-506
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G / R: 13G
Tires
Schwalbe Smart Sam 29x2.25
Brakes
Brakes
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
Handlebar
Syncros UC3.0 680mm / 10° bend
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Performance CX BES3s EU: 25kmh / US: 20mph
Battery
500Wh PowerTube Battery
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 440.5 mm | 440.5 mm | 440.5 mm | 440.5 mm |
| Front Center | 672 mm | 679 mm | 695 mm | 717 mm |
| Rake | 52 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm | 82.5 mm |
| Stack | 636 mm | 647 mm | 668 mm | 691 mm |
| Reach | 411 mm | 428 mm | 442 mm | 456 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm | 185 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1148 mm | 1155 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 781 mm | 810 mm | 837 mm | 875 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Sub Cross eRIDE 20 Men EQ is part of the Scott E Sub model. There are 99 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Scott Sub Cross eRIDE 30 Unisex 2023 has a starting price of 2699$. Scott Sub Sport eRIDE 10 Men 2023 on the other hand is the most expensive at 5108$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3399$. Comparing this to the average Hybrid e-bike price, we see that the price is 37.06% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 25.3 kg (55.78 lbs), Scott e-bike is a bit heavier than average. In other words, this model is 6.35% heavier than the average Hybrid e-bike.
Sub Cross eRIDE 20 Men EQ components
Fork
The Sub Cross eRIDE 20 Men EQ comes factory-installed with the Suntour NVX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Sub Cross eRIDE 20 Men EQ e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sub Cross eRIDE 20 Men EQ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Sub Cross eRIDE 20 Men EQ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
