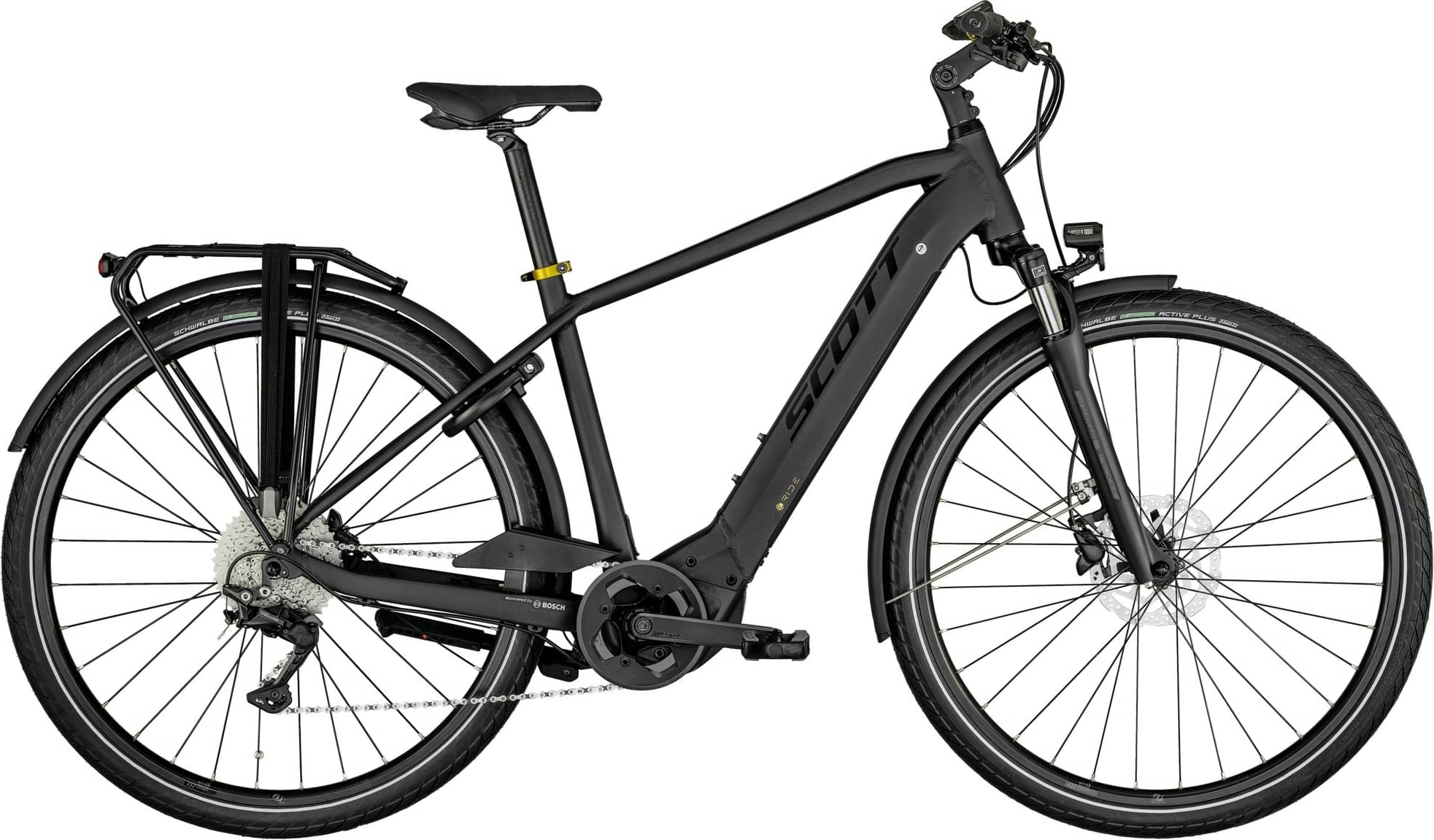

Scott Sub Sport eRIDE 20 Men 2023
2023 E-bike
Estimate price |
4,013$
Weight | 27.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NEX-E25 DS QR 700C STEEL TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore 10 Speed
Shift Levers
Shimano Deore 10 Speed
Cassette
Shimano CSM4100 11-42T
Crank
Miranda 172,5MM
Chain
KMC E10S
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT500B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G/ R: 13G
Tires
Front: Schwalbe Energizer Active Plus 700x50c, Rear: Schwalbe Energizer Active Plus 700x50c
Brakes
Brakes
Shimano BR-M200 Disc
Brake Levers
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / 10° bend
Headset
GW semi integrated
Seat
Saddle
Selle Royale Essenza
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Performance CX EU: 25kmh / US: 20mph
Battery
PowerTube 625Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 440.5 mm | 440.5 mm | 440.5 mm | 440.5 mm |
| Front Center | 672 mm | 679 mm | 695 mm | 717 mm |
| Rake | 52 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm | 82.5 mm |
| Stack | 636 mm | 647 mm | 668 mm | 691 mm |
| Reach | 411 mm | 428 mm | 442 mm | 456 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm | 185 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1148 mm | 1155 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 781 mm | 810 mm | 837 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sub Sport eRIDE 20 Men is part of the Scott E Sub model. Scott launched 99 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Scott Sub Cross eRIDE 30 Unisex 2023 has a starting price of 2699$. Scott Sub Sport eRIDE 10 Men 2023 on the other hand is the most expensive at 5108$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness e-bikes average price
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3648$. In conclusion, this e-bike price is 55.17% more expensive than the price of the average Fitness e-bike.
Average weight for Fitness e-bikes
Fitness e-bikes weigh an average of 22.85 kg (50.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 27.1 kg (59.75 lbs), the Sub Sport eRIDE 20 Men model is much heavier than average. In other words, this model is 18.6% heavier than the average Fitness e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The Sub Sport eRIDE 20 Men 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Scott Sub Sport eRIDE 20 Men e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
