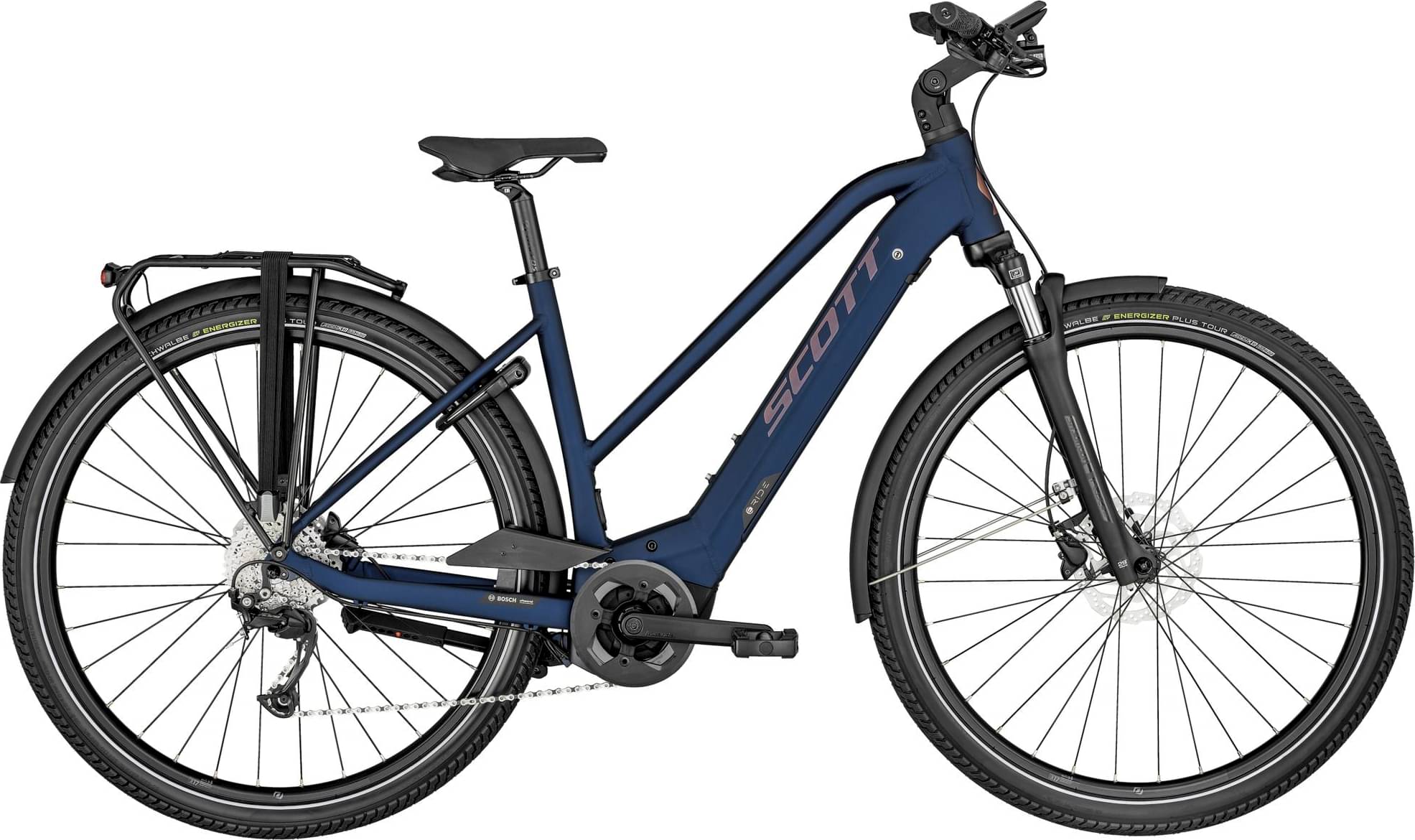

Scott Sub Tour eRIDE 20 Lady 2023
2023 E-bike
Estimate price |
4,147$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NVX 30 DS QR 700C TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio RD M3100SGS 9 Speed
Shift Levers
Shimano Alivio SL-M3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5mm
Chain
KMC E9s NPBK
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G / R: 13G
Tires
Front: Schwalbe Energizer Plus Tour 700x55c, Rear: Schwalbe Energizer Plus Tour 700x55c
Brakes
Brakes
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
Handlebar
Syncros UC3.0 680mm / Rise 12mm / backsweep 15°
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Perfomance BES3
Battery
PowerTube 500Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 440.5 mm | 440.5 mm | 440.5 mm |
| Front Center | 672 mm | 679 mm | 695 mm |
| Rake | 52 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm |
| Stack | 636 mm | 647 mm | 668 mm |
| Reach | 411 mm | 428 mm | 442 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1148 mm | 1155 mm | 1171 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 688 mm | 692 mm | 698 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Sub Tour eRIDE 20 Lady belongs to the Scott E Sub model. 99 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Scott Sub Cross eRIDE 30 Unisex 2023 is the most affordable e-bike of this model and has a price of 2699$. On the other hand, Scott Sub Sport eRIDE 10 Men 2023, is the most expensive and costs 5108$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3770$. If we compare this with the average Commuter e-bike cost we notice that the price is 46.75% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Sub Tour eRIDE 20 Lady weighs 26.8 kg (59.08 lbs) and is a bit heavier than the average. In conclusion, the average Commuter e-bike weighs 6.35% less than Sub Tour eRIDE 20 Lady.
Overview of components
Fork
This e-bike has the Suntour NVX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Sub Tour eRIDE 20 Lady model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
