Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Voltage A-Frame 26 Hydroformed tubing Super Stiff 6061 Alloy frame Disc Dropout, horizontal for 135x10mm singlespeed
Suspension Fork
Rock Shox PIKE DJ 100mm travel / Air / Lo Comp / Rebound
Drivetrain
Rear Derailleur
Singlespeed
Cassette
Sprocket / 12T
Crank
SCOTT Cr-Mo 3-piece cranks 170mm / 25T Alloy BMX sprocket
Bottom Bracket
Jien-Yuan BB92 / 19mm Axle
Chain
KMC Z510
Pedals
Wellgo B107.N flat
Wheels
Front Hub
Formula DC-51 / 100x15mm / thru axle
Rear Hub
Formula DC42-N w/tracknut / singlespeed
Rims
Syncros MD25 Disc / 32H
Spokes
Stainless 14G / black / 2.0mm
Tires
Schwalbe Table Top Performance 67EPI / wire / 26x2.25
Brakes
Brakes
Shimano BR-M396 Hydraulic Disc / 160mm Rotor
Brake Levers
Shimano BL-M396
Cockpit
Stem
Syncros XM1.5 35mm / 40mm / 0°
Handlebar
Syncros DJ1.5 35mm / 760mm / 40mm Rise Syncros Pro DH dual lock-on grips
Headset
GW 1SI11015Z Integ.
Seat
Saddle
Syncros Pivotal VL-7121
Seatpost
Syncros Pivotal / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.415 mm |
| Bottom Bracket Height | 324 mm |
| Front Center | 667 mm |
| Rake | 42 mm |
| Trail | 90 mm |
| Stack | 570.9 mm |
| Reach | 403.4 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 315 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 380 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 702 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model

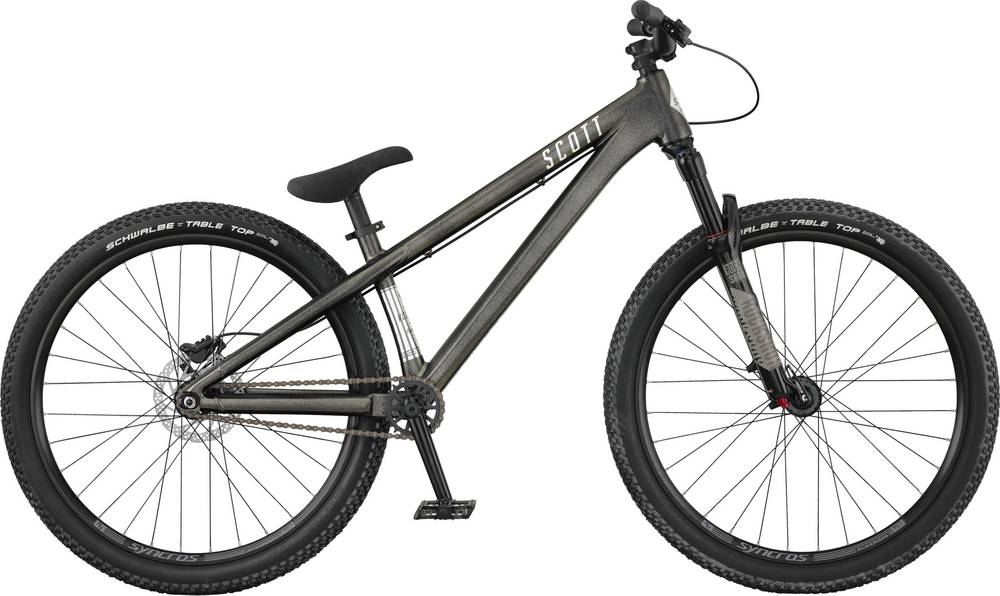

Voltage YZ 0.1 belongs to the Scott Voltage model. Scott released 20 bikes variations of this model so far. You can easily view all of the Scott Voltage bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Dirt Jump bikes
Dirt Jump bikes weigh an average of 12.37 kg (27.27 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Voltage YZ 0.1 weighs 11.8 kg (26.01 lbs) and is slightly lighter than the average. In short, the average Dirt Jump bike weight is 4.83% higher than this one.
Voltage YZ 0.1 components
Fork
The Voltage YZ 0.1 comes factory-installed with the RockShox Pike DJ fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Voltage YZ 0.1 2017 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
