Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Voltage YZ 6061 Alloy Hydroformed tubing Disc Dropout
Suspension Fork
Suntour XCM 100mm travel / preload adj.
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000 / 24 Speed
Front Derailleur
Shimano FD-TY700 / 34.9mm
Shift Levers
Shimano STEF 505 8R
Cassette
Shimano Altus CS-HG31-8 / 11-32T
Crank
Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket
Shimano BB-UN-100
Chain
KMC Z-7
Pedals
Wellgo B107N Black
Wheels
Front Hub
Formula DC-19-FQR
Rear Hub
Formula DC-25-RQR
Rims
Syncros X-20 Disc / 32H / black
Spokes
14 G / stainless / black
Tires
Kenda K-905 26x2.3 / 30 TPI
Brakes
Brakes
Shimano BR-M315 / Hydr. Disc SM-RT10 CL Rotor / 160F/160R
Brake Levers
incl.
Cockpit
Stem
HL TDS-C342 1 1/8" / +/-10°
Handlebar
HL MTB- AL-325BT / Alloy 680mm / 20mm uprise
Headset
Ritchey LOGIC ZERO-OE
Seat
Saddle
Syncros DJ3.0 / Steel rails
Seatpost
HL SP-C212 Alloy / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.54 mm | 1.55 mm | 1.58 mm | 1.57 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 634 mm | 634 mm | 640 mm | 645 mm | 661 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 90 mm | 87 mm | 87 mm | 83 mm | 83 mm |
| Stack | 566 mm | 578 mm | 587 mm | 604 mm | 618 mm |
| Reach | 375 mm | 376 mm | 378 mm | 383 mm | 394 mm |
| Top Tube Length | 538 mm | 548 mm | 558 mm | 568 mm | 583 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 370 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1050 mm | 1050 mm | 1056 mm | 1061 mm | 1077 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 682 mm | 713 mm | 744 mm | 784 mm | 821 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

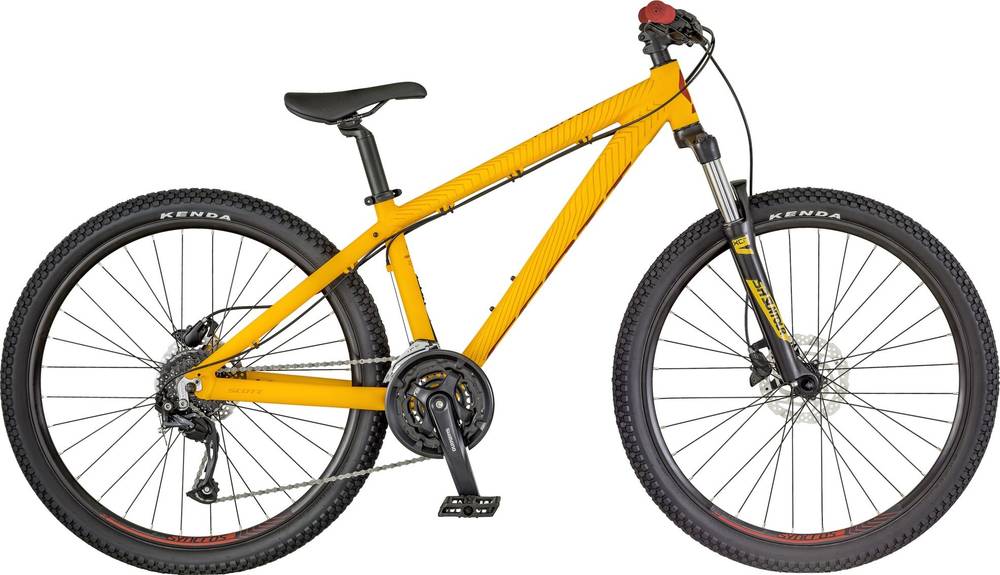

Voltage YZ 10 belongs to the Scott Voltage model. Scott released 20 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Dirt Jump bikes
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, this doesn’t mean that if you spend less money on a Dirt Jump bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Dirt Jump bikes average weight
If we make a quick analysis of the average weight of a Dirt Jump bike, we get 12.37 kg (27.27 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Voltage YZ 10 weighs 13.8 kg (30.42 lbs) and is considerably heavier than the average. In short, the average Dirt Jump bike weight is 11.56% lower than this one.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Voltage YZ 10 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Voltage YZ 10 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
