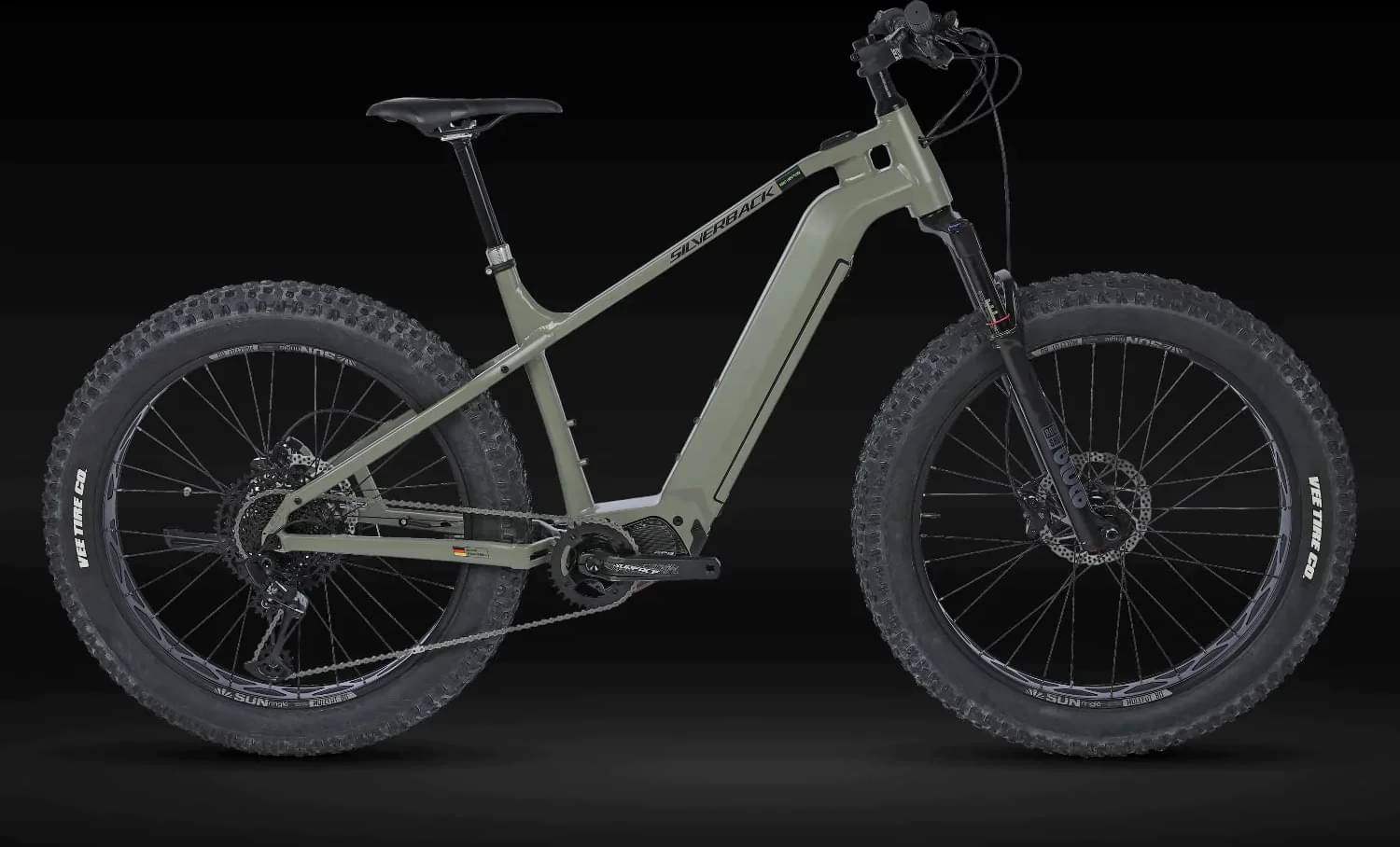

silverback S-Electro Diamond Fat Explorer 2023
2023 E-bike
Estimate price |
5,234$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Fork Manitou Mastodon Comp
-
Groupset NX Eagle -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 171cm
MD
169cm - 180cm
LG
178cm - 190cm
XL
185cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium E - MTB frame, 720wh battery compatible. Shimano STEPs EP8, E8000 or E7000 compatible motor. The geometry is designed for the typical Fat Bike enthusiast making the ride experience feel comfortable on those long rides. This frame has tyre clearance for 26 x 4,8" tyres. Sizes range from S - XL
Suspension Fork
Manitou Mastodon Comp,Air Suspension fork,1.5" Tapered Steerer, 120 mm Travel, 15X150mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed, 50T
Shift Levers
L: NIL; R: SRAM SX Eagle Trigger Shifter
Cassette
SRAM SX Eagle, 11-50T
Crank
Alloy Fat Bike Crank, Anodized Black, EP8
Bottom Bracket
STEPS, press-fit
Chain
SRAM SX Eagle, 12 Speed
Wheels
Front Hub
F: SUNringlé SRC 150x15, 6 Bolt
Rear Hub
F: SUNringlé SRC 150x15, 6 Bolt
Rims
F: SUNringlé Mulefüt 80SL, Tubeless Ready
Tires
F: VEE Tire Bulldozer 26x4.7", Foldable, Tubeless Ready, 72TPI
Brakes
Brakes
F: Shimano BR-MT410, Resin Pads
Cockpit
Stem
SURFACE Alloy Stem, 31.8mm, Rise 6°, with stainless steel bolts
Handlebar
SURFACE Alloy Handlebar, Dia:31.8mm, Backsweep:9°, Rise 5mm
Grips
SBC Lockon Grip
Headset
Token TK035A-15 Sealed Bearing
Seat
Saddle
SURFACE E-BIKE saddle, Black, Cromo Rails
Seatpost
SURFACE Dropper Post with remote lock out, 30,9mm
Motor & Battery
Motor
Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque
Battery
Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight
Charger
Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.48 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm |
| Stack | 653 mm | 653 mm | 663 mm | 663 mm |
| Reach | 432 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 617 mm | 627 mm | 650 | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 465 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 145 mm | 145 mm | 155 mm | 155 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1192 mm | 1201 mm | 1225 mm | 1245 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 830 mm | 837 mm | 833 mm | 825 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 171 cm | 180 cm | 190 cm | 210 cm |
About this model
S-Electro Diamond Fat Explorer is part of the Silverback E S Electro model. There are 14 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Silverback S-Electro Stride Electric 27.5 9 SPEED 2023 has a starting price of 2335$. Silverback S-Electro Pro CF 1 2023 on the other hand is the most expensive at 8493$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fatbike e-bikes
Our math shows that the average cost of a dependable Fatbike e-bike is 2033$. However, even though the average price of a Fatbike e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. Comparing the average cost of a Fatbike e-bike to this one, you will see that S-Electro Diamond Fat Explorer price is 134.97% higher.
Average weight for Fatbike e-bikes
On a deeper look, we notice that the average weight of a Fatbike e-bike is 31.21 kg (68.81 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, S-Electro Diamond Fat Explorer has a weight of 24.8 kg (54.67 lbs). To sum up, it’s 25.85% lighter than the average weight of Fatbike e-bikes.
Overview of components
Fork
The S-Electro Diamond Fat Explorer comes factory-installed with the Manitou Mastodon Comp fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The S-Electro Diamond Fat Explorer 2023 e-bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Electro Diamond Fat Explorer has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Silverback S-Electro Diamond Fat Explorer e-bike has 4 sizes, in the range of 154 cm – 210 cm (5.05 ft – 6.89 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Silverback S-Electro Diamond Fat Explorer comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
