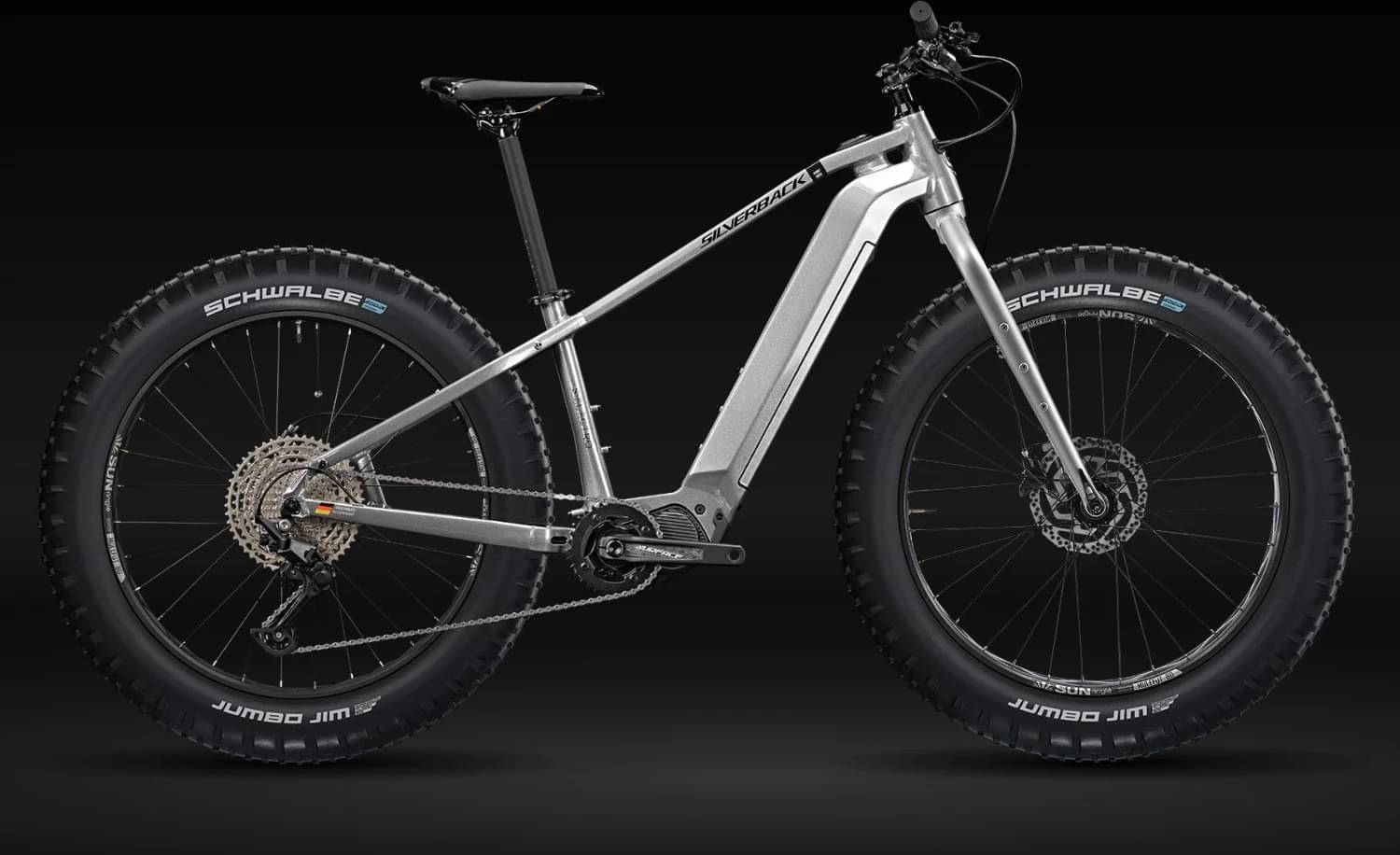

silverback S-Electro Diamond Fat Sport 2023
2023 E-bike
Estimate price |
3,440$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Deore -
Suspension Rigid -
Motor Shimano mid-drive -
Battery Darfon 504Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 171cm
MD
169cm - 180cm
LG
178cm - 190cm
XL
185cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium E - MTB frame, Shimano E7000 motor. The geometry is designed for the typical Fat Bike enthusiast making the ride experience feel comfortable on those long rides. This frame has tyre clearance for 26 x 4.8" tyres.
Suspension Fork
SBC alloy ridig fat bike fork, 150x15mm Thru Axle
Drivetrain
Rear Derailleur
Shimano RD-M4100 Deore, 10 Speed
Shift Levers
R: Shimano SL-M4100-R Deore, 10 Speed Rapidfire Plus
Cassette
Shimano CS-M4100 Deore, 10 Speed 11-46T
Crank
Alloy Fat Bike Crank, E7000
Chain
Shimano E-BIKE 10spd
Wheels
Front Hub
F: SUNringlé SRC 150x15mm, 6 Bolt
Rear Hub
F: SUNringlé SRC 150x15mm, 6 Bolt
Rims
F: SUNringlé Mulefüt 80SL, Tubeless Ready
Tires
F: SCHWALBE JUMBO JIM PERFORMANCE ADDIX 26+ 26x4.0", Foldable, 67TPI
Brakes
Brakes
F: Shimano MT200, Resin Pads
Cockpit
Stem
SURFACE Alloy, 31.8mm, Rise 6°, with stainless steel bolts
Handlebar
SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm
Grips
SBC Lockon Grip
Headset
Token TK035A-15 Sealed Bearing
Seat
Saddle
SURFACE E-BIKE saddle, Black, Cromo Rails
Seatpost
SURFACE Alloy
Motor & Battery
Motor
Shimano EP7000 Drive Unit, Mid-Position, 25km/h, 60N.m Torque
Battery
Darfon 504Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight
Charger
Darfon Smart Plus, 100-240V, 4A, EU use
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.48 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm |
| Stack | 653 mm | 653 mm | 663 mm | 663 mm |
| Reach | 432 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 617 mm | 627 mm | 650 | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 465 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 145 mm | 145 mm | 155 mm | 155 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1192 mm | 1201 mm | 1225 mm | 1245 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 830 mm | 837 mm | 833 mm | 825 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 171 cm | 180 cm | 190 cm | 210 cm |
Model Overview
S-Electro Diamond Fat Sport belongs to the Silverback E S Electro model. Silverback launched 14 e-bikes of this model so far. You can easily view all of the Silverback E S Electro e-bikes models from 2023, here.
Model range prices
Silverback S-Electro Stride Electric 27.5 9 SPEED 2023 is the cheapest e-bike model and costs 2335$. Silverback S-Electro Pro CF 1 2023 is the most expensive one and costs 8493$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fatbike e-bikes
If you want to purchase a solid Fatbike e-bike, it is important to know that the average cost is 2033$. However, you could also get a good Fatbike e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Silverback S-Electro Diamond Fat Sport price was 3184$. In conclusion, this e-bike price is 56.62% higher than the price of the average Fatbike e-bike.
Average weight for Fatbike e-bikes
Fatbike e-bikes have an average weight of 31.21 kg (68.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Silverback S-Electro Diamond Fat Sport it’s weighing 25.5 kg (56.22 lbs). At this weight, is much lighter than average. To sum up, it’s 22.39% lighter than the average weight of Fatbike e-bikes.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The S-Electro Diamond Fat Sport 2023 e-bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Silverback S-Electro Diamond Fat Sport has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
S-Electro Diamond Fat Sport comes in 4 sizes, that range from 154 cm – 210 cm (5.05 ft – 6.89 ft). In conclusion, it won’t take much to find one that’s right for you.
