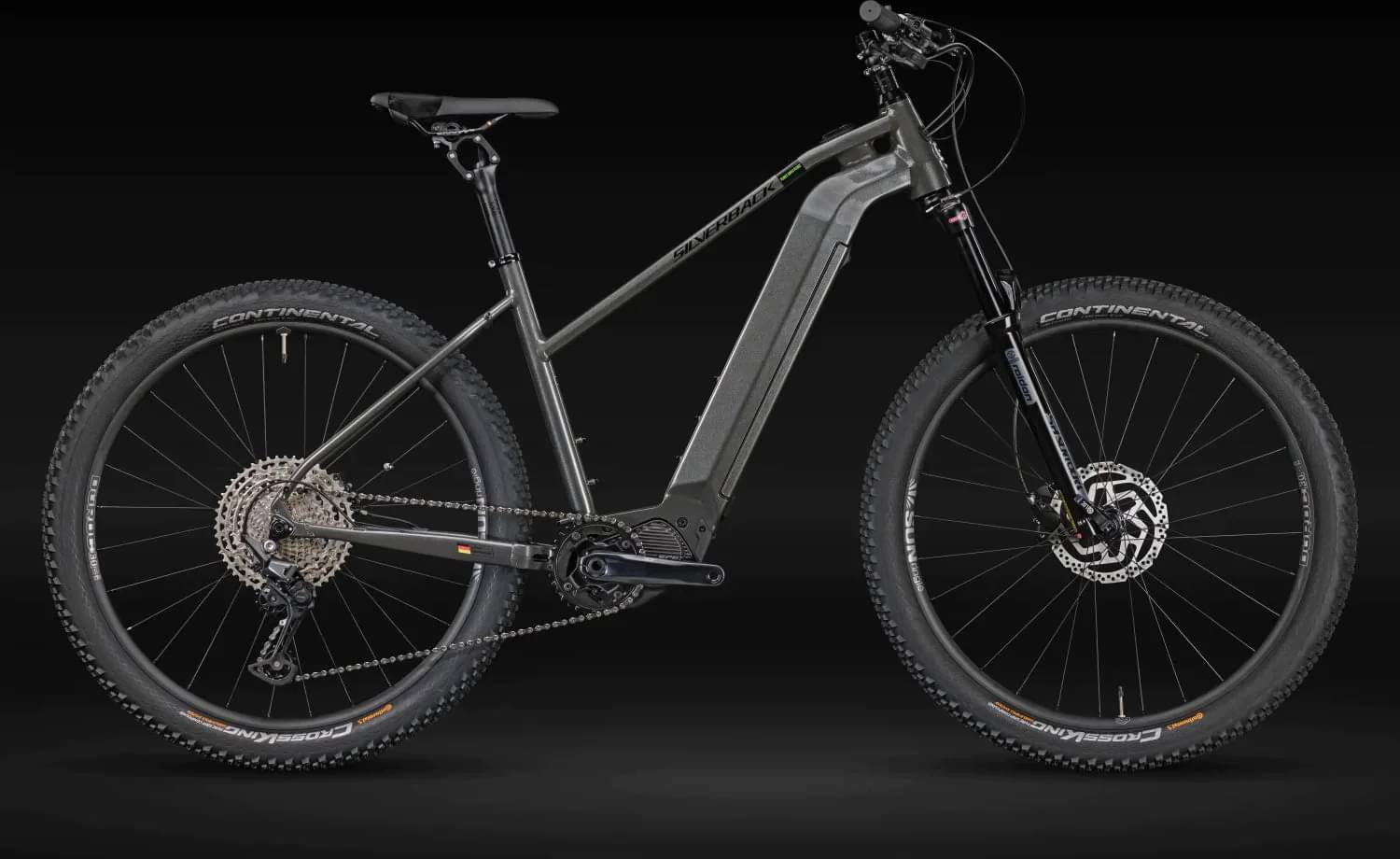

silverback S-Electro Diamond Step 1 2023
2023 E-bike
Estimate price |
4,652$
Weight | 21.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 171cm
MD
169cm - 180cm
LG
178cm - 190cm
XL
185cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. The geometry is designed for an all day easy trail ride or a commute to your preferred destination. This is a Step through frame making it easier to get your leg over the TT. This frame has tyre clearance for 29 x 2,6" tyres. Sizes range from S - XL
Suspension Fork
Suntour SF19 Raidon32-DS-Boost-RL-R-15QLC32 29 CTS, 120mm Travel, Tapered Steerer, Matt Black, Boost 110mm Thru Axle
Drivetrain
Rear Derailleur
Shimano RD-M5100 Deore, 11 Speed
Shift Levers
R: Shimano SL-M5100-R Deore, 11 Speed Rapidfire Plus
Cassette
Shimano CS-M5100 Deore, 11 Speed 11-51T
Crank
Shimano FC-EM600
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG601-11, 11spd
Wheels
Front Hub
F: Shimano HB-MT410-B, 32H, 15mm Thru-Axle, 110mm OLD
Rear Hub
F: Shimano HB-MT410-B, 32H, 15mm Thru-Axle, 110mm OLD
Rims
F: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width
Tires
F: Maxxis Forekaster 29 x 2,35", 120 tpi, EXO
Brakes
Brakes
F: Shimano MT200, Resin Pads
Cockpit
Stem
SURFACE High-Rise alloy
Handlebar
SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm
Grips
SURFACE ERGO
Headset
Token TK035A-15 Sealed Bearing
Seat
Saddle
SURFACE E-BIKE saddle, Cromo Rails
Seatpost
SURFACE Suspension Post w/Protective Cover, 30.9mm
Motor & Battery
Motor
Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque
Battery
Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight
Charger
Darfon Smart Plus, 100-240V, 4A, EU use
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.56 mm | 1.5 mm | 1.42 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Stack | 666 mm | 666 mm | 670 mm | 675 mm |
| Reach | 417 mm | 427 mm | 447 mm | 477 mm |
| Top Tube Length | 606 mm | 616 mm | 637 mm | 669 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 465 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1170 mm | 1180 mm | 1202 mm | 1234 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 808 mm | 806 mm | 801 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 171 cm | 180 cm | 190 cm | 210 cm |
About this model
S-Electro Diamond Step 1 is a Silverback E S Electro model. 14 e-bikes variations carry this model name so far. You can easily view all of the Silverback E S Electro e-bikes models from 2023, here.
Model range prices
The most economical model, the Silverback S-Electro Stride Electric 27.5 9 SPEED 2023 has a starting price of 2335$. Silverback S-Electro Pro CF 1 2023 on the other hand is the most expensive at 8493$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. In conclusion, this e-bike price is 26.18% more expensive than the price of the average Trail e-bike.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
S-Electro Diamond Step 1 weighs 21.5 kg (47.4 lbs) and is considerably lighter than the average. In other words, this model is 10.23% lighter than the average Trail e-bike.
S-Electro Diamond Step 1 components
Fork
The Suntour RAIDON is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The S-Electro Diamond Step 1 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
S-Electro Diamond Step 1 comes in 4 sizes, that range from 154 cm – 210 cm (5.05 ft – 6.89 ft). In conclusion, you won’t have a problem finding one that suits you.
