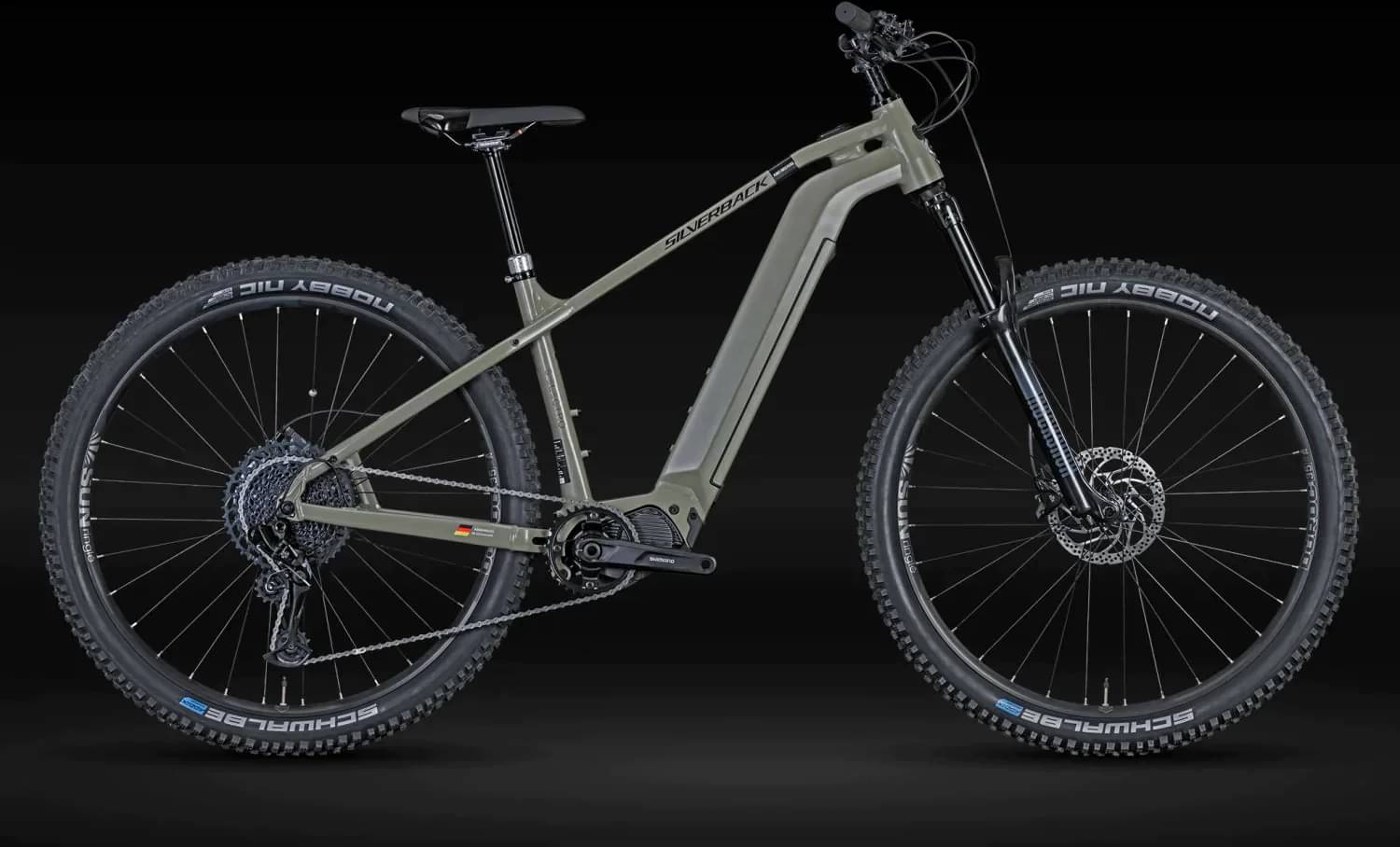

silverback S-Electro Diamond Trail 2023
2023 E-bike
Estimate price |
4,652$
Weight | 21.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 171cm
MD
169cm - 180cm
LG
178cm - 190cm
XL
185cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. Battery integrated inside frame.The geometry is designed for trail riding. This frame has tyre clearance for 29 x 2.6" tyres.
Suspension Fork
RockShox 35 Gold RL Debon Air 29" - 140mm - 44mm Offset
Drivetrain
Rear Derailleur
Shimano RD-M5100 Deore, 11 Speed
Shift Levers
R: Shimano SL-M5100-R Deore, 11 Speed Rapidfire Plus
Cassette
Shimano CS-M5100 Deore, 11 Speed 11-51T
Crank
Shimano FC-EM600
Bottom Bracket
STEPS, press-fit
Chain
KMC X11-1 11 Speed
Wheels
Front Hub
F: Shimano 15x110mm, 6 Bolt
Rear Hub
F: Shimano 15x110mm, 6 Bolt
Rims
F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width
Tires
F: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra
Brakes
Brakes
F: Shimano MT410, Resin Pads
Cockpit
Stem
SURFACE Trail alloy Stem
Handlebar
SURFACE alloy Trail 35mm Handlebar, Backsweep 6°, Rise 12mm
Grips
SBC Lockon Grip
Headset
Token TK035A-15 Sealed Bearing
Seat
Saddle
SURFACE E-bike Ergo
Seatpost
SURFACE Dropper, 30.9mm
Motor & Battery
Motor
Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque
Battery
Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight
Charger
Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.44 mm | 1.36 mm |
| Bottom Bracket Height | 314.5 mm | 314.5 mm | 314.5 mm | 314.5 mm |
| Stack | 675.8 mm | 675.8 mm | 685 mm | 685 mm |
| Reach | 432 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 599 mm | 619 mm | 646 mm | 671 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 135 mm | 135 mm | 145 mm | 145 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1214 mm | 1234 mm | 1263 mm | 1288 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 837 mm | 836 mm | 841 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 171 cm | 180 cm | 190 cm | 210 cm |
Model Overview
S-Electro Diamond Trail is a Silverback E S Electro model. Silverback launched 14 e-bikes of this model so far. Take a sneak peek at all Silverback E S Electro e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Silverback S-Electro Stride Electric 27.5 9 SPEED 2023 has a starting price of 2335$. Silverback S-Electro Pro CF 1 2023 on the other hand is the most expensive at 8493$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Silverback S-Electro Diamond Trail price was 4246$. Comparing this to the average Trail e-bike price, we see that the price is 26.18% more expensive.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 21.5 kg (47.4 lbs), Silverback e-bike is considerably lighter than average. In short, the average Trail e-bike weight is 10.23% higher than this one.
S-Electro Diamond Trail components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The S-Electro Diamond Trail 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Silverback S-Electro Diamond Trail is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 154 cm – 210 cm (5.05 ft – 6.89 ft). In short, you can easily find one that suits you.
Dropper post
Silverback S-Electro Diamond Trail includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
