Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
144cm - 154cm
XS
152cm - 165cm
SM
163cm - 172cm
MD
170cm - 178cm
LG
176cm - 185cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

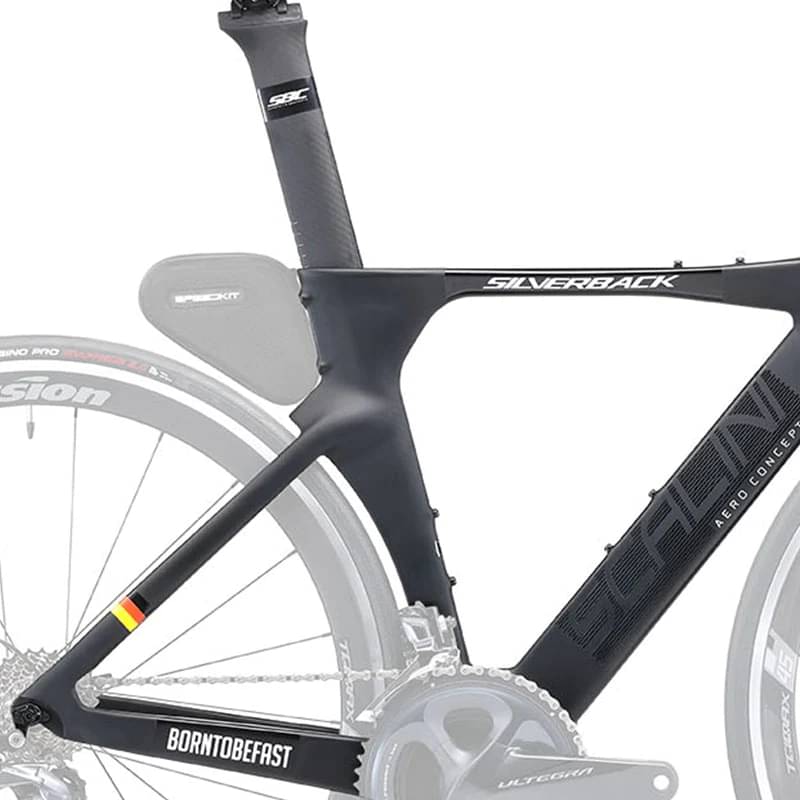

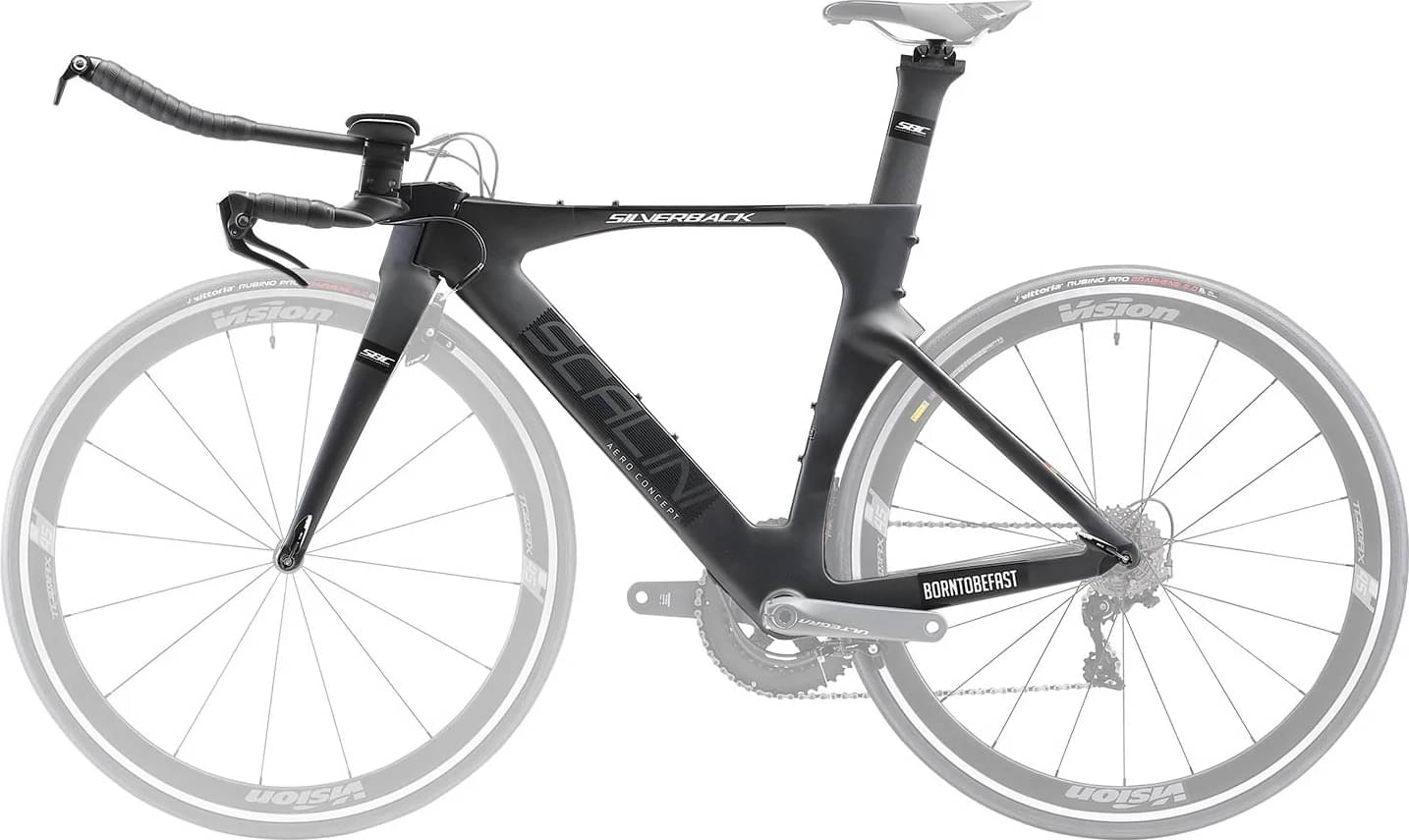

Frame
Frame
Silverback Time Trial Carbon, 700c, Full guided internal routing.
Suspension Fork
700c Full UD Carbon, Carbon Steerer, 43mm Offset
Drivetrain
Rear Derailleur
Shimano FD-R8000 Ultegra 11spd, Shadow
Front Derailleur
Shimano FD-R8000 Ultegra
Shift Levers
Shimano Dura-Ace Bar-end type shifters
Cassette
Shimano CS-R7000, 105, 11spd, 11-28t
Crank
Shimano FC-R8000 52 x 36t
Wheels
Front Hub
Vision Sealed Cartridge alloy hubs, 2 bearings front, 4 bearings rear, 10/11spd, Aero bladed spokes
Rear Hub
Vision Sealed Cartridge alloy hubs, 2 bearings front, 4 bearings rear, 10/11spd, Aero bladed spokes
Tires
Vittoria Rubino Pro 700 x 25c, Kevlar Bead, Foldable
Brakes
Brakes
TRP Aero V-Brake Front, Shimano Ultegra Rear

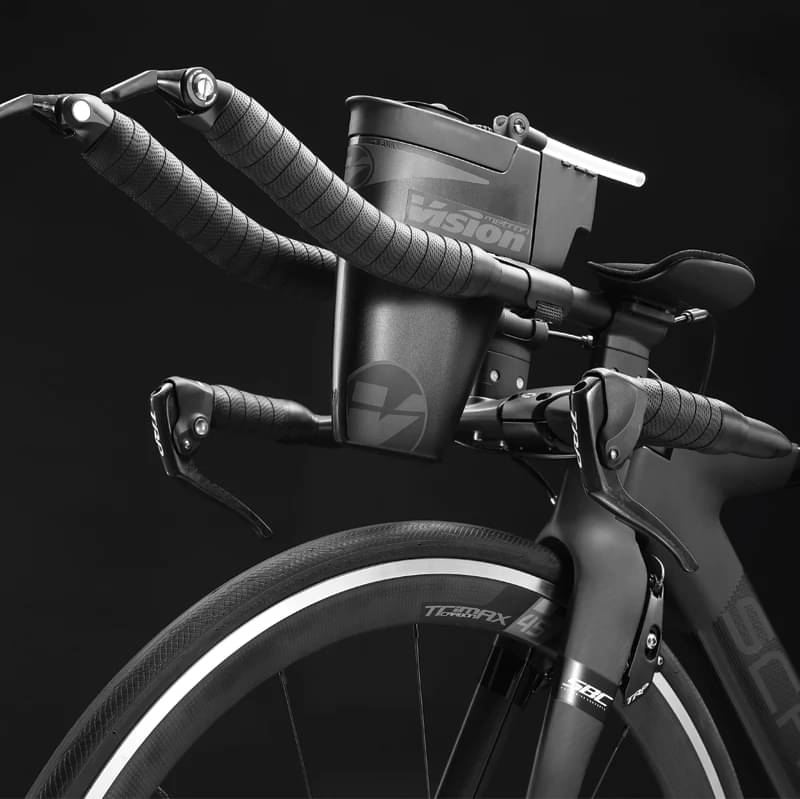

Cockpit
Stem
Surface Alloy, 30mm rise

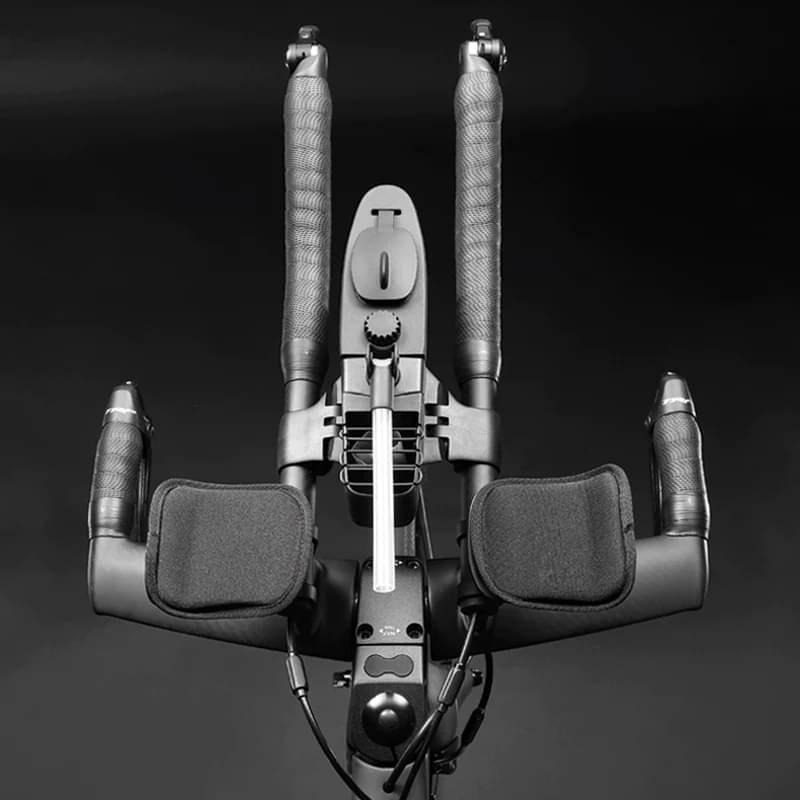

Handlebar
Surface Carbon Fiber 31.8mm, 130mm Reach, 15mm Drop, 400mm W
Seat
Saddle
Surface TT, Cr-Mo Rail
Seatpost
Surface Carbon Fiber, 350mm L
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.37 mm | 1.4 mm | 1.41 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 272 mm | 272 mm | 272 mm |
| Stack | 490 mm | 507 mm | 518 mm | 531 mm | 547 mm | 567 mm |
| Reach | 363 mm | 369 mm | 376 mm | 388 mm | 392 mm | 401 mm |
| Top Tube Length | 496 mm | 506 mm | 521 mm | 541 mm | 556 mm | 576 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 413 mm | 453 mm | 493 mm | 533 mm | 563 mm | 593 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 73.25 ° | 73.25 ° | 73.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm | 150 mm | 170 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 404 mm | 404 mm |
| Wheelbase | 968 mm | 970 mm | 976 mm | 972 mm | 985 mm | 997 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 758 mm | 775 mm | 786 mm | 799 mm | 815 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 144 cm | 152 cm | 163 cm | 170 cm | 176 cm | 183 cm |
| Rider Max Height | 154 cm | 165 cm | 172 cm | 178 cm | 185 cm | 193 cm |
About this model
Scalini Frame is a Silverback Scalini model. Silverback released 2 frames variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Triathlon frames
If you want to purchase a solid Triathlon frame, it is important to know that the average cost is 3089$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Silverback Scalini Frame price was 2123$. If we compare this with the average Triathlon frame cost we notice that the price is 45.5% smaller.

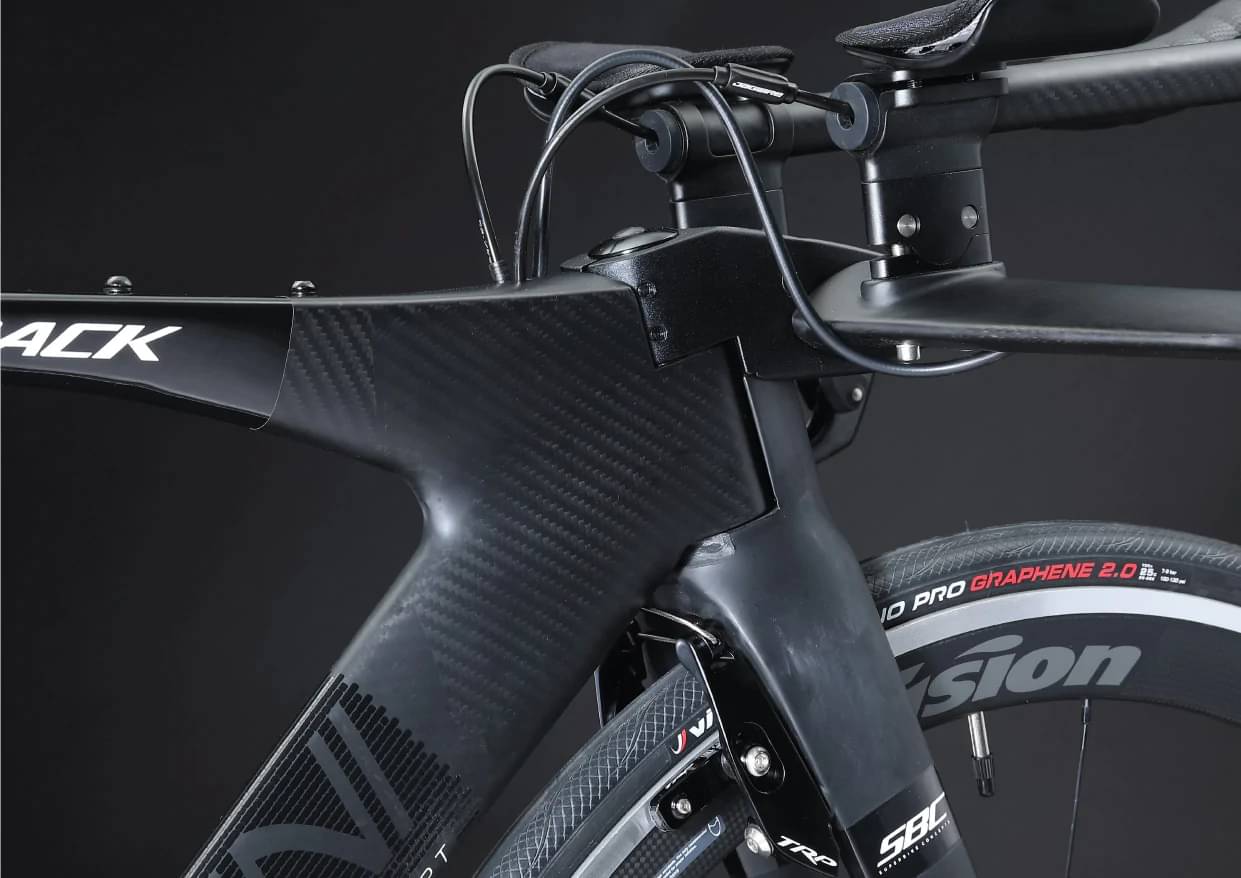

Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Scalini Frame components

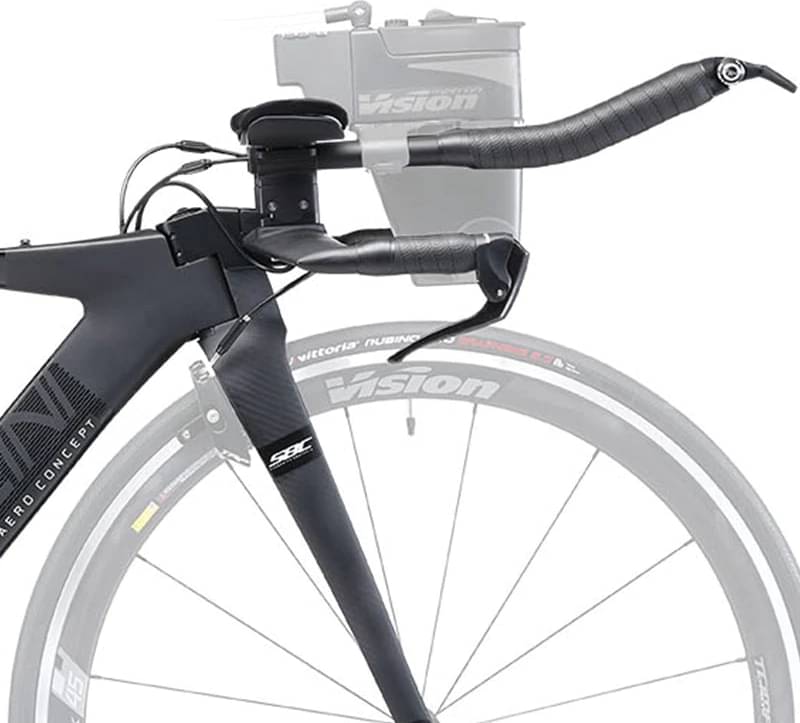

Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
For your safety, it is important to have quality breaks on your bike. Silverback Scalini Frame has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Silverback Scalini Frame frame has 6 sizes, in the range of 144 cm – 193 cm (4.72 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
