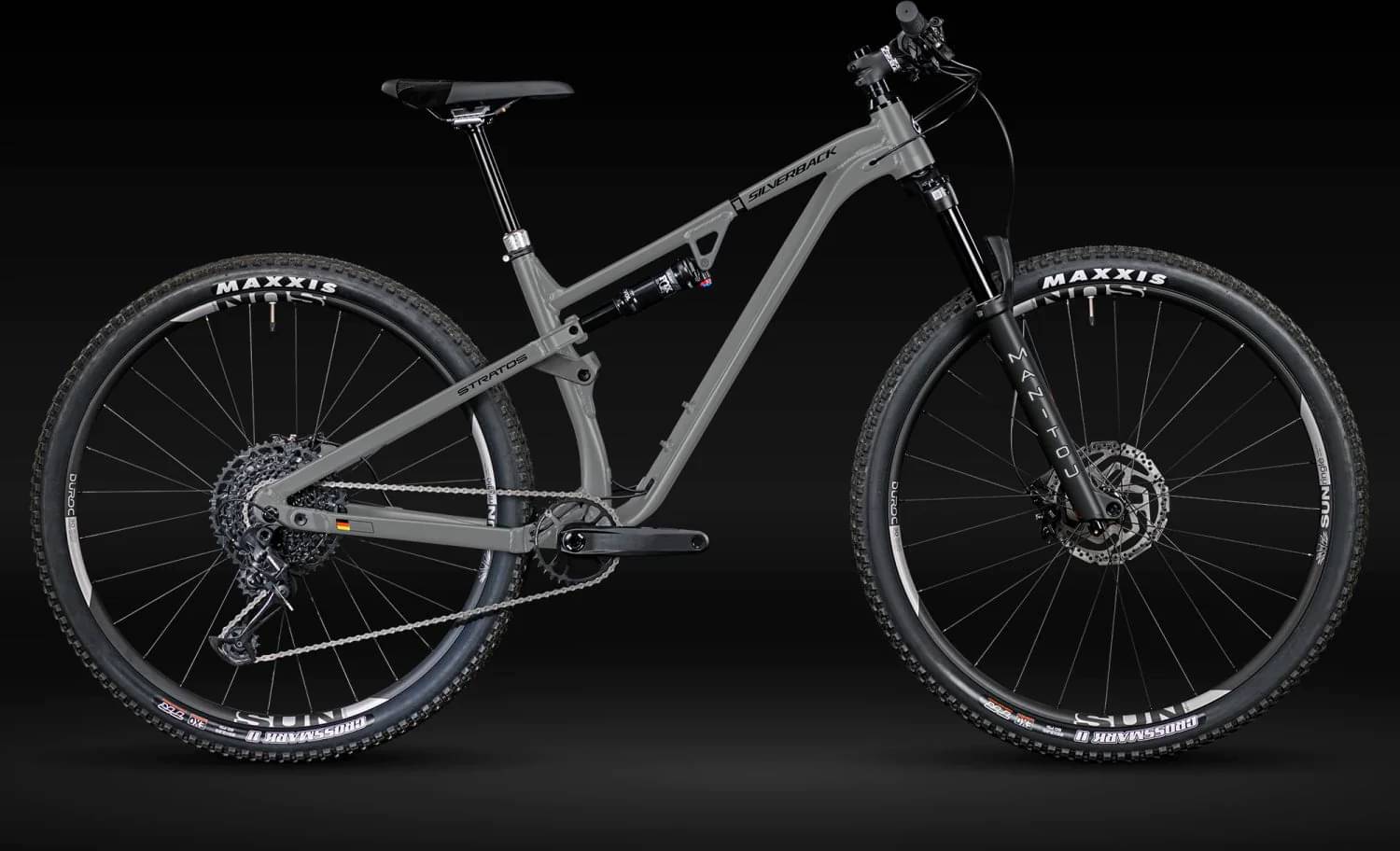

silverback Stratos AL Elite 2023
2023 Mountain
Estimate price |
2,522$
Weight | 14.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Manitou
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
168cm - 180cm
LG
178cm - 192cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium XC/Trail frame based on the award-winning Stratos CF platform. The Stratos AL is designed around 130mm travel front & 105mm rear to provide a little extra comfort with almost no performance trade-off.
Suspension Fork
Manitou Machette 29" Air, 15x110mm Boost Thru-Axle, 130mm Travel
Rear Shock
SR Suntour RS21 EDGE-PLUS 2CR, Air Spring
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100, 11 Speed
Shift Levers
R: Shimano Deore SL-M5100-R, 11 Speed, Rapidfire Plus
Cassette
Shimano Deore CS-M5100, 11 Speed, 11-51T
Crank
Alloy Crankset, 32T Narrow-Wide, External BB
Bottom Bracket
BSA73
Chain
Shimano CN-HG601-11, 11 Speed
Pedals
Not Included
Wheels
Front Hub
F: Shimano HB-MT400-B, 32H, 15x110mm Thru-Axle
Rear Hub
F: Shimano HB-MT400-B, 32H, 15x110mm Thru-Axle
Rims
SURFACE 29" Asymmetrical Alloy Rim, Tubeless Ready
Tires
Maxxis Forekaster 29x2.35", Wire Bead
Brakes
Brakes
Tektro MD-M275 Hydraulic Disc
Cockpit
Stem
SURFACE Alloy Stem, 31.8mm, Rise 6°, with stainless steel bolts
Handlebar
SURFACE Alloy, Dia: 31,8mm, 760mm, 9° Backsweep, 20mm Rise
Grips
SURFACE Double Density Lock-On Grips
Headset
Steel Semi-Integrated, ZS44/28.6 ZS56/40
Seat
Saddle
SURFACE
Seatpost
SURFACE Dropper with Lever, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 609 mm | 618 mm | 628 mm | 637 mm |
| Reach | 432 mm | 452 mm | 472 mm | 492 mm |
| Top Tube Length | 582 mm | 605 mm | 627 mm | 649 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1165 mm | 1189 mm | 1213 mm | 1237 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 790 mm | 796 mm | 805 mm | 812 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 192 cm | 200 cm |
About this model
Stratos AL Elite is part of the Silverback Stratos model. Silverback released 23 bikes variations of this model so far. You can easily view all of the Silverback Stratos bikes models from 2023, here.
Model range prices
Silverback Stratos AL Comp MS 2023 is the cheapest bike model and costs 2016$. Silverback Stratos CF SBC 2023 is the most expensive one and costs 6582$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 2335$. Doing a quick comparison, we notice that Stratos AL Elite price is 18.29% lower than the average cost of a Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Silverback Stratos AL Elite it’s weighing 14.2 kg (31.31 lbs). At this weight, is considerably heavier than average. To sum up, it’s 10.25% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Stratos AL Elite comes factory-installed with the Manitou fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Stratos AL Elite has a rear shock with a travel of 130mm. The model SR Suntour RS21 EDGE-PLUS 2CR is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Stratos AL Elite 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Silverback Stratos AL Elite is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Stratos AL Elite comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Silverback Stratos AL Elite comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
