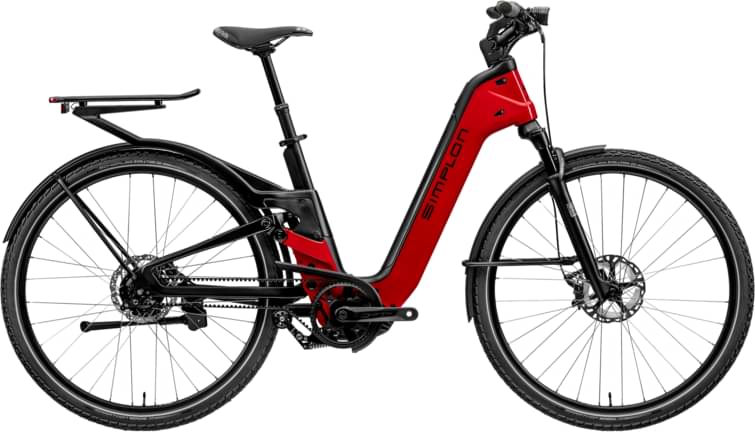

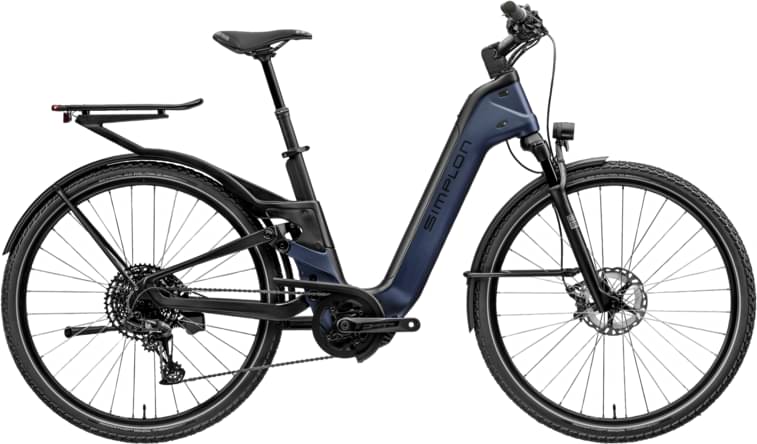

simplon Chenoa MAX B3; UNI XT-11LG 2023
2023 Urban
Estimate price |
9,060$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset XT, FSA -
Suspension Full -
Battery Bosch Performance Line CX BES3 +Bosch Powertube 625 horizont -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa MAX, Cosmic Red Glossy | Black Matt, S (40)
Suspension Fork
Rockshox Recon Gold RL 65mm
Rear Shock
Rock Shox Deluxe SELECT
Drivetrain
Rear Derailleur
Shimano Deore-XT 11, Linkglide
Shift Levers
Shimano Deore-XT 11, Linkglide
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Smart Sam Plus 57-622
Tires
Schwalbe SMART SAM 28 x 2,25"
Brakes
Brakes
Shimano Deore-XT 11, Linkglide
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Acros AZA-642
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Battery
Bosch Performance Line CX BES3 +Bosch Powertube 625 horizont
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.548 mm | 1.545 mm |
| Front Center | 683 mm | 694 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm | 88 mm |
| Stack | 628 mm | 641 mm | 655 mm |
| Reach | 408 mm | 414 mm | 424 mm |
| Top Tube Length | 606 mm | 616 mm | 631 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 522 mm | 522 mm | 522 mm |
| Wheelbase | 1199 mm | 1210 mm | 1226 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Standover Height | 395 mm | 395 mm | 395 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Chenoa MAX B3; UNI XT-11LG is part of the Simplon Chenoa model. Simplon released 7 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Simplon Chenoa MAX Sram NX Eagle 2023 has a starting price of 7431$. Simplon Chenoa MAX B3; UNI R14 2023 on the other hand is the most expensive at 9449$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Simplon released this model in 2023, its price was 8387$. In conclusion, this bike price is 1000.66% more expensive than the price of the average Commuter bike.
Overview of components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 65mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Chenoa MAX B3; UNI XT-11LG are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Chenoa MAX B3; UNI XT-11LG has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Chenoa MAX B3; UNI XT-11LG comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Simplon Chenoa MAX B3; UNI XT-11LG includes a dropper post. Therefore, climbing or descending will be a breeze.
