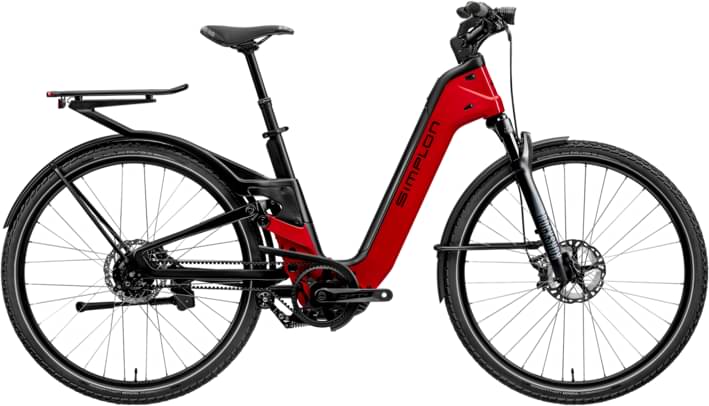

simplon Chenoa MAX Rohloff E14 2024
2024 Urban
Estimate price |
11,167$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset FSA -
Suspension Full -
Battery Bosch Performance Line CX BES3 +Bosch Powertube 625 horizont -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa MAX, Cosmic Red Glossy | Black Matt, M (47)
Suspension Fork
Rockshox Recon Gold RL 65mm
Rear Shock
Rock Shox Deluxe SELECT
Drivetrain
Shift Levers
Gear hub Rohloff E14;belt drive
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 8.6 Disc-FDT15*110-Rohloff E14-Schwalbe Marathon Mon
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Gear hub Rohloff E14;belt drive
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON RISER 700 High
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Battery
Bosch Performance Line CX BES3 +Bosch Powertube 625 horizont
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.548 mm | 1.545 mm |
| Front Center | 683 mm | 694 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm | 88 mm |
| Stack | 628 mm | 641 mm | 655 mm |
| Reach | 408 mm | 414 mm | 424 mm |
| Top Tube Length | 606 mm | 616 mm | 631 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 522 mm | 522 mm | 522 mm |
| Wheelbase | 1199 mm | 1210 mm | 1226 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Standover Height | 395 mm | 395 mm | 395 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Chenoa MAX Rohloff E14 belongs to the Simplon Chenoa model. 15 bikes variations carry this model name so far. You can easily view all of the Simplon Chenoa bikes models from 2024, here.
Model range prices
Simplon Chenoa MAX Sram NX Eagle 2024 is the cheapest bike model and costs 7411$. Simplon Chenoa MAX Rohloff E14 2024 is the most expensive one and costs 10165$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 10165$. Comparing this to the average Commuter bike price, we see that the price is 1233.99% more expensive.
Chenoa MAX Rohloff E14 components
Fork
The Chenoa MAX Rohloff E14 comes factory-installed with the RockShox Recon Gold RL fork. This has a travel range of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Chenoa MAX Rohloff E14 2024 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Chenoa MAX Rohloff E14 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
The Simplon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
