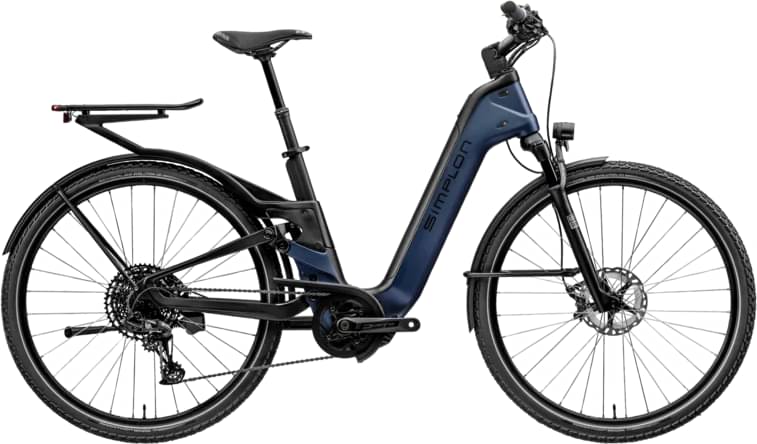

simplon Chenoa MAX Uni, E14 2022
2022 E-bike
Estimate price |
10,353$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset FSA -
Suspension Full -
Battery Bosch Performance Line CX + Power T. 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa MAX, cosmic red/black matt, 400
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Rear Shock
Rock Shox Deluxe SELECT
Drivetrain
Rear Derailleur
Rohloff E14 für Chenoa MAX (Riemen)
Shift Levers
Rohloff E14 für Chenoa MAX (Riemen)
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5D-FDT5*100-E14OEM2,12*142,Sam+Re54,SH
Tires
Schwalbe SMART SAM 28 x 2,1"
Brakes
Brakes
T8120(4/2K);PM6;PM7;2*180;CL/4H;RO
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Headset Acros AIX-342
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Battery
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.548 mm | 1.545 mm |
| Front Center | 683 mm | 694 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm | 88 mm |
| Stack | 628 mm | 641 mm | 655 mm |
| Reach | 408 mm | 414 mm | 424 mm |
| Top Tube Length | 606 mm | 616 mm | 631 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 522 mm | 522 mm | 522 mm |
| Wheelbase | 1199 mm | 1210 mm | 1226 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Standover Height | 395 mm | 395 mm | 395 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Chenoa MAX Uni, E14 is a Simplon E Chenoa model. 43 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Simplon Chenoa UNI 8L 2022 has a starting price of 4883$. Simplon Chenoa MAX Uni, E14 2022 on the other hand is the most expensive at 9449$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 9449$. Doing a quick comparison, we notice that Chenoa MAX Uni, E14 price is 267.81% more expensive than the average cost of a Commuter e-bike.
Overview of components
Fork
The Chenoa MAX Uni, E14 comes factory-installed with the RockShox Paragon Gold RL fork. This has a travel range of 65mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Chenoa MAX Uni, E14 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Chenoa MAX Uni, E14 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Simplon Chenoa MAX Uni, E14 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
