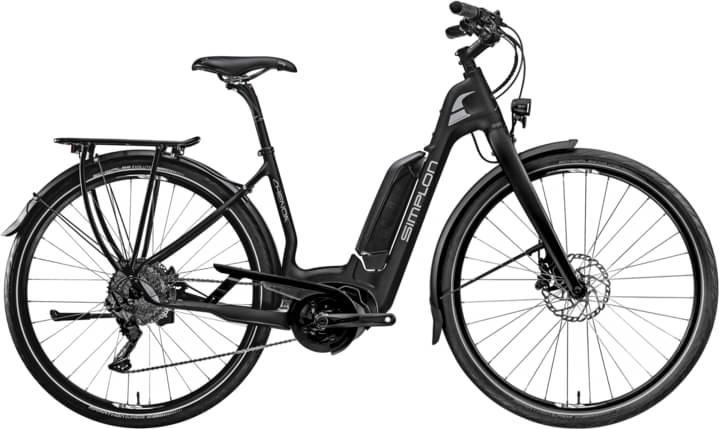

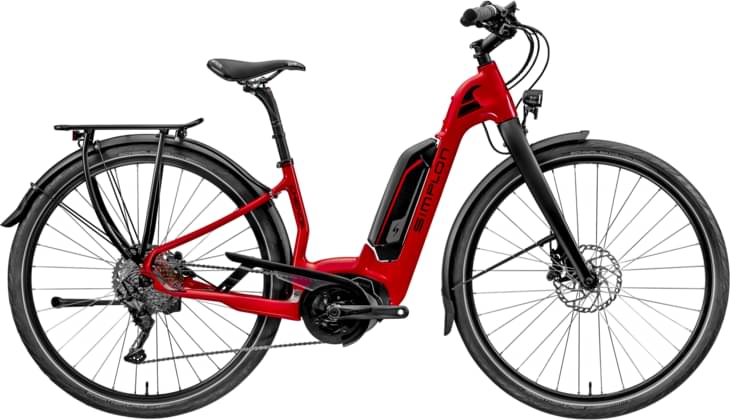

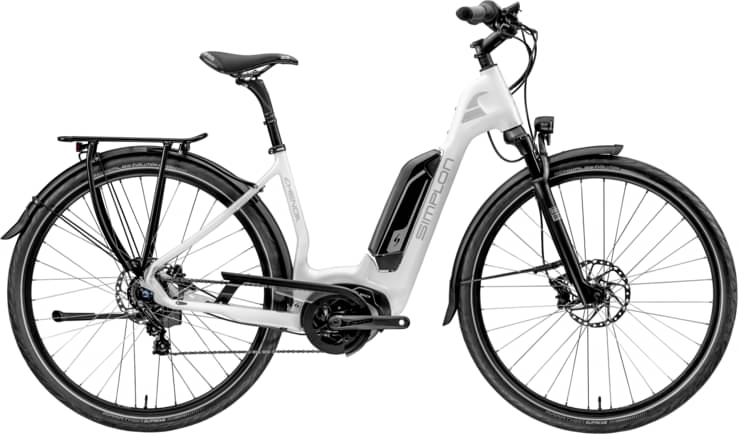

simplon Chenoa Uni Shimano Nexus 8L 2023
2023 E-bike
Estimate price |
5,234$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Nexus, FSA -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Uni, Black Matt | Silver Matt, S (40)
Suspension Fork
Simplon F10.3 Carbon/ Schwarz
Drivetrain
Shift Levers
Shimano Nexus 8L
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Marathon Almotion 40-622
Tires
Schwalbe MARATHON ALMOTION 28 x 1,5"
Brakes
Brakes
Magura MT4;2-Kolben (pistons);180mm;180mm
Cockpit
Stem
Simplon ZERO II 80mm x 17°
Handlebar
Simplon CARBON RISER 680
Grips
Griffe Ergon GP10 L - Nexus
Headset
Headset Acros AZX-201
Seat
Saddle
Sportourer ZOO Flow Woman
Seatpost
CARBON ROD VT, 27.2x320mm, 25mm Offset
Motor & Battery
Motor
Bosch Active Line Plus BES32+Bosch Powerpack 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 47cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.584 mm | 1.576 mm |
| Front Center | 659 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 389 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1139 mm | 1160 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
Chenoa Uni Shimano Nexus 8L completes the Simplon E Chenoa model. 43 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Simplon Chenoa Uni Shimano Nexus 8L 2023 is the cheapest e-bike model and costs 4777$. Simplon Chenoa Bosch CX B3; HE R14 SPEED (only in Switzerland) 2023 is the most expensive one and costs 9130$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. Comparing the average cost of a Commuter e-bike to this one, you will see that Chenoa Uni Shimano Nexus 8L price is 85.95% more expensive.
Chenoa Uni Shimano Nexus 8L components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Simplon Chenoa Uni Shimano Nexus 8L 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Chenoa Uni Shimano Nexus 8L comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
