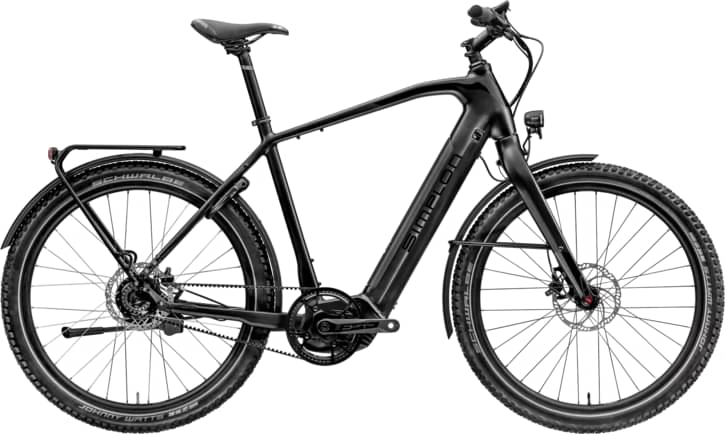

simplon Kagu Bosch CX 275 Men, NX1 Eagle 2022
2022 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch CX 275, Herren, Black/ Black, S
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
5.5Disc-FDT15*110-RDT12*142,JoWa60,Shi11
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
T8120(4/2K);PM7;PM6;203/180;CL/CL;DIV
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon BAR 620
Grips
Simplon "SOFT PUS"
Headset
Keine Steuersatz Option
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.66 mm | 1.67 mm | 1.68 mm |
| Front Center | 670 mm | 681 mm | 686 mm | 692 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 644 mm | 649 mm | 658 mm | 667 mm |
| Reach | 383 mm | 391 mm | 393 mm | 396 mm |
| Top Tube Length | 582 mm | 592 mm | 597 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1138 mm | 1149 mm | 1154 mm | 1160 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 741 mm | 778 mm | 815 mm | 850 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Kagu Bosch CX 275 Men, NX1 Eagle completes the Simplon E Kagu model. 31 e-bikes variations carry this model name so far. Take a sneak peek at all Simplon E Kagu e-bikes models from 2022, by clicking here.
Model range prices
Simplon Kagu Bosch UNI 275 8L 2022 is the most affordable e-bike of this model and has a price of 4140$. On the other hand, Simplon Kagu Bosch CX 275 Men, E14 SPEED (only in Switzerland) 2022, is the most expensive and costs 7325$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Simplon Kagu Bosch CX 275 Men, NX1 Eagle price was 4989$. If we compare this with the average Commuter e-bike cost we notice that the price is 94.2% more expensive.
Overview of components
Fork
The Kagu Bosch CX 275 Men, NX1 Eagle comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Simplon Kagu Bosch CX 275 Men, NX1 Eagle 2022, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kagu Bosch CX 275 Men, NX1 Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Kagu Bosch CX 275 Men, NX1 Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Kagu Bosch CX 275 Men, NX1 Eagle. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
