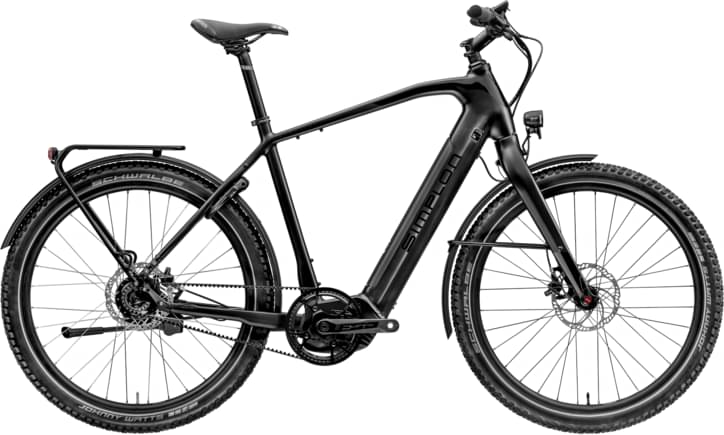

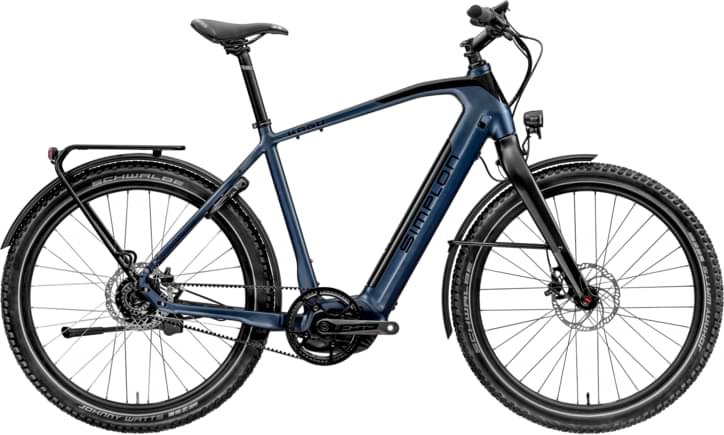

simplon Kagu Bosch CX 275 Men, Sram NX Eagle 2023
2023 E-bike
Estimate price |
6,078$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch CX 275, Man, Black Matt | Black Glossy, S (46)
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Johnny Watts 60-584
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Performance Line CX BES3 +Bosch Powertube 625 vertikal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.66 mm | 1.67 mm | 1.68 mm |
| Front Center | 670 mm | 681 mm | 686 mm | 692 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 644 mm | 649 mm | 658 mm | 667 mm |
| Reach | 383 mm | 391 mm | 393 mm | 396 mm |
| Top Tube Length | 582 mm | 592 mm | 597 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1138 mm | 1149 mm | 1154 mm | 1160 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 741 mm | 778 mm | 815 mm | 850 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Kagu Bosch CX 275 Men, Sram NX Eagle belongs to the Simplon E Kagu model. Simplon released 31 e-bikes variations of this model so far. You can easily view all of the Simplon E Kagu e-bikes models from 2023, here.
Model range prices
Simplon Kagu Bosch UNI 275 Inter-5R 2023 is the most economical model, with a starting price of 4458$. Simplon Kagu Bosch CX 275 B3; HE R14 2023 on the other hand costs 6688$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5626$. Doing a quick comparison, we notice that Kagu Bosch CX 275 Men, Sram NX Eagle price is 119% more expensive than the average cost of a Commuter e-bike.
Kagu Bosch CX 275 Men, Sram NX Eagle components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Kagu Bosch CX 275 Men, Sram NX Eagle e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Kagu Bosch CX 275 Men, Sram NX Eagle has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
