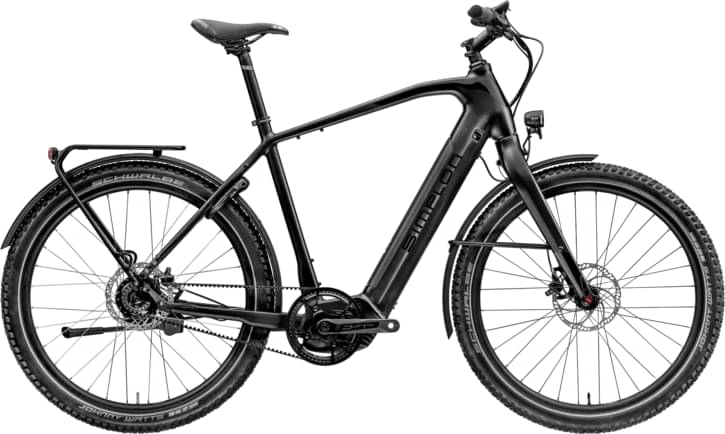

simplon Kagu Bosch CX 275 Men, TR 2022
2022 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch CX 275, Herren, Black/ Black, S
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
Enviolo TR with Gates Beltdrive for Bosch CX mechanical
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
5.5Disc-FDT15*110-EnvioloTR,JoWa60
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
T8120(4/2K);PM7;PM6;203/180;CL/6H;EN
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon BAR 620
Grips
Simplon "Trekking Nexus"
Headset
Keine Steuersatz Option
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.66 mm | 1.67 mm | 1.68 mm |
| Front Center | 670 mm | 681 mm | 686 mm | 692 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 644 mm | 649 mm | 658 mm | 667 mm |
| Reach | 383 mm | 391 mm | 393 mm | 396 mm |
| Top Tube Length | 582 mm | 592 mm | 597 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1138 mm | 1149 mm | 1154 mm | 1160 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 741 mm | 778 mm | 815 mm | 850 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Kagu Bosch CX 275 Men, TR belongs to the Simplon E Kagu model. 31 e-bikes variations carry this model name so far. You can easily view all of the Simplon E Kagu e-bikes models from 2022, here.
Model range prices
The most economical model, the Simplon Kagu Bosch UNI 275 8L 2022 has a starting price of 4140$. Simplon Kagu Bosch CX 275 Men, E14 SPEED (only in Switzerland) 2022 on the other hand is the most expensive at 7325$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Simplon Kagu Bosch CX 275 Men, TR price was 5308$. Comparing the average cost of a Commuter e-bike to this one, you will see that Kagu Bosch CX 275 Men, TR price is 106.62% more expensive.
Overview of components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Kagu Bosch CX 275 Men, TR e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kagu Bosch CX 275 Men, TR has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Simplon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
