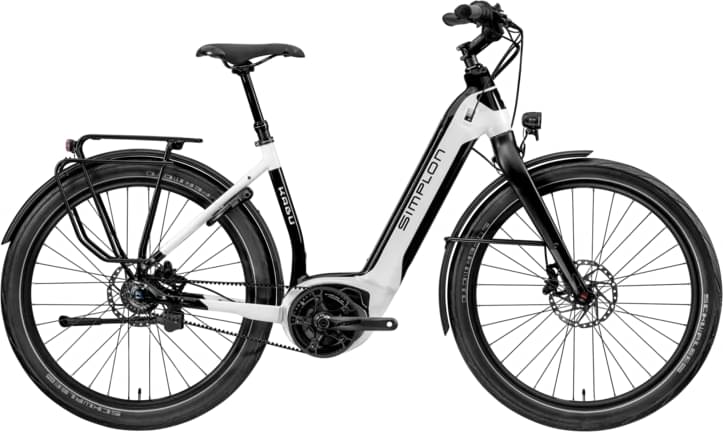

simplon Kagu Bosch UNI 275 NX1 Eagle 2022
2022 E-bike
Estimate price |
4,885$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch UNI 275, White/Black, XS
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
5.5Disc-FDT15*110-RDT12*142,JoWa60,Shi11
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
T8120(4/2K);PM7;PM6;203/180;CL/CL;DIV
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon BAR 620
Grips
Simplon "SOFT PUS"
Headset
Keine Steuersatz Option
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Active Line Plus + PT500 Adapt.
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.676 mm | 1.69 mm | 1.705 mm | 1.683 mm |
| Front Center | 673 mm | 679 mm | 684 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 657 mm | 666 mm | 675 mm | 675 mm |
| Reach | 392 mm | 394 mm | 396 mm | 401 mm |
| Top Tube Length | 605 mm | 610 mm | 615 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1159 mm | 1165 mm | 1170 mm | 1175 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Kagu Bosch UNI 275 NX1 Eagle completes the Simplon E Kagu model. There are 31 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Simplon Kagu Bosch UNI 275 8L 2022 has a starting price of 4140$. Simplon Kagu Bosch CX 275 Men, E14 SPEED (only in Switzerland) 2022 on the other hand is the most expensive at 7325$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 4458$. If we compare this with the average Commuter e-bike cost we notice that the price is 73.53% higher.
Overview of components
Fork
The Kagu Bosch UNI 275 NX1 Eagle comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Kagu Bosch UNI 275 NX1 Eagle 2022 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kagu Bosch UNI 275 NX1 Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
