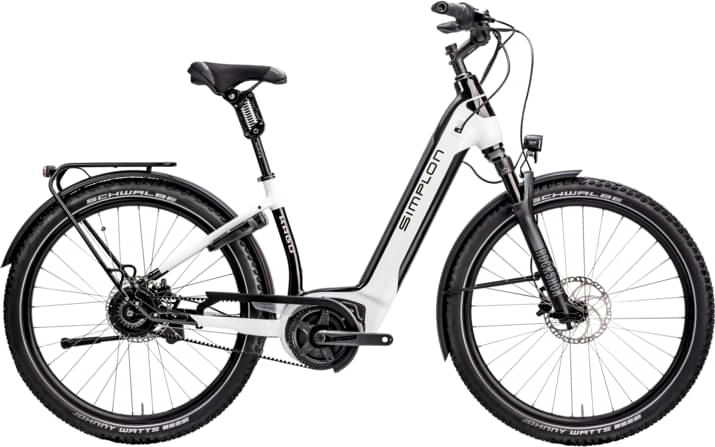

simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024
2024 E-bike
Estimate price |
5,118$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch Uni 275, Uni, Pearl White Glossy | Black Glossy,
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
Shim.Nexus8L Riemen (50/24/128)KU7
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Frame mount belt guard A08
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Super Moto 62-584
Tires
Schwalbe SUPER MOTO 27,5 x 2,4"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP10 L - Nexus
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Active Line Plus BES2+Bosch Powertube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.676 mm | 1.69 mm | 1.705 mm | 1.683 mm |
| Front Center | 673 mm | 679 mm | 684 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 657 mm | 666 mm | 675 mm | 675 mm |
| Reach | 392 mm | 394 mm | 396 mm | 401 mm |
| Top Tube Length | 605 mm | 610 mm | 615 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1159 mm | 1165 mm | 1170 mm | 1175 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Kagu Bosch Uni 275 Shimano Nexus 8L is part of the Simplon E Kagu model. 58 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024 is the cheapest e-bike model and costs 4658$. Simplon Kagu Pinion Men, Pinion E 1.12 2024 is the most expensive one and costs 8470$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Simplon Kagu Bosch Uni 275 Shimano Nexus 8L price was 4658$. Doing a quick comparison, we notice that Kagu Bosch Uni 275 Shimano Nexus 8L price is 81.32% higher than the average cost of a Commuter e-bike.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kagu Bosch Uni 275 Shimano Nexus 8L has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
