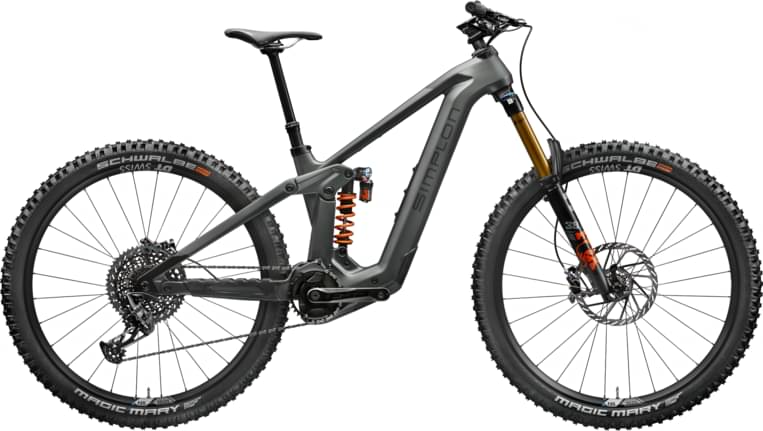

simplon Rapcon Pmax CX B3; GX1 Eagle 2023
2023 Mountain
Estimate price |
10,469$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 170mm -
Fork RockShox Lyrik
-
Groupset GX, FSA -
Suspension Full -
Battery Bosch Performance Line CX BES3 +Bosch Powertube 500 vertical -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

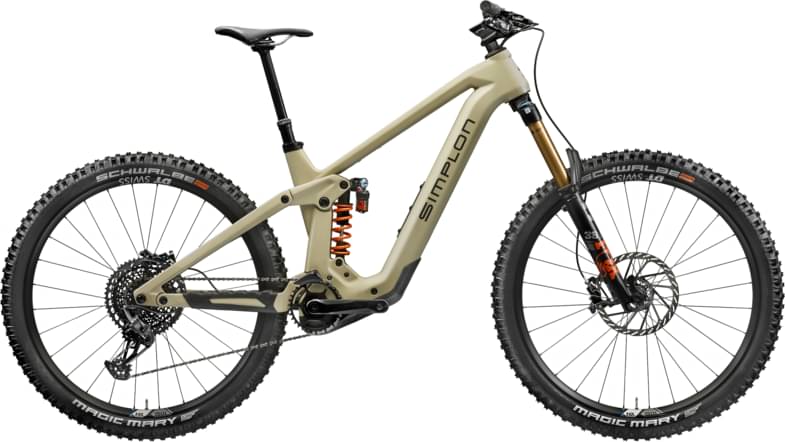

Rapcon Pmax CX, Sand Matt | Black Matt, S (37)
Suspension Fork
RockShox Lyrik 29 Select+, 150mm
Rear Shock
FOX DHX2 Factory 170mm, 2-Position, 400lb/in
Drivetrain
Rear Derailleur
SRAM GX1 Eagle
Shift Levers
SRAM GX1 Eagle
Crank
FSA CK-702 Carbon crankarms, 170mm
Wheels
Rims
Mavic E-Deemax-Schwalbe Nobby Nic 62-622
Tires
Schwalbe Nobby Nic 29x2.4"; Super Ground
Brakes
Brakes
SRAM GX1 Eagle
Cockpit
Stem
Zero III 100mm x 12°
Handlebar
Simplon CARBON RISER 800
Grips
Simplon Shark Lock
Headset
Acros AZA-639
Seat
Saddle
SLR X-Cross Superflow Width:L,Titan-Rail
Seatpost
BikeYoke Revive, 160mm, 31.6
Motor & Battery
Battery
Bosch Performance Line CX BES3 +Bosch Powertube 500 vertical
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 768 mm | 793 mm | 818 mm | 841 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 126 mm |
| Stack | 619 mm | 629 mm | 639 mm | 649 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 565 mm | 593 mm | 612 mm | 630 mm |
| Seat Tube Angle | 79.6 ° | 79.6 ° | 79.6 ° | 79.6 ° |
| Seat Tube Length | 370 mm | 395 mm | 420 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm | 130 mm |
| Chainstay Length | 442 mm | 445 mm | 450 mm | 452 mm |
| Wheelbase | 1208 mm | 1236 mm | 1266 mm | 1291 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 751 mm | 751 mm | 751 mm | 751 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rapcon Pmax CX B3; GX1 Eagle belongs to the Simplon Rapcon model. Simplon launched 30 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Simplon Rapcon Shimano Deore 12 2023 is the cheapest bike model and costs 5945$. Simplon Rapcon Pmax CX B3; XX1 Eagle AXS 2023 is the most expensive one and costs 11042$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 9555$. Doing a quick comparison, we notice that Rapcon Pmax CX B3; GX1 Eagle price is 165.49% more expensive than the average cost of an Enduro bike.
Overview of components
Fork
This bike has the RockShox Lyrik fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX DHX2 Factory 170mm model, with a travel of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Rapcon Pmax CX B3; GX1 Eagle are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Rapcon Pmax CX B3; GX1 Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Rapcon Pmax CX B3; GX1 Eagle. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
