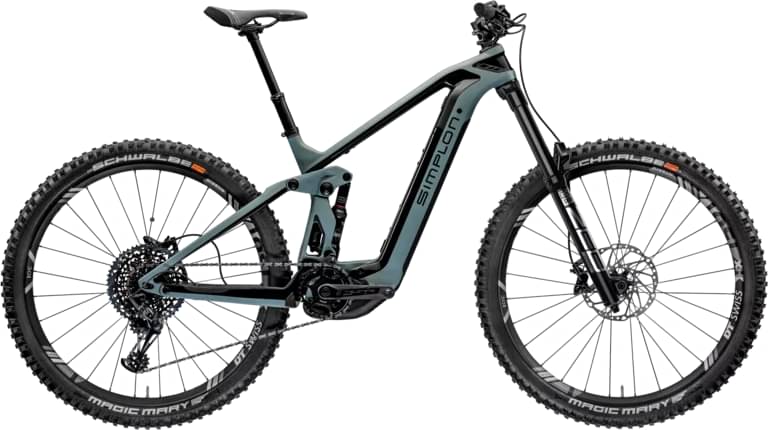

simplon Rapcon PMax XT-12 2022
2022 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Factory Float 38
-
Groupset XT, FSA -
Suspension Full, Electronic -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 38 FLOAT 29 FACTORY 150mm LV
Rear Shock
Fox Float LIVE VALVE Factory 205x60mm
Drivetrain
Shift Levers
Shimano XT-12
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
E-Deemax,29",30,Boost,Mary2.6-Shim12
Tires
Schwalbe MAGIC MARY,Super Gravity, 29 x 2,6"
Brakes
Brakes
SRAM Code;PM7;PM7;220/200;CL/CL;DIV
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon CARBON RISER 700 High
Grips
Simplon Shark Lock
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 732 mm | 754 mm | 791 mm | 827 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 112 mm | 110 mm | 111 mm |
| Stack | 611 mm | 616 mm | 629 mm | 643 mm |
| Reach | 427 mm | 447 mm | 477 mm | 507 mm |
| Top Tube Length | 578 mm | 599 mm | 632 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1197 mm | 1219 mm | 1256 mm | 1292 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 767 mm | 773 mm | 773 mm | 773 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rapcon PMax XT-12 is part of the Simplon E Rapcon model. 8 e-bikes variations carry this model name so far. You can easily view all of the Simplon E Rapcon e-bikes models from 2022, here.
Model range prices
Simplon Rapcon PMax GX1 Eagle 2022 is the most affordable e-bike of this model and has a price of 8175$. On the other hand, Simplon Rapcon PMax XX1 Eagle AXS 2022, is the most expensive and costs 9555$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Simplon Rapcon PMax XT-12 price was 8493$. If we compare this with the average Enduro e-bike cost we notice that the price is 77.49% higher.
Overview of components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Rapcon PMax XT-12 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Rapcon PMax XT-12 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Simplon Rapcon PMax XT-12 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
