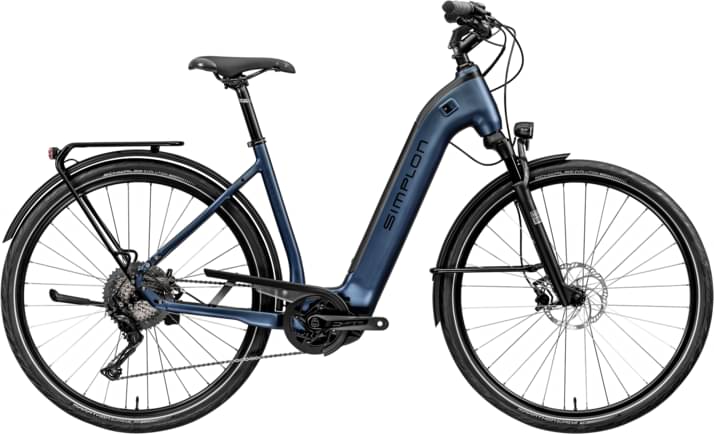

simplon Spotlight Bosch CX B3; UNI R14 2023
2023 E-bike
Estimate price |
7,095$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spotlight Bosch CX Uni BES3 Denim/Blk 40
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
Gear hub Rohloff R14;mechanical;belt drive
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Marathon Mondial 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon RISER 660
Grips
Simplon "Trekking Nexus"
Headset
Acros AZA-642
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Performance Line CX BES3 +Bosch Powertube 625 horizont
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.633 mm | 1.621 mm | 1.595 mm | 1.568 mm |
| Front Center | 673 mm | 675 mm | 691 mm | 702 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm | 75 mm |
| Stack | 645 mm | 645 mm | 654 mm | 654 mm |
| Reach | 395 mm | 398 mm | 410 mm | 417 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 170 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1138 mm | 1140 mm | 1156 mm | 1167 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 379 mm | 379 mm | 379 mm | 379 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Spotlight Bosch CX B3; UNI R14 is part of the Simplon E Spotlight model. There are 18 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Simplon Spotlight Mahle Men, Deore-30 Disc 2023 is the cheapest e-bike model and costs 4565$. Simplon Spotlight Bosch CX B3; UNI R14 2023 is the most expensive one and costs 6476$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6476$. Comparing the average cost of a Commuter e-bike to this one, you will see that Spotlight Bosch CX B3; UNI R14 price is 152.08% more expensive.
Spotlight Bosch CX B3; UNI R14 components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Simplon Spotlight Bosch CX B3; UNI R14 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Spotlight Bosch CX B3; UNI R14 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Spotlight Bosch CX B3; UNI R14 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
