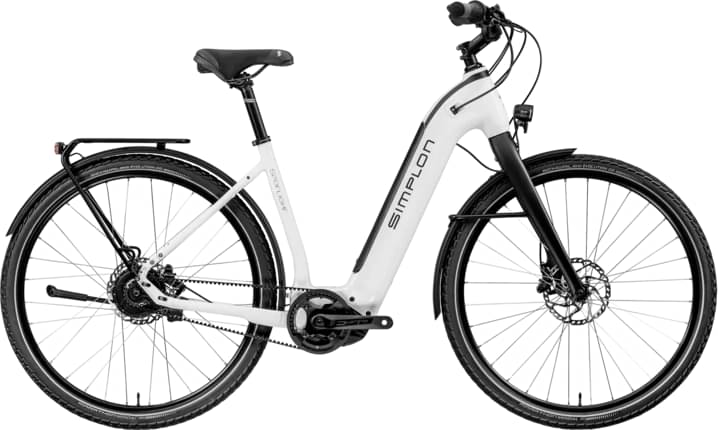

simplon Spotlight Bosch CX Uni, XT-11 LG 2022
2022 E-bike
Estimate price |
5,932$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spotlight Bosch CX, Uni, White/Black, 45
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
Shimano Deore-XT 11, Linkglide
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5Disc-FDT5*100-RDT5*135,Mondi50,Shi11
Brakes
Brakes
T8120(4/2K);PM6;PM6;180/180;CL/CL;DIV
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon BAR 620
Grips
Simplon "SOFT PUS"
Headset
Keine Steuersatz Option
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.633 mm | 1.621 mm | 1.595 mm | 1.568 mm |
| Front Center | 673 mm | 675 mm | 691 mm | 702 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm | 75 mm |
| Stack | 645 mm | 645 mm | 654 mm | 654 mm |
| Reach | 395 mm | 398 mm | 410 mm | 417 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 170 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1138 mm | 1140 mm | 1156 mm | 1167 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 379 mm | 379 mm | 379 mm | 379 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Spotlight Bosch CX Uni, XT-11 LG is part of the Simplon E Spotlight model. There are 18 e-bikes that carry this model name. You can easily view all of the Simplon E Spotlight e-bikes models from 2022, here.
Model range prices
The most economical model, the Simplon Spotlight Mahle Men, Deore-30 Disc 2022 has a starting price of 4565$. Simplon Spotlight Bosch CX Uni, E14 2022 on the other hand is the most expensive at 6688$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Simplon Spotlight Bosch CX Uni, XT-11 LG price was 5414$. Comparing this to the average Commuter e-bike price, we see that the price is 110.74% higher.
Spotlight Bosch CX Uni, XT-11 LG components
Fork
Simplon Spotlight Bosch CX Uni, XT-11 LG 2022 e-bike is equipped with the RockShox Paragon Gold RL fork, and has 65mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Spotlight Bosch CX Uni, XT-11 LG model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Spotlight Bosch CX Uni, XT-11 LG is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
