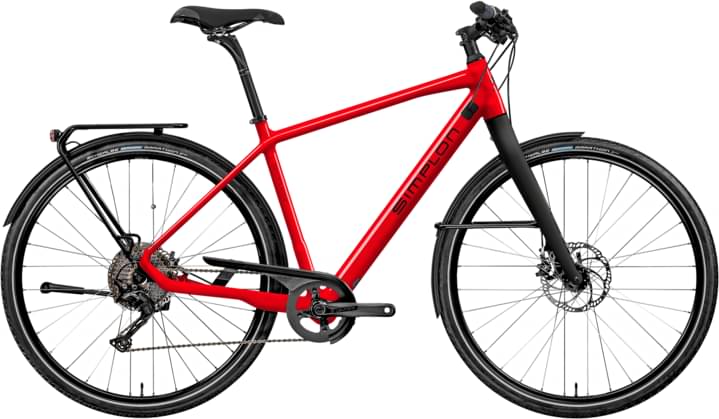

simplon Spotlight Mahle Men, ETD, Deore-30 Disc 2022
2022 E-bike
Estimate price |
4,071$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset Deore -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery Mahle EbikeMotion X20 236Wh ONE Remote -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spotlight Mahle, Men, Cosmic Red Glossy/ Black Matt, 460
Suspension Fork
Rockshox Recon Gold RL 65mm
Drivetrain
Shift Levers
Shimano Deore-30 Disc
Crank
just standard crank available
Bottom Bracket
BSA, threaded
Chain Guide
Frame mount belt guard A08,48T.
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Mavic Allroad-Schwalbe Smart Sam 54-622
Tires
Schwalbe SMART SAM 28 x 2,1"
Brakes
Brakes
Magura CT;2-Kolben (pistons);180mm;180mm
Cockpit
Stem
Simplon ZERO II 80mm x 17°
Handlebar
Simplon CX-4 COMFORT
Grips
Simplon "SOFT PUS"
Headset
Acros AZX-220
Seat
Saddle
Selle Italia S5 GEL Superflow
Seatpost
Simplon Lite ROD 3, 27,2 x 350mm
Motor & Battery
Motor
Mahle EbikeMotion X20 236Wh ONE Remote
Battery
Mahle EbikeMotion X20 236Wh ONE Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.59 mm | 1.59 mm | 1.58 mm |
| Front Center | 652 mm | 662 mm | 677 mm | 692 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 76 mm | 73 mm | 68 mm | 66 mm |
| Stack | 602 mm | 623 mm | 644 mm | 665 mm |
| Reach | 386 mm | 393 mm | 406 mm | 420 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1099 mm | 1109 mm | 1124 mm | 1139 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 742 mm | 778 mm | 820 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spotlight Mahle Men, ETD, Deore-30 Disc completes the Simplon E Spotlight model. 19 e-bikes variations carry this model name so far. Take a sneak peek at all Simplon E Spotlight e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Simplon Spotlight Mahle Men, ETD, Deore-30 Disc 2022 has a starting price of 3705$. Simplon Spotlight Bosch CX Uni, E14 2022 on the other hand is the most expensive at 6670$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3705$. Doing a quick comparison, we notice that Spotlight Mahle Men, ETD, Deore-30 Disc price is 44.22% higher than the average cost of a Commuter e-bike.
Spotlight Mahle Men, ETD, Deore-30 Disc components
Fork
Simplon Spotlight Mahle Men, ETD, Deore-30 Disc 2022 e-bike is equipped with the RockShox Recon Gold RL fork, and has 65mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Spotlight Mahle Men, ETD, Deore-30 Disc model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spotlight Mahle Men, ETD, Deore-30 Disc comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Spotlight Mahle Men, ETD, Deore-30 Disc comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
