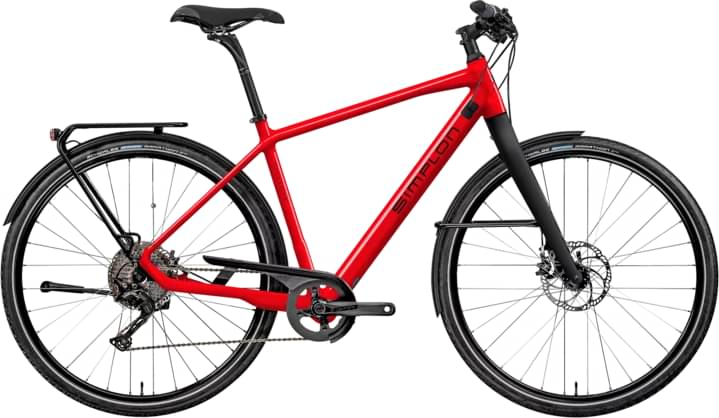

simplon Spotlight Mahle Men, XT-30 Disc 2022
2022 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery Mahle EbikeMotion X20 236Wh ONE Remote -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spotlight Mahle, Men, Cosmic Red Glossy/ Black Matt, 460
Suspension Fork
Rockshox Recon Gold RL 65mm
Drivetrain
Shift Levers
Shimano XT-30 Disc
Crank
just standard crank available
Bottom Bracket
BSA, threaded
Chain Guide
Frame mount belt guard A08,48T.
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Mavic Allroad-Schwalbe Smart Sam 54-622
Tires
Schwalbe SMART SAM 28 x 2,1"
Brakes
Brakes
Shimano T6000;2-Kolben (pistons);180mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Acros AZX-203
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Mahle EbikeMotion X20 236Wh ONE Remote
Battery
Mahle EbikeMotion X20 236Wh ONE Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.55 mm | 1.55 mm |
| Front Center | 650 | 660 mm | 675 mm | 690 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 77 mm | 74 mm | 71 mm | 68 mm |
| Stack | 593 mm | 614 mm | 635 mm | 656 mm |
| Reach | 388 mm | 396 mm | 409 mm | 423 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1092 mm | 1102 mm | 1117 mm | 1132 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 807 mm | 843 mm | 885 mm | 926 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spotlight Mahle Men, XT-30 Disc completes the Simplon E Spotlight model. There are 18 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Simplon Spotlight Mahle Men, Deore-30 Disc 2022 is the most affordable e-bike of this model and has a price of 4565$. On the other hand, Simplon Spotlight Bosch CX Uni, E14 2022, is the most expensive and costs 6688$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Simplon released this model in 2022, its price was 4777$. Doing a quick comparison, we notice that Spotlight Mahle Men, XT-30 Disc price is 85.95% higher than the average cost of a Commuter e-bike.
Overview of components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 65mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Spotlight Mahle Men, XT-30 Disc model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Spotlight Mahle Men, XT-30 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Simplon Spotlight Mahle Men, XT-30 Disc e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
