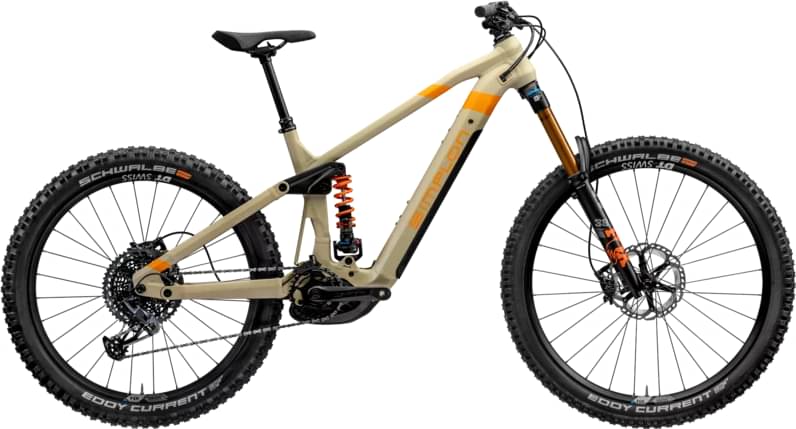

simplon Steamer Pmax XX1 Eagle AXS 2022
2022 E-bike
Estimate price |
8,840$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Factory Float 38
-
Groupset XX1 Eagle AXS, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 38 FLOAT FACTORY 29" 170mm
Rear Shock
Rock Shox Super Deluxe SELECT+
Drivetrain
Shift Levers
SRAM XX1 Eagle AXS
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
HX1501,29",30,MY22,BST-Mary2.6-SRAM12
Tires
Schwalbe MAGIC MARY,Super Gravity, 29 x 2,6"
Brakes
Brakes
SRAM Code;PM7;PM7;220/200;CL/CL;DIV
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon CARBON RISER 700 High
Grips
Simplon Shark Lock
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.31 mm | 1.26 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 777 mm | 809 mm | 839 mm | 864 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 129 mm | 129 mm | 129 mm |
| Stack | 622 mm | 629 mm | 640 mm | 649 mm |
| Reach | 456 mm | 481 mm | 506 mm | 526 mm |
| Top Tube Length | 571 mm | 598 mm | 625 mm | 647 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° | 79 ° |
| Seat Tube Length | 385 mm | 410 mm | 435 mm | 460 mm |
| Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° | 64.7 ° |
| Head Tube Length | 108 mm | 116 mm | 128 mm | 139 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1225 mm | 1257 mm | 1287 mm | 1312 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 760 mm | 760 mm | 760 mm | 760 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Steamer Pmax XX1 Eagle AXS is part of the Simplon E Steamer model. Simplon released 5 e-bikes variations of this model so far. Take a sneak peek at all Simplon E Steamer e-bikes models from 2022, by clicking here.
Model range prices
Simplon Steamer Pmax Deore-12 2022 is the cheapest e-bike model and costs 6157$. Simplon Steamer Pmax XX1 Eagle AXS 2022 is the most expensive one and costs 8069$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 8069$. If we compare this with the average Enduro e-bike cost we notice that the price is 68.63% more expensive.
Steamer Pmax XX1 Eagle AXS components
Fork
The Steamer Pmax XX1 Eagle AXS comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Steamer Pmax XX1 Eagle AXS 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Steamer Pmax XX1 Eagle AXS comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Simplon Steamer Pmax XX1 Eagle AXS includes a dropper post. Therefore, climbing or descending will be a breeze.
