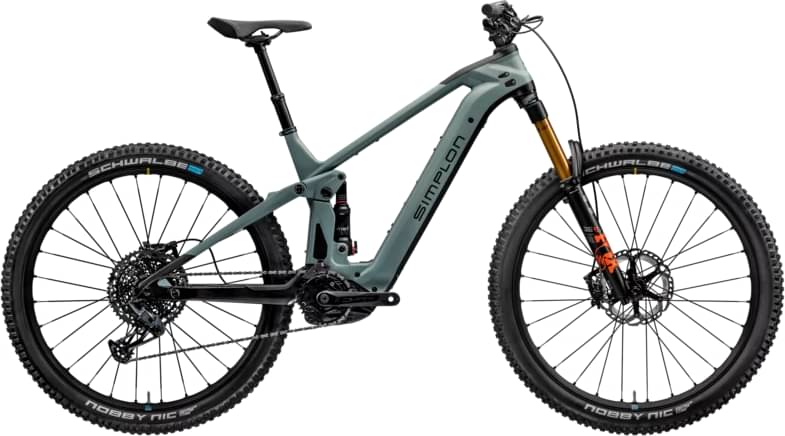

simplon Stomp Pmax Deore-10 LG 2022
2022 E-bike
Estimate price |
8,142$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, FSA -
Suspension Full -
Battery Bosch Performance Line CX + Power T. 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stomp Pmax, cosmic red/black matt, S/380
Suspension Fork
35 Gold RL 140
Rear Shock
Rock Shox Deluxe SELECT+ RT
Drivetrain
Rear Derailleur
Shimano Deore-10, Linkglide
Shift Levers
Shimano Deore-10, Linkglide
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
HX1501,29",MY22,BST-J.Watts2.35-Shim11
Tires
Schwalbe JOHNY WATTS 29 x 2,35"
Brakes
Brakes
SRAM Code;PM6;PM7;200/200;CL/CL;DIV
Cockpit
Stem
Stem E-MTB, 50mm, Barbore 35mm
Handlebar
Simplon Riser Alu 800mm
Grips
Simplon Shark Lock
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Battery
Bosch Performance Line CX + Power T. 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 757 mm | 768 mm | 799 mm | 833 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm |
| Trail | 119 mm | 111 mm | 111 mm | 111 mm |
| Stack | 606.8 mm | 612.4 mm | 627 mm | 647 mm |
| Reach | 427 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 568 mm | 589 mm | 618 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 65 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 111.5 mm | 111.5 mm | 127.5 mm | 149.4 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1207 mm | 1218 mm | 1249 mm | 1283 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 755 mm | 755 mm | 755 mm | 755 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Stomp Pmax Deore-10 LG is a Simplon E Stomp model. 5 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Simplon Stomp Pmax Deore-10 LG 2022 is the cheapest e-bike model and costs 7538$. Simplon Stomp Pmax E14 2022 is the most expensive one and costs 9024$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Simplon released this model in 2022, its price was 7538$. If we compare this with the average Trail e-bike cost we notice that the price is 124.01% more expensive.
Stomp Pmax Deore-10 LG components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Stomp Pmax Deore-10 LG e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Simplon Stomp Pmax Deore-10 LG includes a dropper post. Therefore, climbing or descending will be a breeze.
