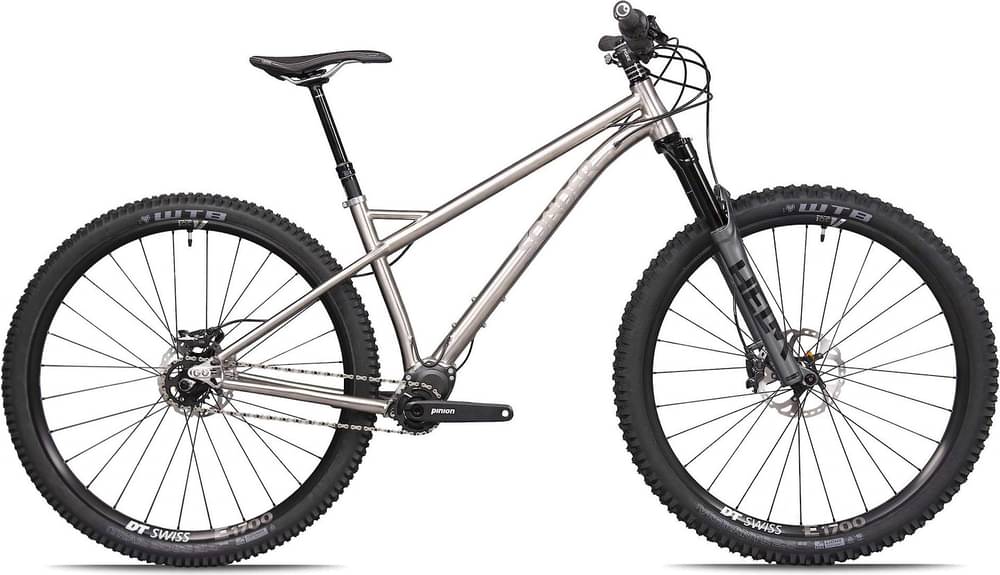

Sonder Signal Ti Pinion 2021
2021 Mountain
Estimate price |
4,799$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 130mm -
Fork Cane Creek HELM
-
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
None
Drivetrain
Rear Derailleur
None
Front Derailleur
None
Shift Levers
Pinion Rotary, 12-speed
Cassette
Pinion rear chainring, 30 tooth
Crank
Pinion Forged, 170mm length
Bottom Bracket
Pinion Gearbox
Chain
Pinion X1
Chain Guide
None
Pedals
None
Wheels
Front Hub
Love Mud Hobo wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Love Mud Hobo wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Love Mud Hobo wheelset
Spokes
Love Mud Hobo wheelset
Tires
Front: WTB Vigilante, Light/High Grip, 29" x 2.5", Rear: WTB Trail Boss, Tough/Fast Rolling, 29" x 2.4"
Brakes
Brakes
SRAM Guide R, 4-piston, Avid CenterLine rotors (180mm front, 160mm rear)
Brake Levers
SRAM Guide R
Cockpit
Stem
Love Mud Piskie, 35mm length, 31.8mm bar clamp
Handlebar
Love Mud Aspect Riser, 31.8mm clamp diameter
Grips
WTB Wafel
Headset
FSA Orbit C-40-ACB, IS42/IS52
Seat
Saddle
Sonder Abode
Seatpost
RockShox Reverb dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.401 mm | 1.344 mm | 1.287 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 710 mm | 732 mm | 761 mm | 793 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 601 mm | 606 mm | 615 mm | 624 mm |
| Reach | 412.5 mm | 432.5 mm | 457.5 mm | 485 mm |
| Top Tube Length | 585 mm | 606 mm | 634 mm | 664 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 425 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1127 mm | 1149 mm | 1183 mm | 1220 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 730 mm | 738 mm | 760 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Signal Ti Pinion belongs to the Sonder Signal model. There are 7 bikes that carry this model name. You can easily view all of the Sonder Signal bikes models from 2021, here.
Model range prices
The most economical model, the Sonder Signal St SX Eagle 2021 has a starting price of 1449$. Sonder Signal Ti Pinion 2021 on the other hand is the most expensive at 4799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4799$. Comparing this to the average Trail bike price, we see that the price is 73.75% higher.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.4 kg (27.34 lbs), the Signal Ti Pinion model is slightly lighter than average. To sum up, it’s 4.68% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Signal Ti Pinion comes factory-installed with the Cane Creek HELM fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Sonder Signal Ti Pinion 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Sonder Signal Ti Pinion is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Sonder model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
